Duplex Receptacle Outlet, Commercial Specification Grade, 20 Amp, 250 Volt – Electrical Distributor Lighting Solutions

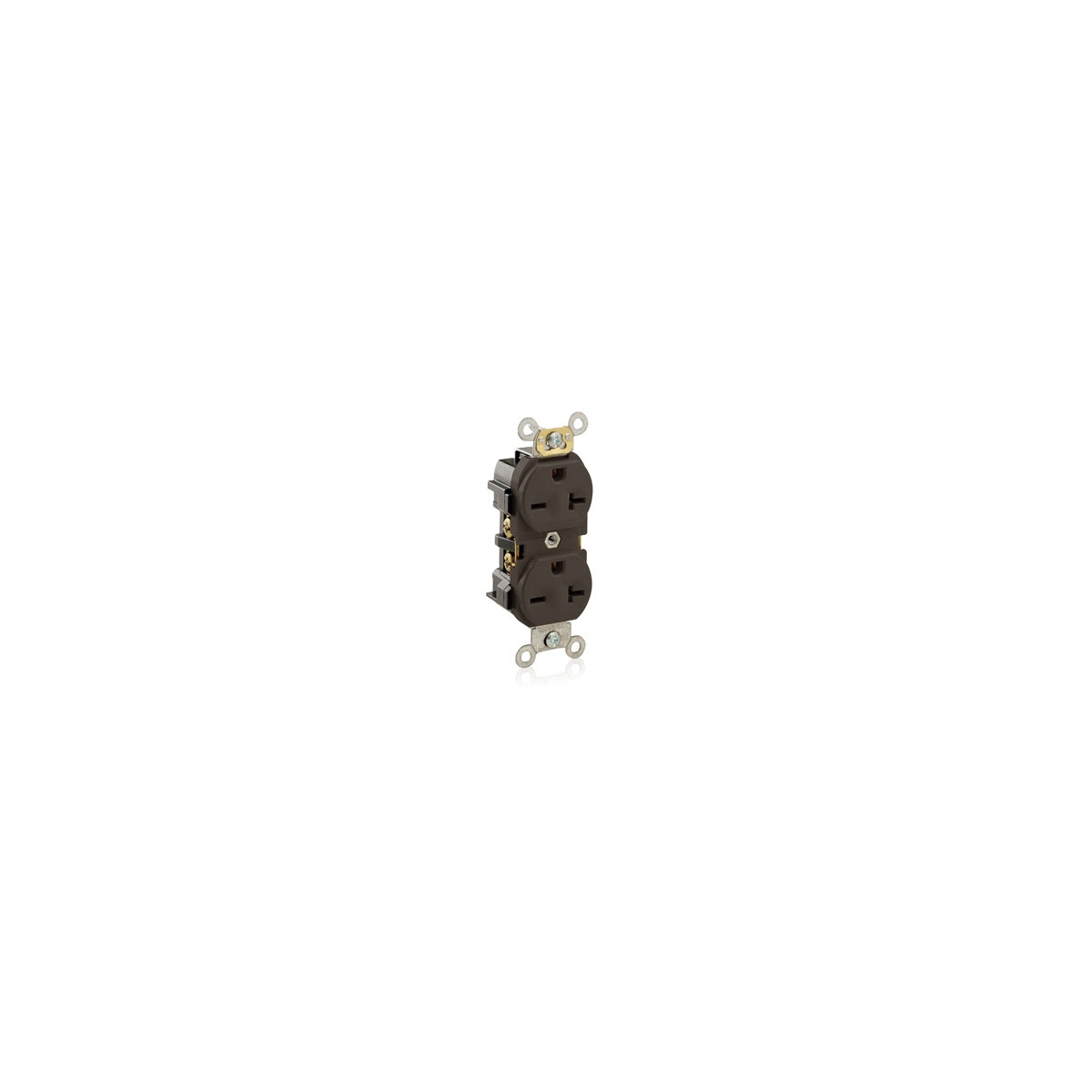

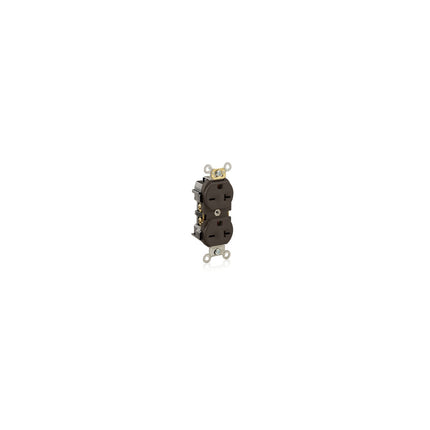

This Leviton Duplex Receptacle Outlet is a commercial specification grade device designed for demanding electrical applications in hotels, schools, hospitals, and commercial office buildings. It supports 20 amperes at 250 volts and features a NEMA 6-20R configuration with 2 poles and 3 wires. Suitable for use by electrical distributors and switchgear suppliers, it offers versatile back or side wiring options and a self-grounding design for enhanced safety and reliability in lighting solutions and wire and cable installations.

Specifications

• Manufacturer: Leviton
• Manufacturer Part #: 5824
• Device Type: Duplex Receptacle Outlet
• Grade: Commercial Specification
• Amperage: 20 amperes
• Voltage: 250 volts
• NEMA Configuration: 6-20R
• Number of Poles: 2
• Number of Wires: 3
• Grounding: Self-Grounding
• Body Material: Nylon
• Face Material: Nylon
• Color: Brown
• Dielectric Strength: 2000 volts
• Horsepower Rating: 2 horse power
• Operating Temperature: -40 degrees Celsius
• Flammability Class: Rated V-2 Per UL 94
• Product Weight: 0.1880 lbs

Features

• Heavy-duty construction designed to withstand demanding environments
• Indented face for safety and durability
• Back or side wiring accepts up to #10 AWG copper or copper-clad wire
• Self-grounding for enhanced electrical safety
• Commercial grade suitable for use in institutional and commercial settings
• Rated for 2000 volts dielectric strength and 2 horsepower motor loads
• Flame retardant nylon body and face materials
• Operating temperature range down to -40°C for versatile installation environments

Downloads & Links

• Instruction Sheet
