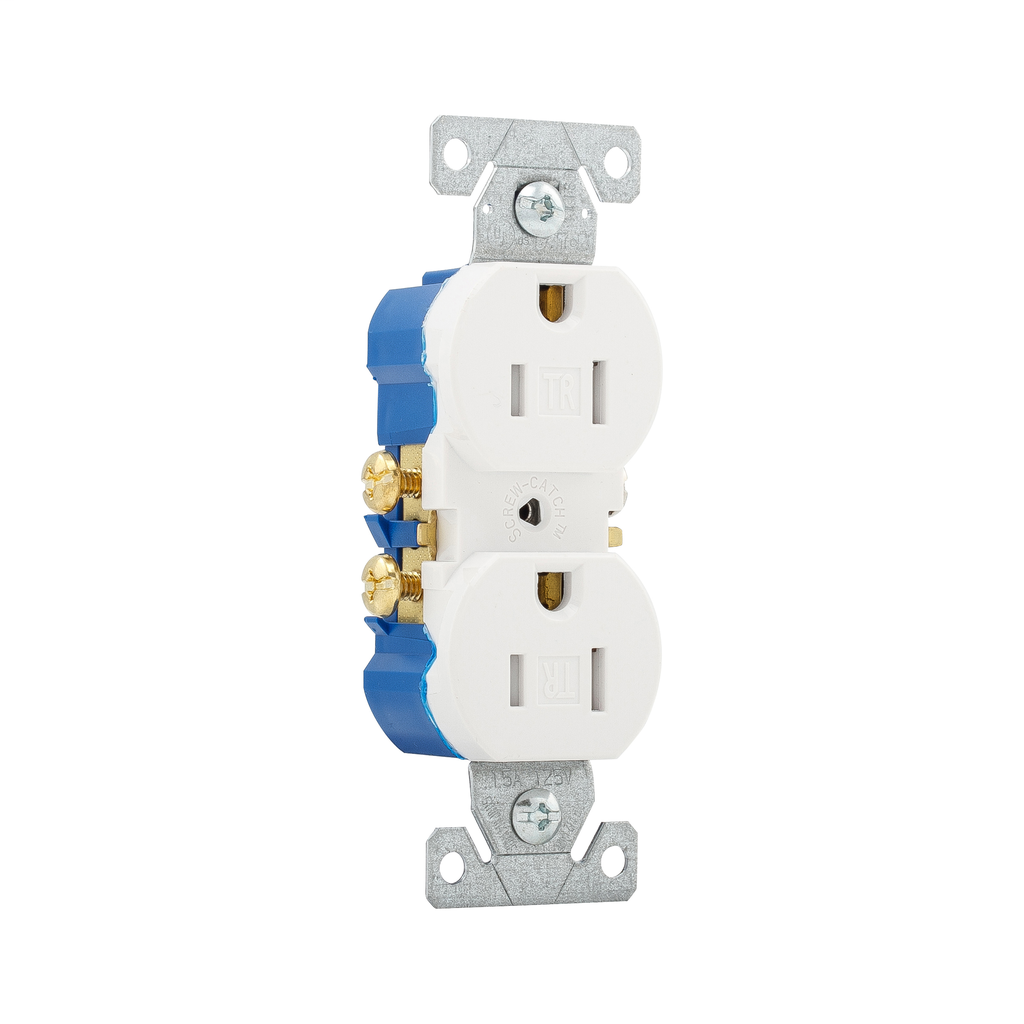

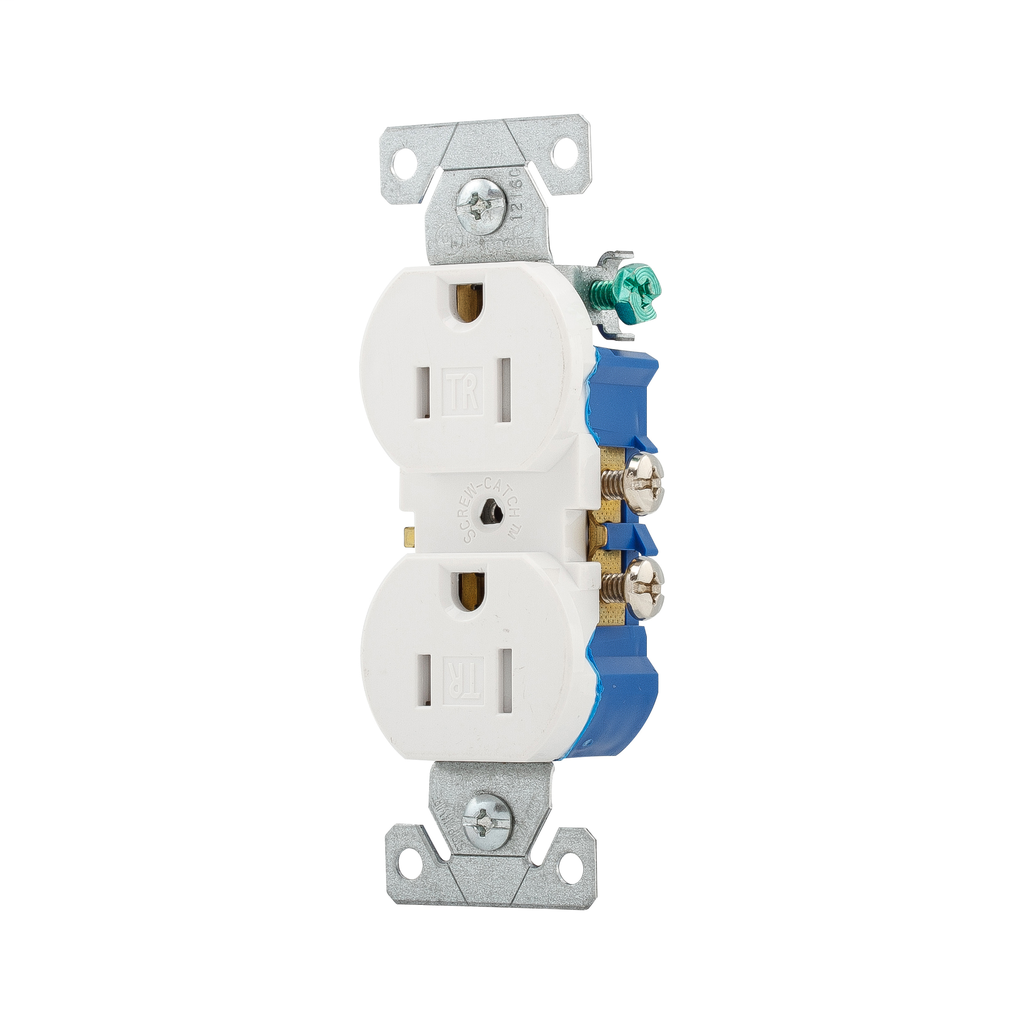

Duplex Receptacle - Tamper Resistant Electrical Outlet

The Duplex Receptacle by Cooper Wiring Devices is a 2-pole, 3-wire grounding electrical outlet designed for residential and commercial wiring applications. It provides tamper resistant protection to prevent the insertion of foreign objects, ensuring compliance with 2017 NEC Article 406.12. Suitable for use by electrical distributors and lighting solutions providers, this receptacle supports 15 amperes at 125 volts AC, making it ideal for standard wire and cable installations requiring safe and reliable power connections.

Specifications

• Manufacturer: Cooper Wiring Devices
• Manufacturer Part #: TR270W
• Amperage: 15 amperes
• Poles: 2
• Wires: 3
• Material: Thermoplastic
• Color: White
• Product Weight: 0.1300 lbs
• Voltage Rating: 125V/AC
• Wiring Type: Side and push wire terminals (accepts up to #10 AWG solid or stranded wire)
• Terminal Accommodation: #14 - #10 AWG
• Dielectric Voltage: Withstands 2000V per UL498
• Temperature Rating: -20ºC to 60ºC (-4ºF to 140ºF)
• UL and cULus Listed to UL498, file no. E15058; NOM certified

Features

• Built-in UL listed tamper resistant safety shutter system prevents insertion of foreign objects
• Durable impact-resistant thermoplastic face and back body for long-term use
• Extra-long and extra-wide mounting straps for secure installation
• Terminal screws backed out and ready for wiring, with tri-combo screws for installation flexibility
• Push-in terminals accept #14 AWG solid wire for quick installation
• Side wire terminals accept up to #10 AWG solid or stranded wire
• Double-wipe ground contacts ensure long-term ground retention
• Complies with 2017 and 2020 NEC requirements for tamper resistant receptacles
