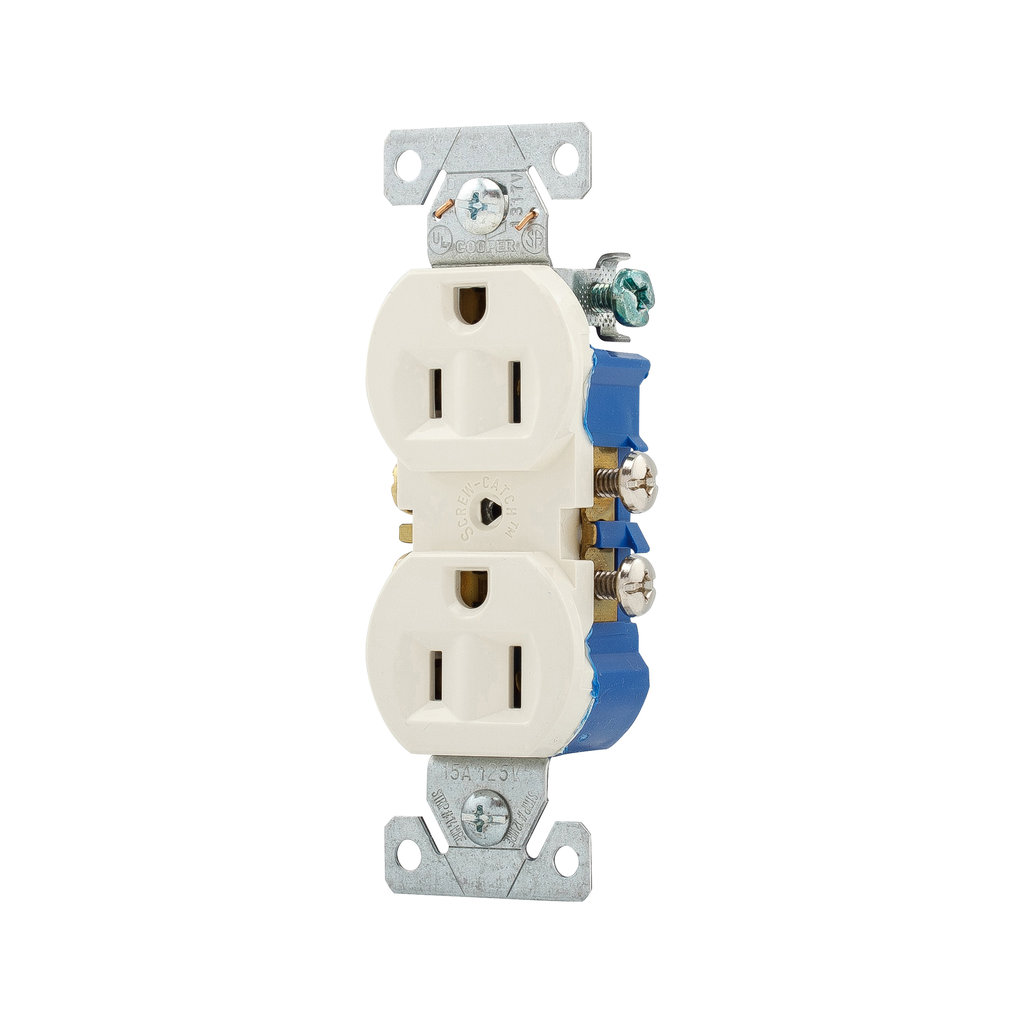

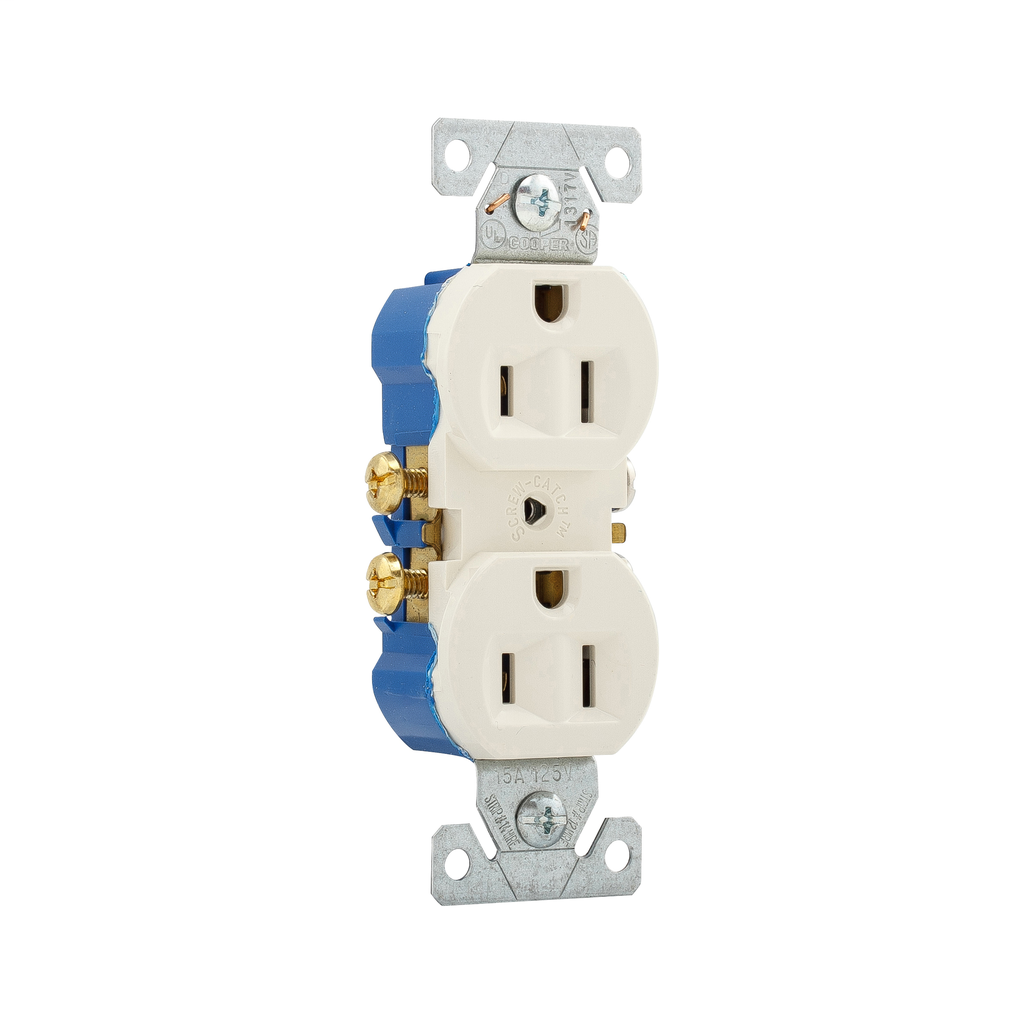

The Duplex Receptacle by Cooper Wiring Devices is a residential-grade, 2-pole, 3-wire grounding electrical outlet designed for 15 amperes at 125 volts AC. It is ideal for general-purpose wiring applications where tamper-resistant receptacles are not required, providing reliable power distribution for lighting solutions, wire and cable installations, and switchgear supplier needs.

Specifications

• Amperage: 15 amperes
• Voltage: 125V AC
• Number of Poles: 2
• Number of Wires: 3
• Material: Thermoplastic
• Color: Light Almond
• Product Weight: 0.1220 lbs
• Manufacturer Part #: 270-9LA
• UPC: 032664582868

Features

• Complies with 2017 NEC Article 406.12 for installations where tamper-resistant receptacles are not required
• Durable impact-resistant thermoplastic face and back body for enhanced longevity
• Terminal screws are backed out and ready for wiring
• Extra-long and extra-wide mounting straps for secure installation
• Side-wire terminals accept up to #10 solid or stranded wire

Downloads & Links

• Spec Sheet
