Duplex Connector 3/8", Die Cast Zinc
SKU: #390871
Part: #630-DC2
UPC: 781747156303
Duplex Connector 3/8", Die Cast Zinc
SKU: #390871
Part: #630-DC2
UPC: 781747156303
Description

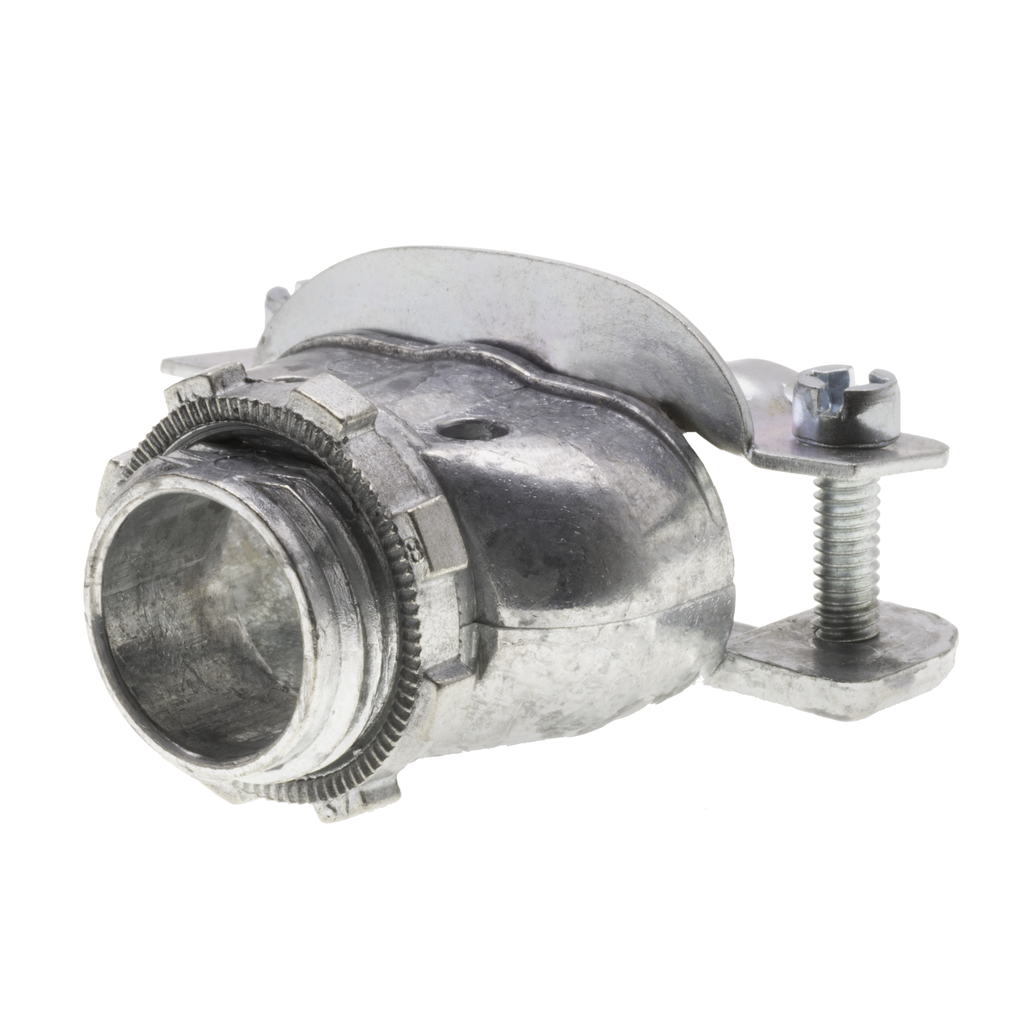

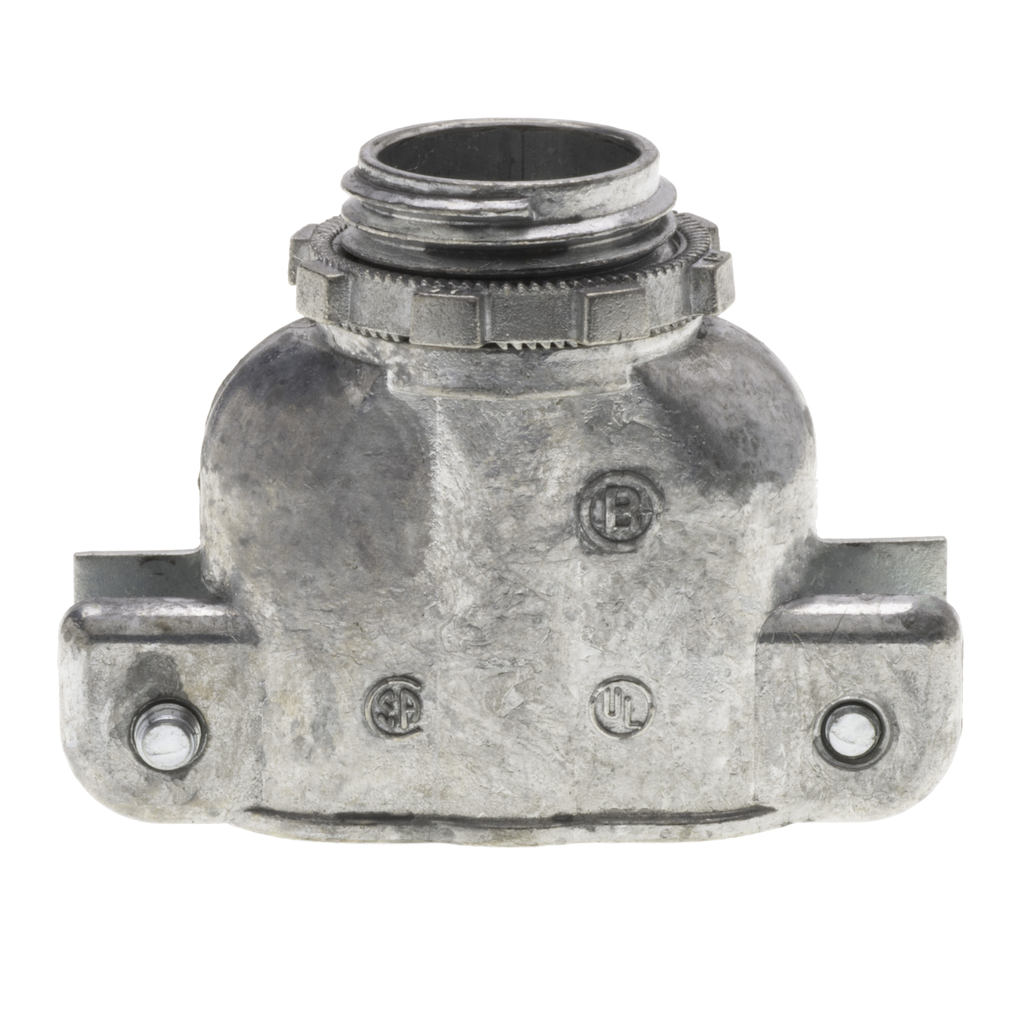

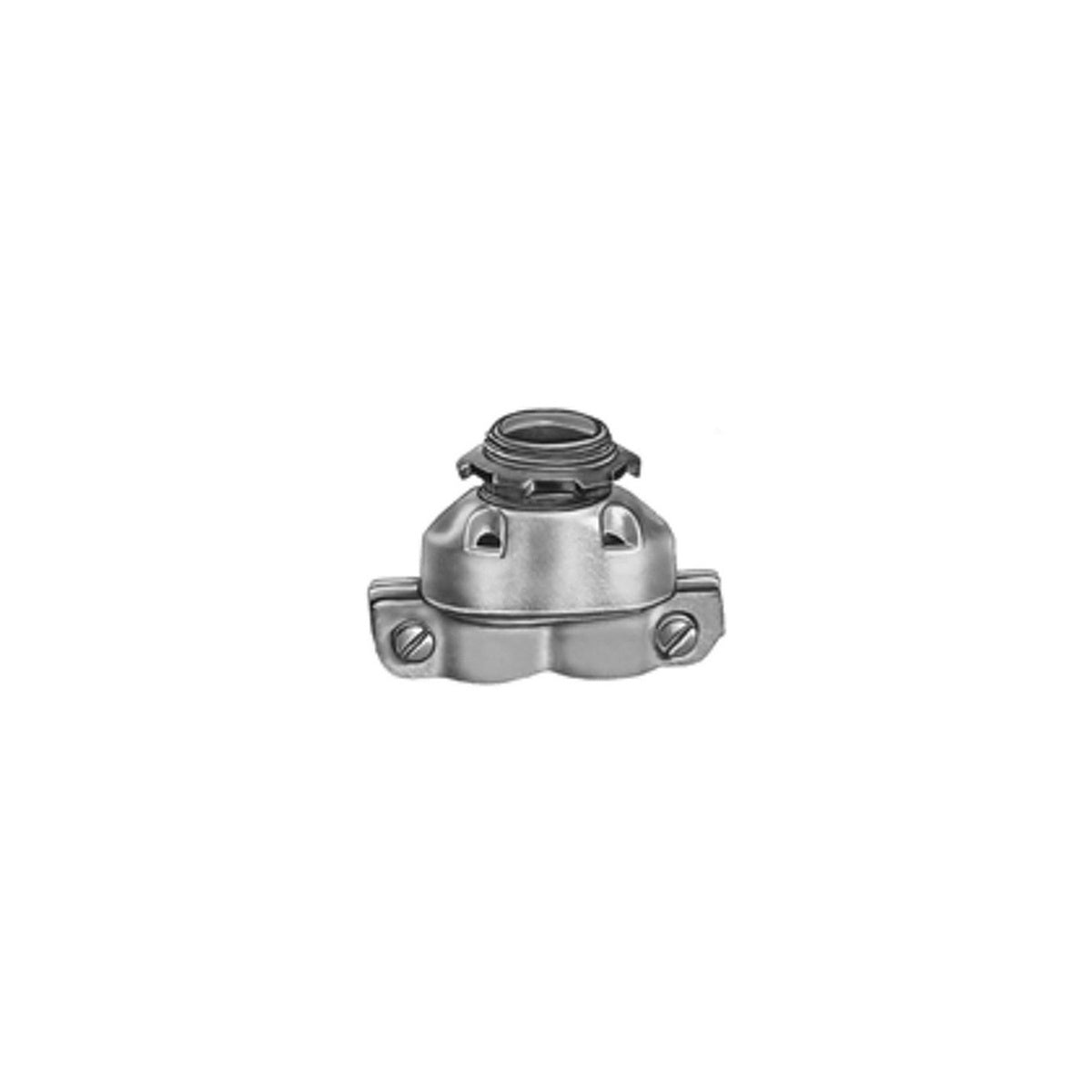

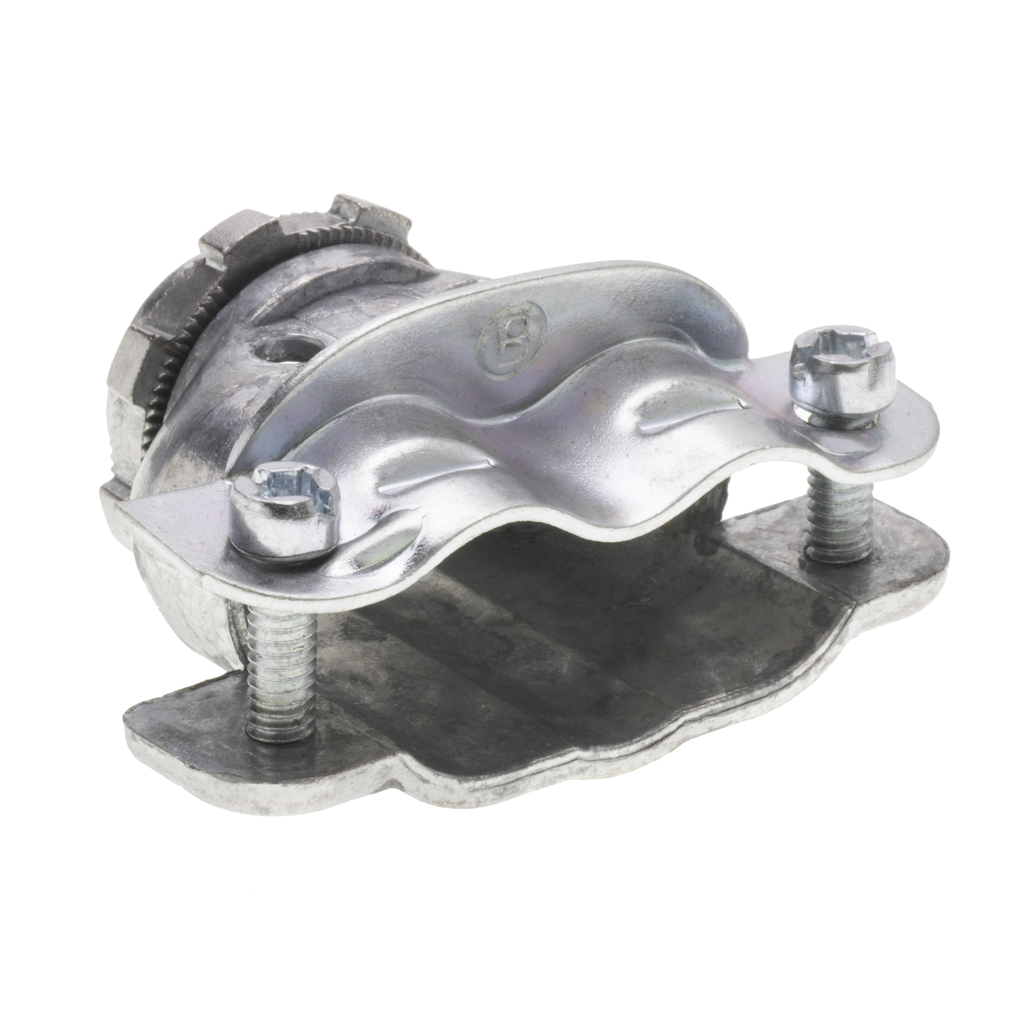

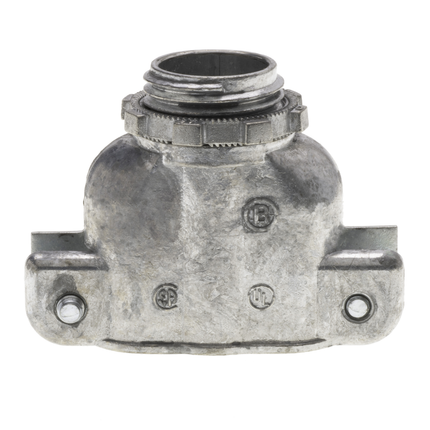

Duplex Connector 3/8", Die Cast Zinc – Flexible Metal Conduit Fitting
The Bridgeport Fittings Duplex Connector 3/8", made from die cast zinc, is a strap-type fitting designed for connecting 3/8" flexible metal conduit (FMC) or armored cable (AC) ranging from 14/2 to 10/3 conductor sizes to electrical boxes or enclosures. This product is suitable for electrical distributors and switchgear suppliers requiring reliable conduit connections in lighting solutions and wire and cable installations.
Specifications
- Manufacturer Part #: 630-DC2
- Material: Zinc Die Cast
- Finish: Ball burnished, mirror smooth
- Trade Size: 3/8"
- Conductor Range: 14/2 to 10/3 (.430" to .610")
- Dimensions: Length 2.1875 in, Width 1.625 in, Depth 0.61 in
- Number of Conductors: 1 Cable
- Order Minimum: 1
- Product Weight: 0.1155 lbs
- Made in USA
- Country of Origin: United States
- UL File Number: E20534
- UL Standard: UL-514B
- Federal Specification Number: A-A-50552
- NEMA Standard: FB-1
Features
- Strap-type fitting for secure connection of flexible metal conduit or armored cable to boxes or enclosures using a single knockout.
- Die cast zinc construction provides excellent corrosion resistance for harsh environments.
- Easy installation by inserting conduit or cable and tightening the two-screw strap for a secure fit.
- Ball burnished finish ensures a smooth, durable surface.
- Compatible with 3/8" flexible metal conduit and installs into a 1/2" knockout.
