Dual Rated Lug Two 350-6 (2) Mtg Holes
SKU: #303443
Part: #2-350T
UPC: 662381001238
Dual Rated Lug Two 350-6 (2) Mtg Holes
SKU: #303443
Part: #2-350T
UPC: 662381001238
Total Price: $21.80 per each Sold in increments of 1 each
Description

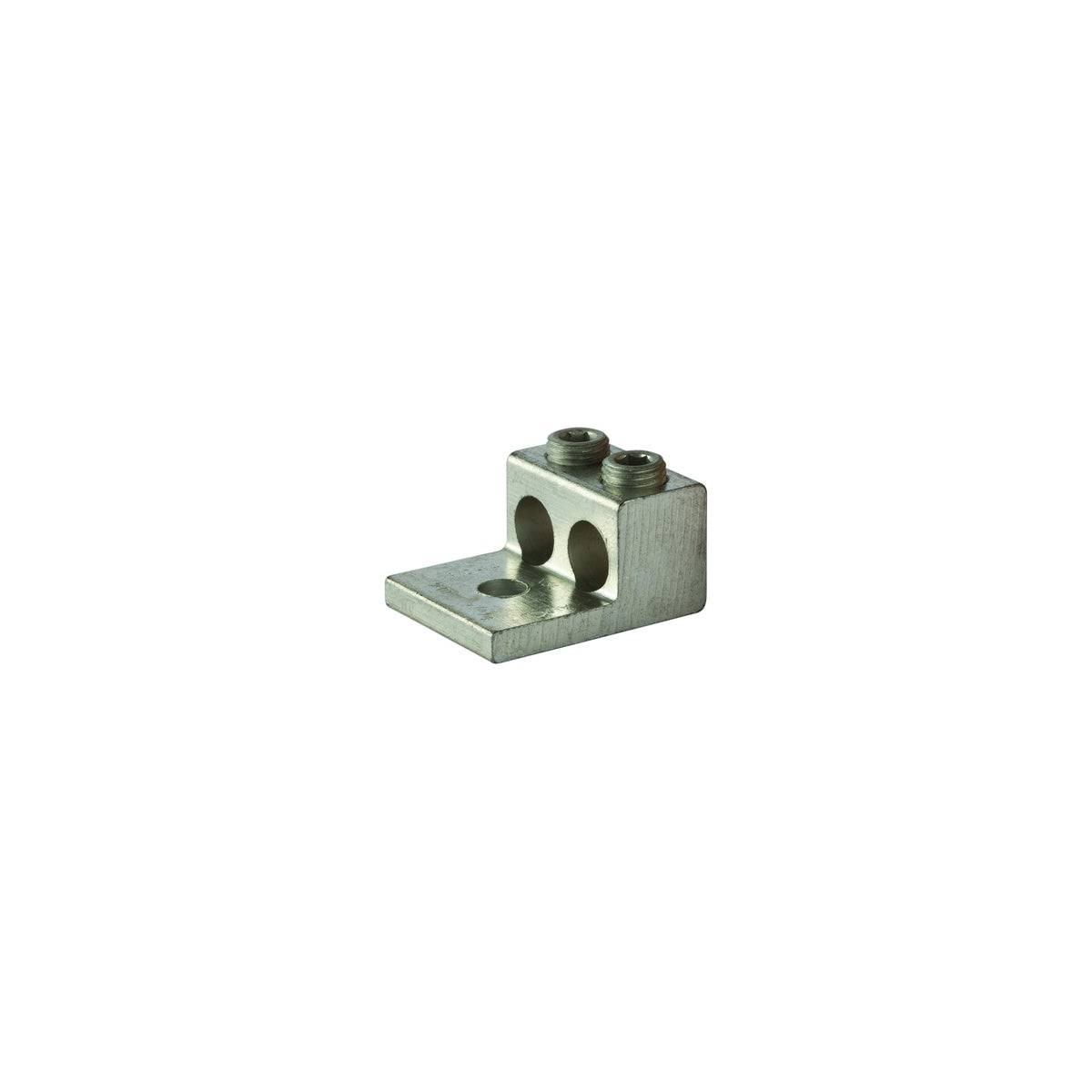

Dual Rated Lug Two 350-6 (2) Mtg Holes Electrical Connector
The Dual Rated Lug Two 350-6 is a wire termination connector designed for use in electrical distribution and lighting solutions. Manufactured by NSI Industries, this aluminum lug supports both copper and aluminum conductors and is rated for 600 volts. It is suitable for applications requiring reliable wire and cable connections in switchgear and electrical panel assemblies.
Specifications
- Material: 6061T-6 Aluminum Alloy
- Finish: Aluminum
- Color: Aluminum
- Dimensions (L x W x H): 2.88 in x 1.92 in x 1.13 in
- Maximum Temperature: 90 degrees Celsius
- Application: Wire Termination
- Voltage Rating: 600 volts
- Manufacturer Part #: 2-350T
- Product Weight: 2.7 lbs
- Country of Origin: United States
- Made in USA: Yes
Features
- Dual rated for use with both copper and aluminum conductors
- Tin plated for low contact resistance
- Two-port design with two mounting holes for secure installation
- Reusable set screw connectors
- Constructed from durable 6061T-6 aluminum alloy
