Dual Rated Lug Two 250-6
SKU: #303440
Part: #2-250T
UPC: 662381001221
Dual Rated Lug Two 250-6
SKU: #303440
Part: #2-250T
UPC: 662381001221
Description

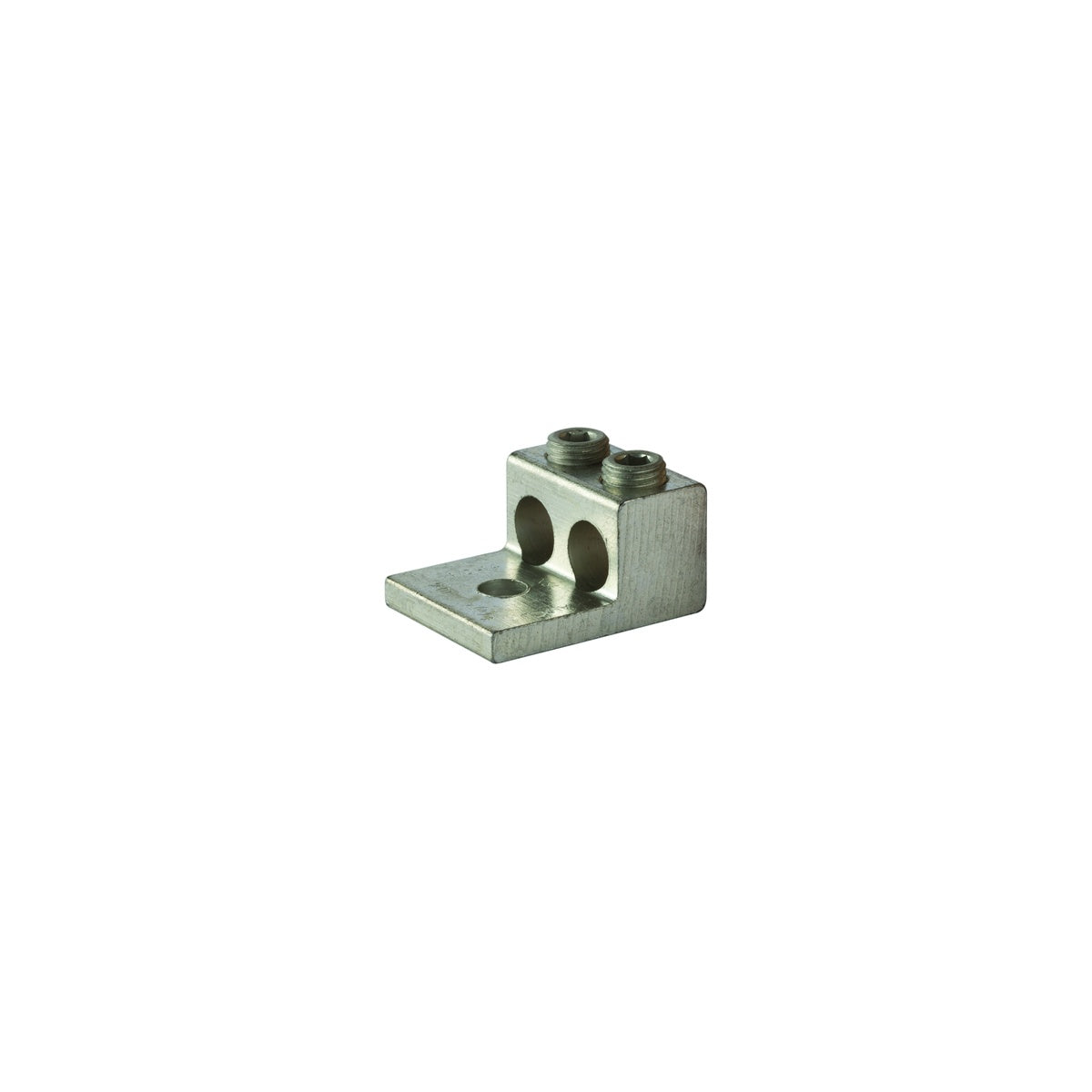

Dual Rated Lug Two 250-6 Aluminum Double Lug
This Dual Rated Lug Two 250-6 is a 2-port aluminum lug designed for wire termination applications. Manufactured by NSI Industries, it serves as a reliable component in electrical distribution and wire and cable installations. The lug is suitable for use with both copper and aluminum conductors and is rated for 600 volts and 90 degrees Celsius, making it compatible with various lighting solutions and switchgear supplier requirements.
Specifications
- Material: 6061T-6 Aluminum Alloy
- Finish: Tin-Plated
- Length: 2.56 in
- Width: 1.63 in
- Height: 1.02 in
- Maximum Temperature: 90 degrees celsius
- Application: Wire Termination
- Product Weight: 2.0000
- Manufacturer Part #: 2-250T
- Voltage Rating: 600 volts
- Country of Origin: United States
- Made in USA: Yes
Features
- Electro tin plated for low contact resistance
- Reusable set screw connectors
- Compatible with copper and aluminum conductors
- UL 486A/B Listed for safety and compliance
