Dual Rated Lug 500-4
SKU: #303490
Part: #500T
UPC: 662381001092
Dual Rated Lug 500-4
SKU: #303490
Part: #500T
UPC: 662381001092
Description

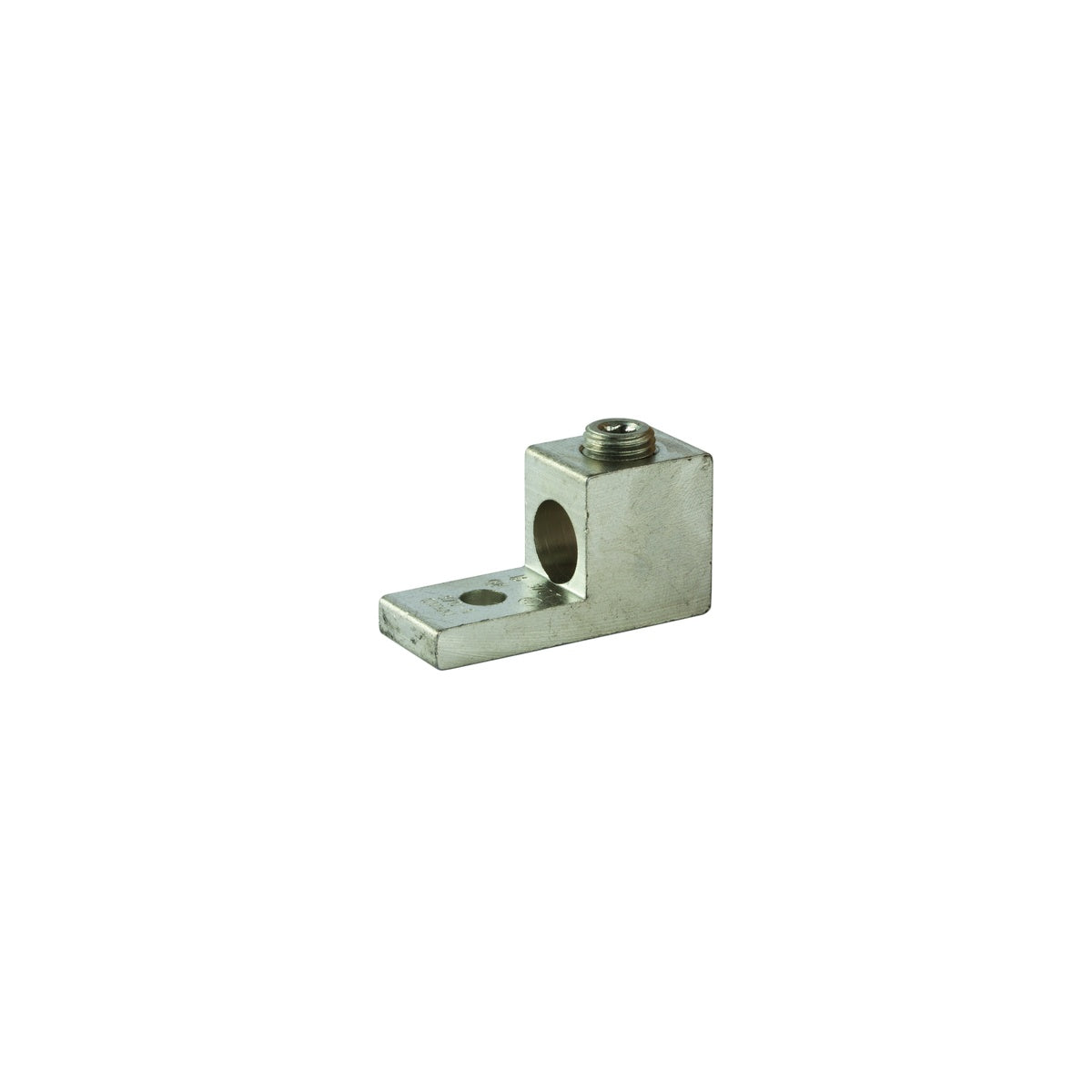

Dual Rated Lug 500-4 Aluminum Single Lug
The Dual Rated Lug 500-4 is a versatile aluminum single lug designed for electrical distribution and wire and cable connections. Manufactured from 6061T-6 aluminum alloy and electro-tin plated, it ensures low contact resistance and compatibility with both copper and aluminum conductors. Suitable for use in lighting solutions and switchgear applications, this lug supports a temperature rating of 90 degrees Celsius and a voltage rating of 600 volts, meeting UL 486A/B standards.
Specifications
- Material: 6061T-6 Aluminum Alloy
- Finish: Tin-Plated
- Length: 2.75 in
- Width: 1.2 in
- Height: 1.41 in
- Max. Temperature: 90 degrees Celsius
- Voltage Rating: 600 volts (2000V max. per UL486B)
- Order Minimum: 1
- Product Weight: 1.56 lbs
- Country of Origin: United States
- Made in USA: Yes
- Manufacturer: NSI Industries
- Manufacturer Part #: 500T
Features
- Electro-tin plated for low contact resistance
- Compatible with copper and aluminum conductors
- Reusable set screw connector
- UL 486A/B Listed for safety and reliability
