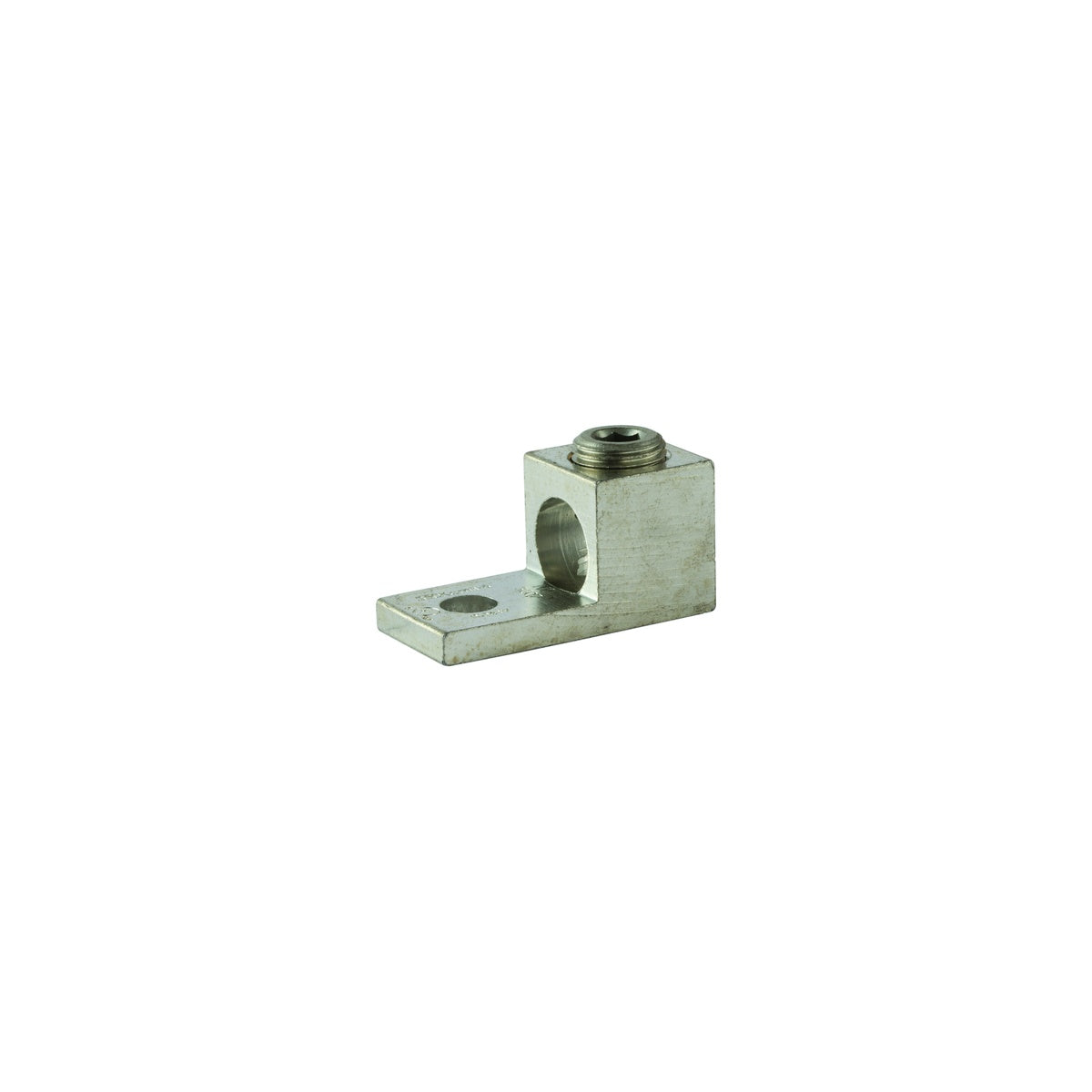

Dual Rated Lug 350-6 Aluminum Lug

The Dual Rated Lug 350-6 is a 1-port aluminum lug designed for secure and reusable electrical connections. Manufactured from 6061T-6 aluminum alloy and electro-tin plated, this lug offers low contact resistance and is suitable for use with both copper and aluminum conductors. It is rated for 600 volts with a maximum of 2000 volts per UL486B and has a temperature rating of 90 degrees Celsius. This product is ideal for electrical distributors and switchgear suppliers requiring reliable wire and cable connectors in lighting solutions and electrical systems.

Specifications

• Material: 6061T-6 Aluminum Alloy
• Finish: Tin-Plated
• Voltage Rating: 600 volts (2000V max. per UL486B)
• Temperature Rating: 90 degrees Celsius
• Dimensions: Length 2.25 in, Width 0.99 in, Height 1.13 in
• Manufacturer: NSI Industries
• Manufacturer Part #: 350T
• Country of Origin: United States
• Product Weight: 2.8 lbs
• Order Minimum: 1 unit
• UL Listing: UL 486A/B

Features

• Electro-tin plated for low contact resistance
• Dual-rated for use with copper and aluminum conductors
• Reusable set screw connector
• Made in USA
