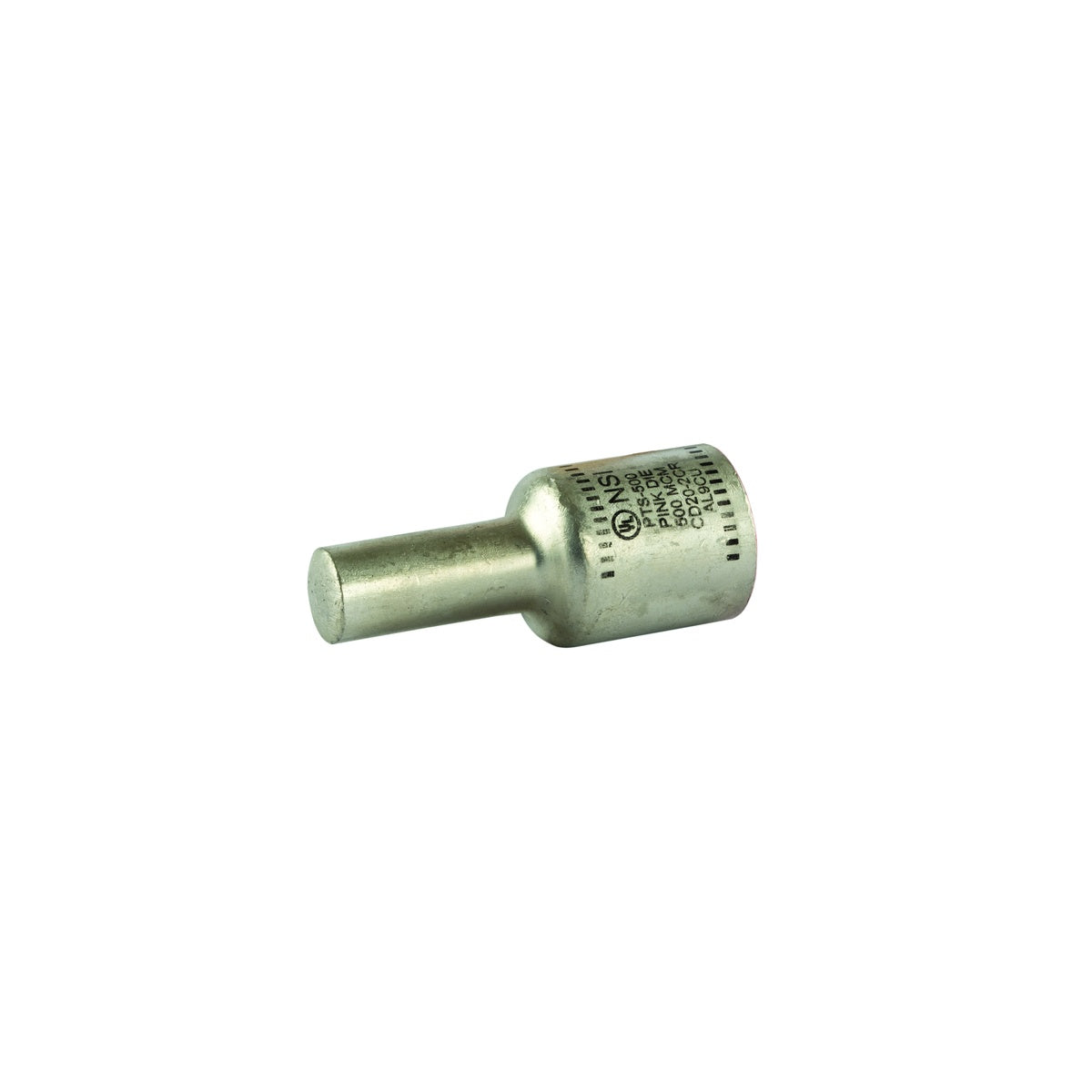

Dual Rated Aluminum Pin Terminal for 500 MCM
SKU: #305467
Part: #PTS500
UPC: 662381033628
Dual Rated Aluminum Pin Terminal for 500 MCM
SKU: #305467
Part: #PTS500
UPC: 662381033628
Description
Dual Rated Aluminum Pin Terminal for 500 MCM – Aluminum Pin Terminal
The Dual Rated Aluminum Pin Terminal for 500 MCM is designed for terminating, splicing, and tapping power connectors in electrical distribution and lighting solutions. Suitable for use with both copper and aluminum conductors, this pin terminal is ideal for wire and cable applications requiring reliable, corrosion-resistant connections. It is rated for 600 volts and features a tin-plated aluminum solid pin pre-filled with oxide inhibitor for enhanced performance and durability.
Specifications
- Material: Aluminum
- Finish: Tin Plated
- Color: Pink
- Conductor Range: 500 MCM (STR)
- Connection: 350 Pin
- Insulation: Plastisol Cover
- Product Weight: 2.0000
- Dimensions: 3.08 inches (Length) x 1.31 inches (Width) x 1.31 inches (Height)
- Maximum Temperature: 194 degrees Fahrenheit (90°C)
- Number of Poles: 1
- Number of Conductors: 1
- Voltage Rating: 600 Volts
- Country of Origin: India
- Manufacturer: NSI Industries
- Manufacturer Part #: PTS500
Features
- Dual rated for use with both copper and aluminum conductors
- Solid aluminum pin with tin plating for corrosion resistance
- Pre-filled with oxide inhibitor for reliable electrical contact
- Plastisol cover for insulation and quick installation
- Suitable for termination, splicing, and tapping of power connectors
- Compatible with UL listed crimp tools and dies for proper installation
