Dual Range Non-Contact Voltage Tester with Flashlight, 12 - 1000V AC – Non Contact Voltage Tester

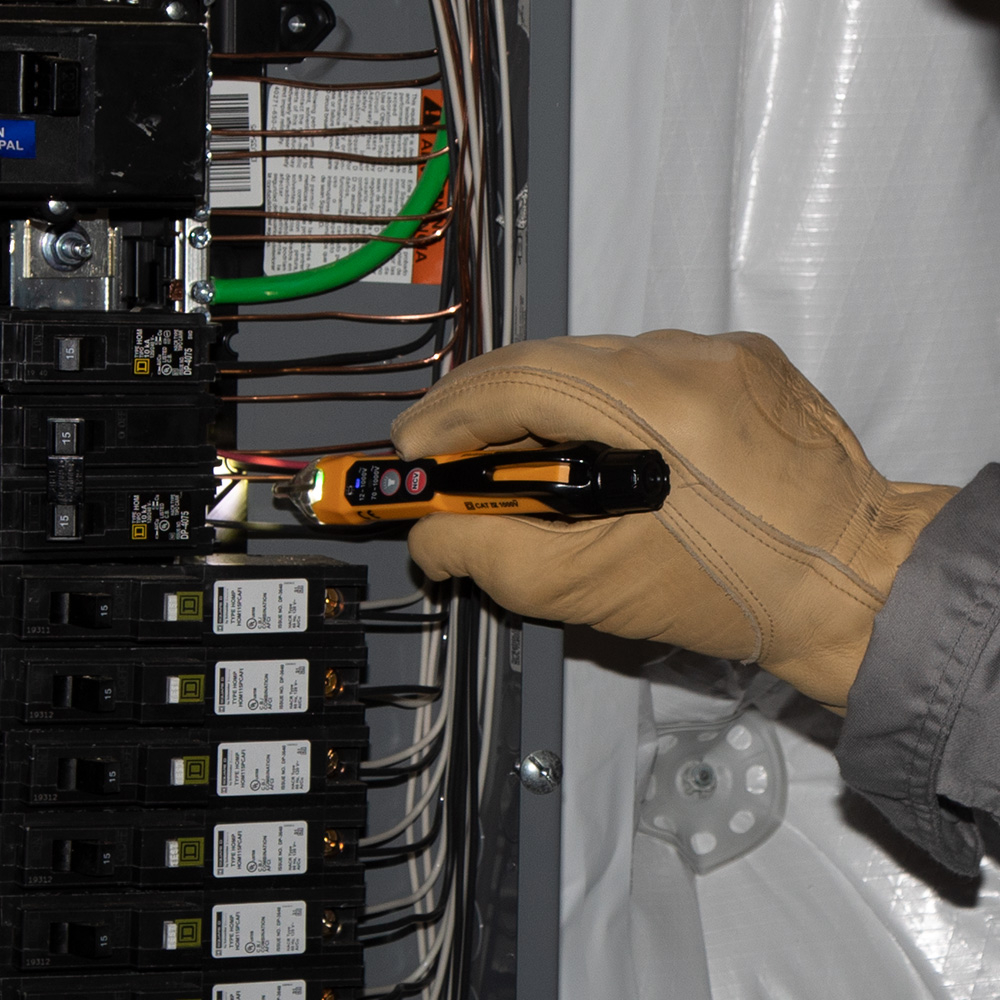

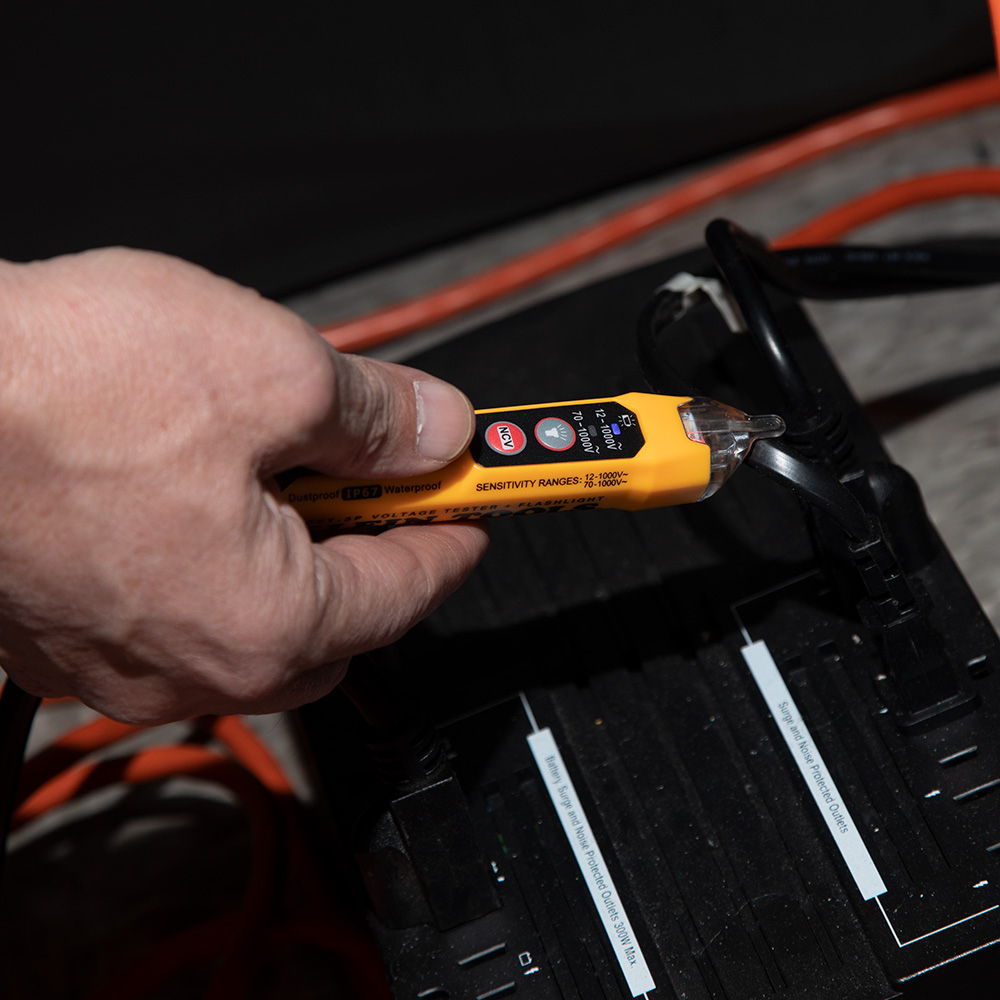

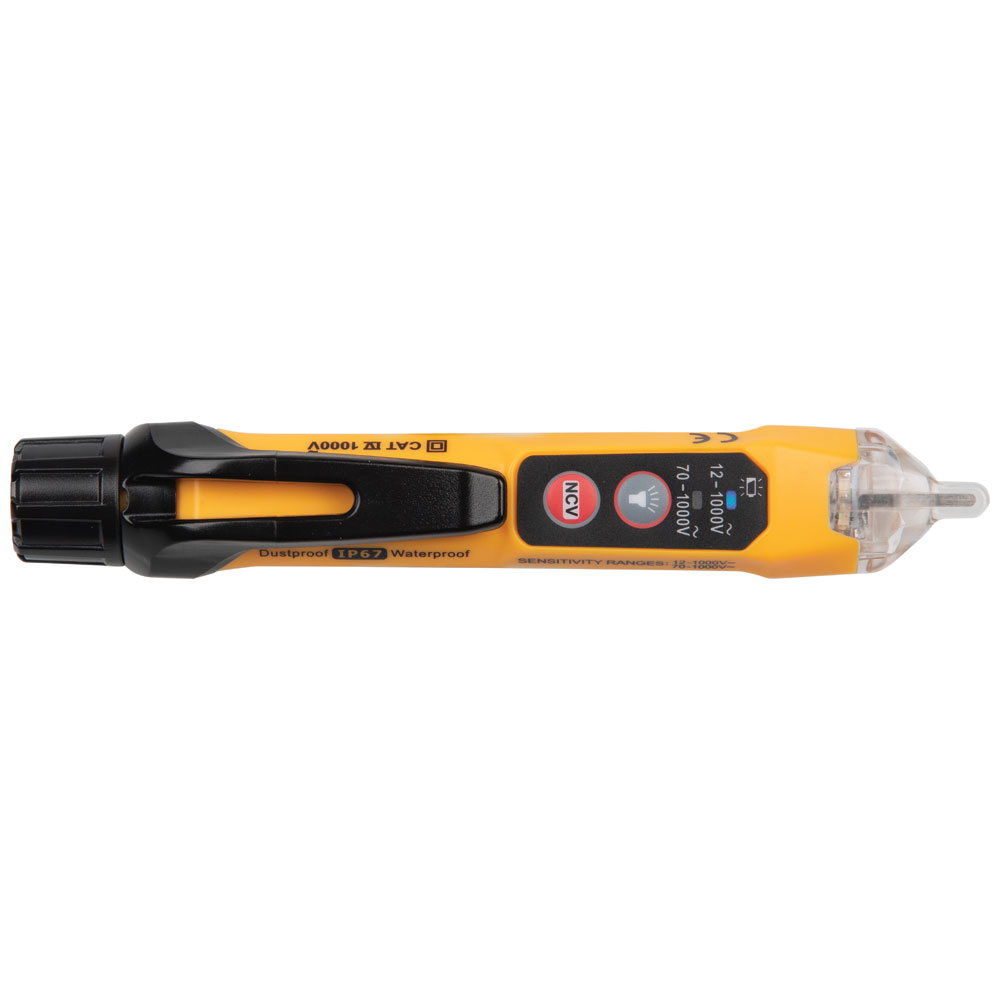

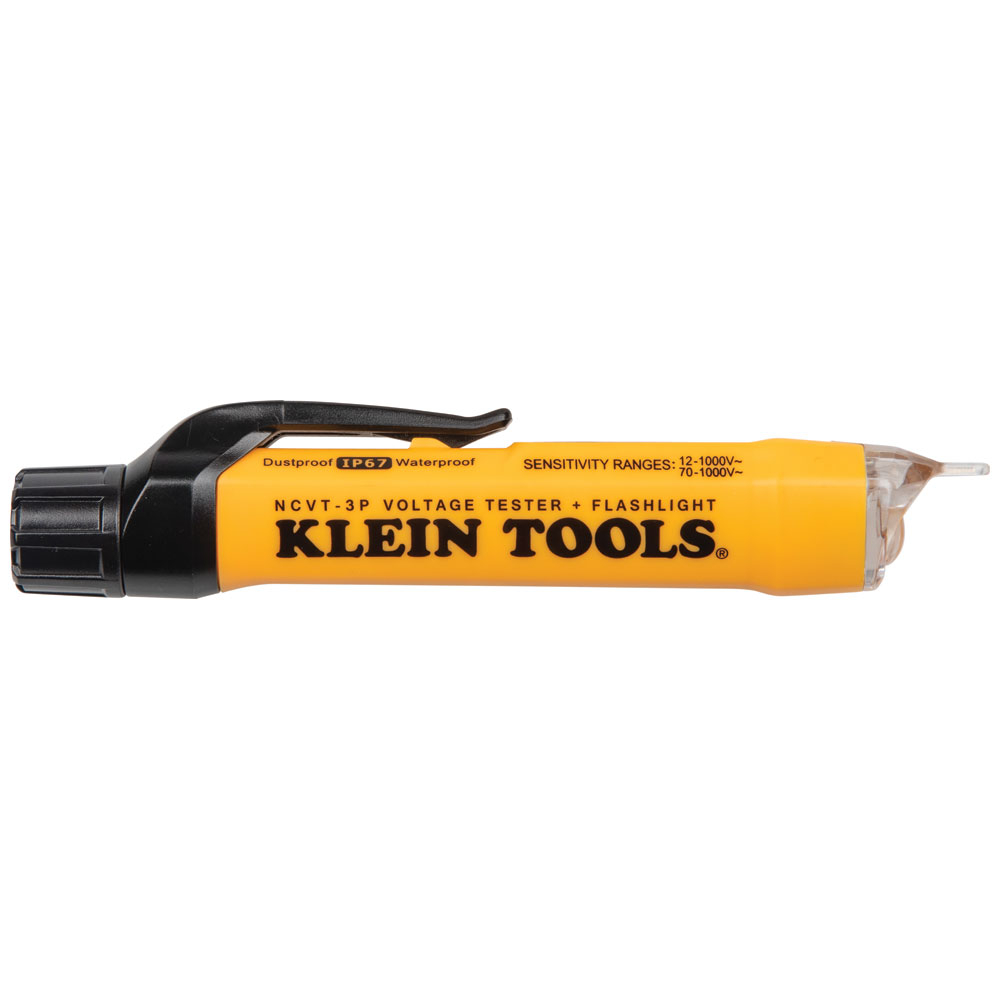

The Klein Tools NCVT-3P is a dual-range non-contact voltage tester designed for detecting AC voltage from 12 to 1000V. It provides both visual and audible indicators for voltage presence, making it suitable for electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers. The integrated flashlight enhances usability in low-light environments, and its rugged polycarbonate construction ensures durability for job site conditions.

Specifications

• Voltage Detection Range: 12 to 1000V AC
• Frequency Range: 50 hertz
• Safety Rating: CAT IV 1000V AC
• Ingress Protection: IP67 (dustproof and waterproof)
• Drop Protection: 6.6 ft (2 m)
• Material: Polycarbonate
• Dimensions: 1.14 in (width) x 0.93 in (height)
• Weight: 0.1040 lbs
• Battery Type: 2x AAA (included)
• Operating Environment: Indoor or outdoor

Features

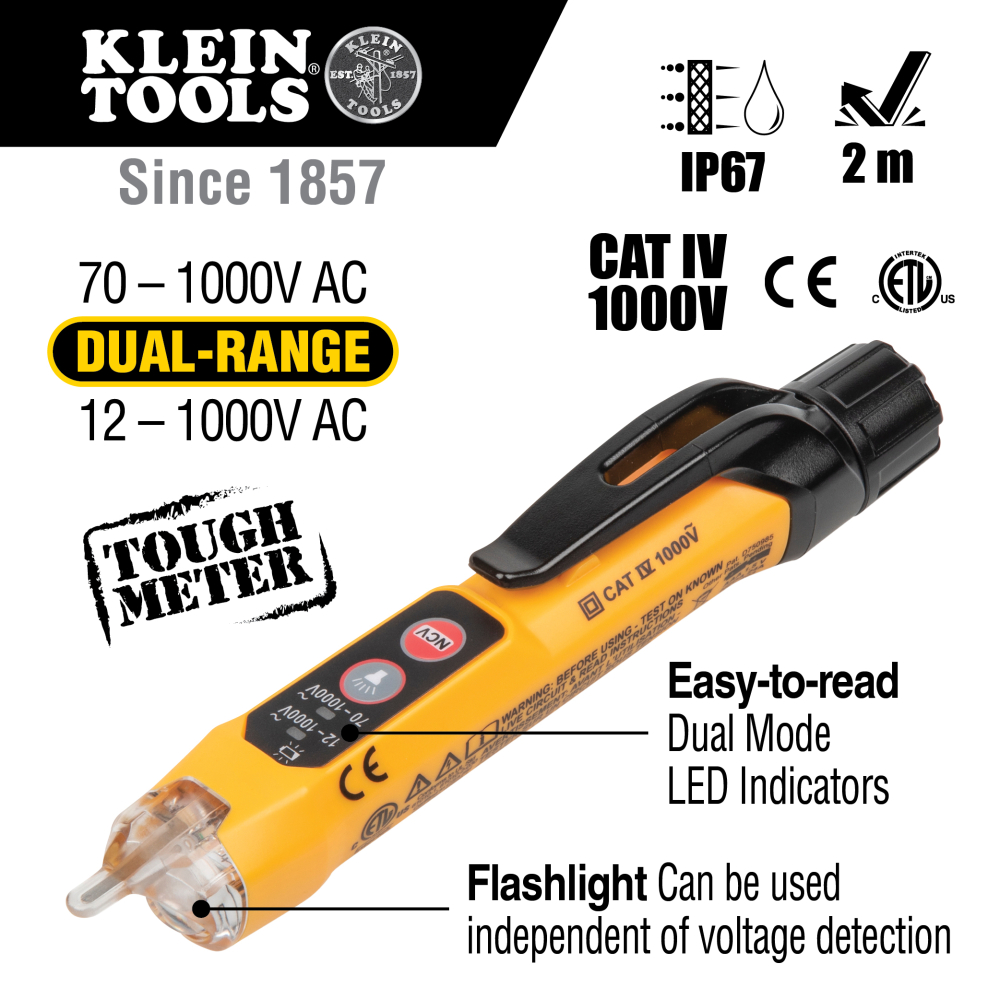

• Dual sensitivity modes: Mode 1 detects 70 to 1000V AC, Mode 2 detects 12 to 1000V AC for low voltage and higher sensitivity
• Visual and audible voltage indicators with LED lights and beeping signals

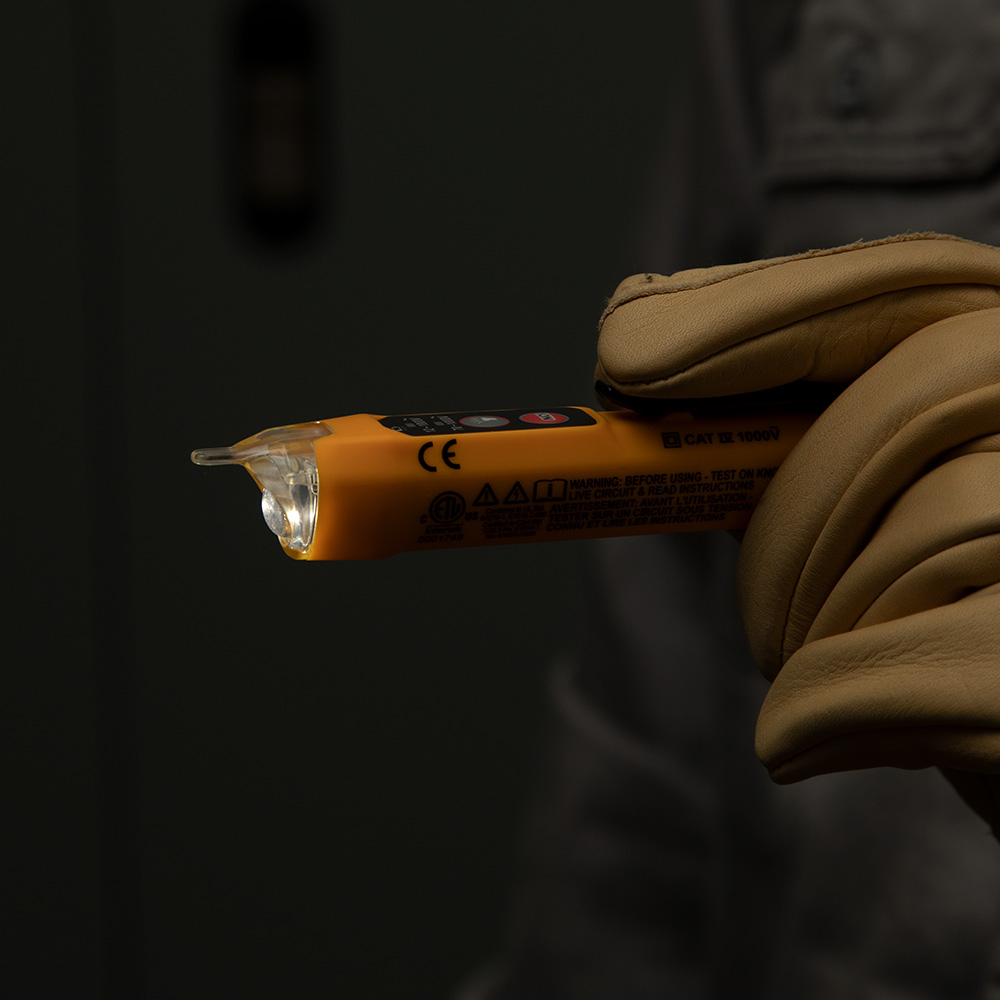

• Integrated flashlight operable independently from voltage testing
• Silent operation mode available for noise-sensitive environments
• Automatic power-off after 4 minutes of inactivity to conserve battery life
• Rugged design suitable for job site use with IP67-rated dust and water protection

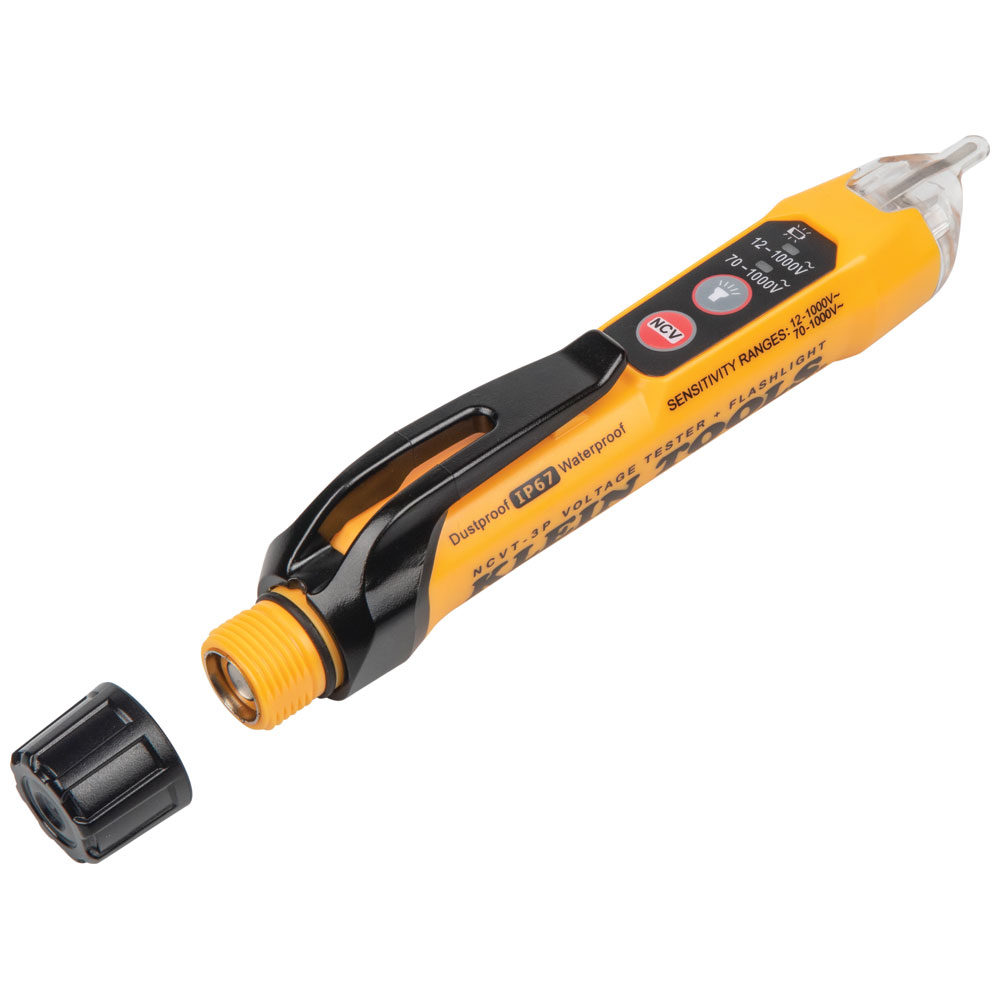

• Easy battery replacement with sealed battery compartment and O-ring for waterproofing

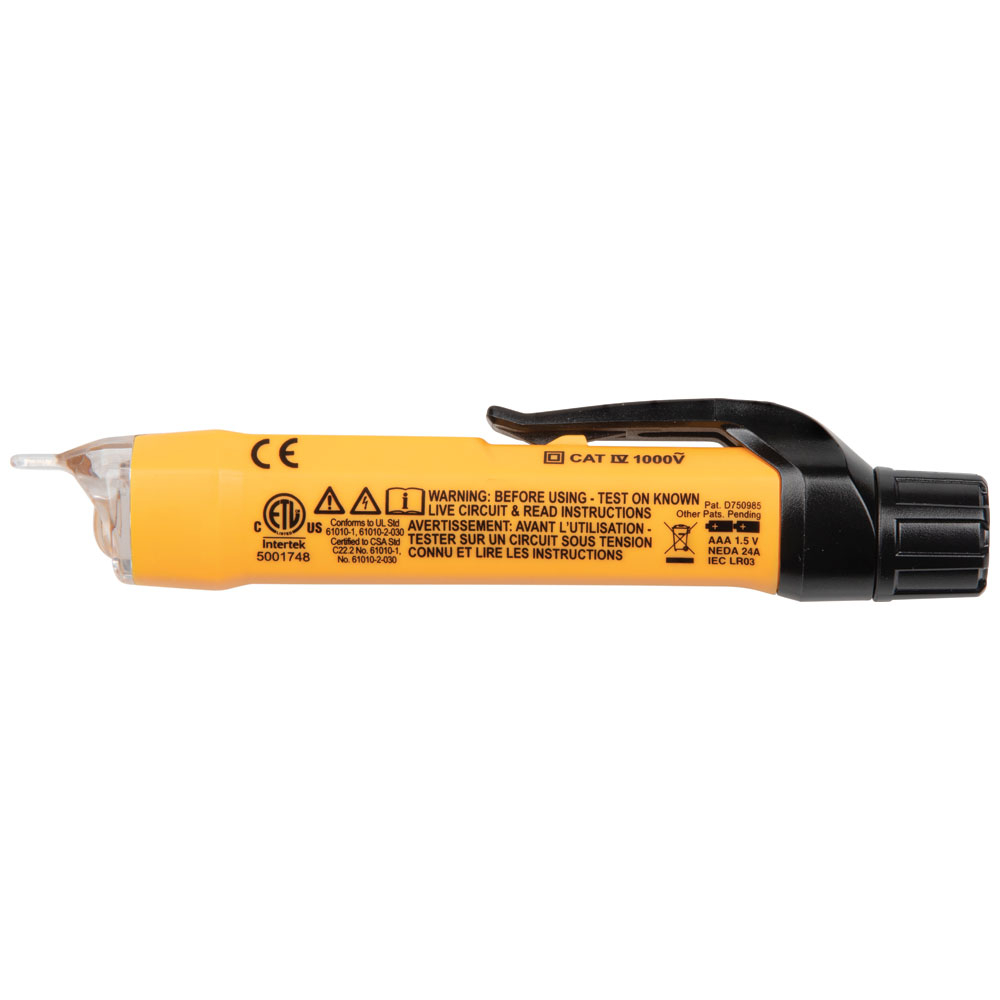

• Complies with relevant safety and performance standards including UL, CSA, and European directives
