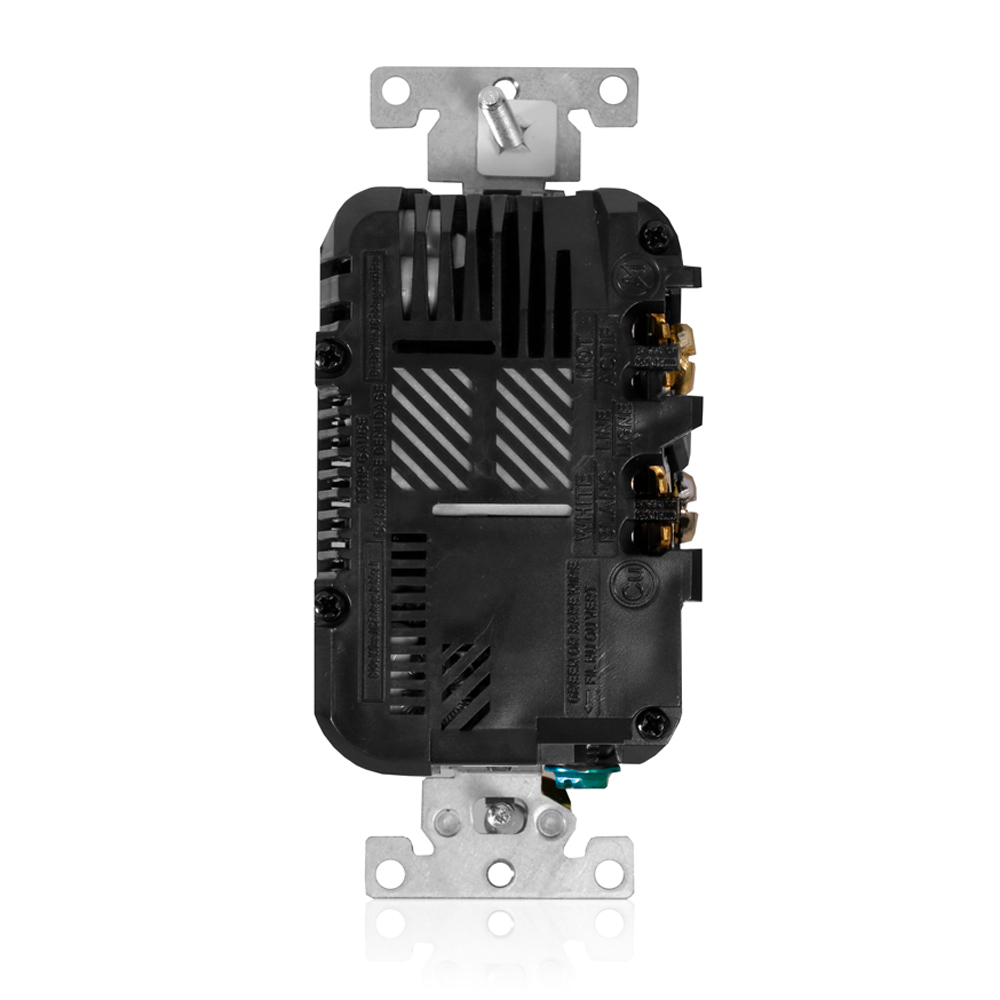

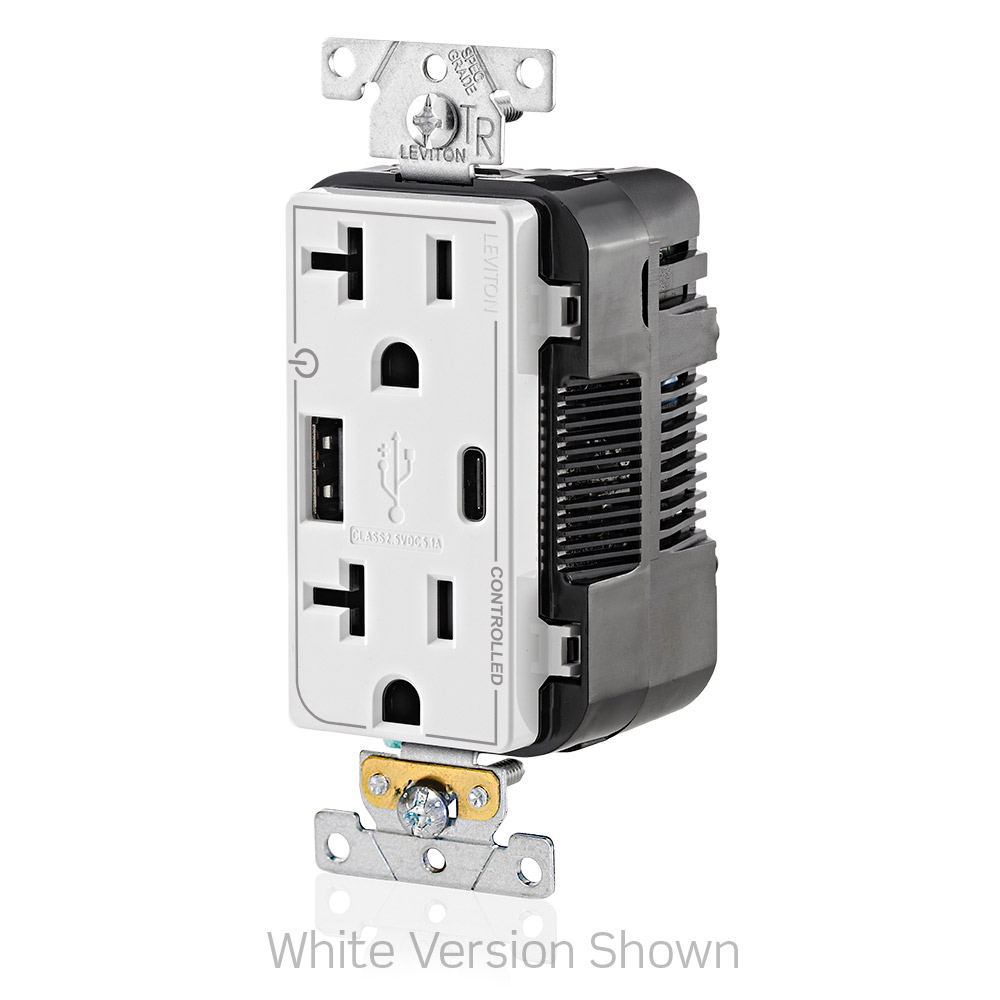

Dual Marked “Controlled” Tamper-Resistant USB Receptacle, Type A/C, 20 Amp 125 Volt, Black
SKU: #374693
Part: #T5833-2E
UPC: 078477329801
Dual Marked “Controlled” Tamper-Resistant USB Receptacle, Type A/C, 20 Amp 125 Volt, Black
SKU: #374693
Part: #T5833-2E
UPC: 078477329801
Description
Dual Marked “Controlled” Tamper-Resistant USB Receptacle, Type A/C, 20 Amp 125 Volt, Black
This dual marked controlled combination duplex Decora receptacle integrates a tamper-resistant duplex outlet with Type A and Type C USB charging ports. Designed for 20 amp, 125 volt applications, it is suitable for controlled plug load systems and complies with NEC Article 406.3(E), CA Title 24, and ASHRAE Energy Efficiency Standard 90.1. The device is ideal for electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers requiring hospital-grade, heavy-duty receptacles with integrated USB charging functionality.
Specifications
- Device Type: Duplex Receptacle Outlet
- Amperage: 20 amperes
- Voltage: 125 Volt
- Number of Poles: 2
- Number of Wires: 3
- NEMA Configuration: 5-20R
- Grade: Heavy-Duty Hospital
- Grounding: Self-Grounding
- Horsepower Rating: 1/2 horse power
- Color: Black
- Operating Temperature: -10 degrees Celsius
- Manufacturer: Leviton
- Manufacturer Part Number: T5833-2E
- Country of Origin: China
- Product Weight: 0.3530 lbs
Features
- Dual marked "Controlled" receptacle compliant with NEC and energy efficiency standards
- Combination duplex Decora style with tamper-resistant outlets
- Includes Type A and Type C USB charging ports for fast device charging
- Heavy-duty hospital grade construction for demanding applications
- Self-grounding design for reliable electrical safety
- Compatible with plug load control systems to manage energy usage
