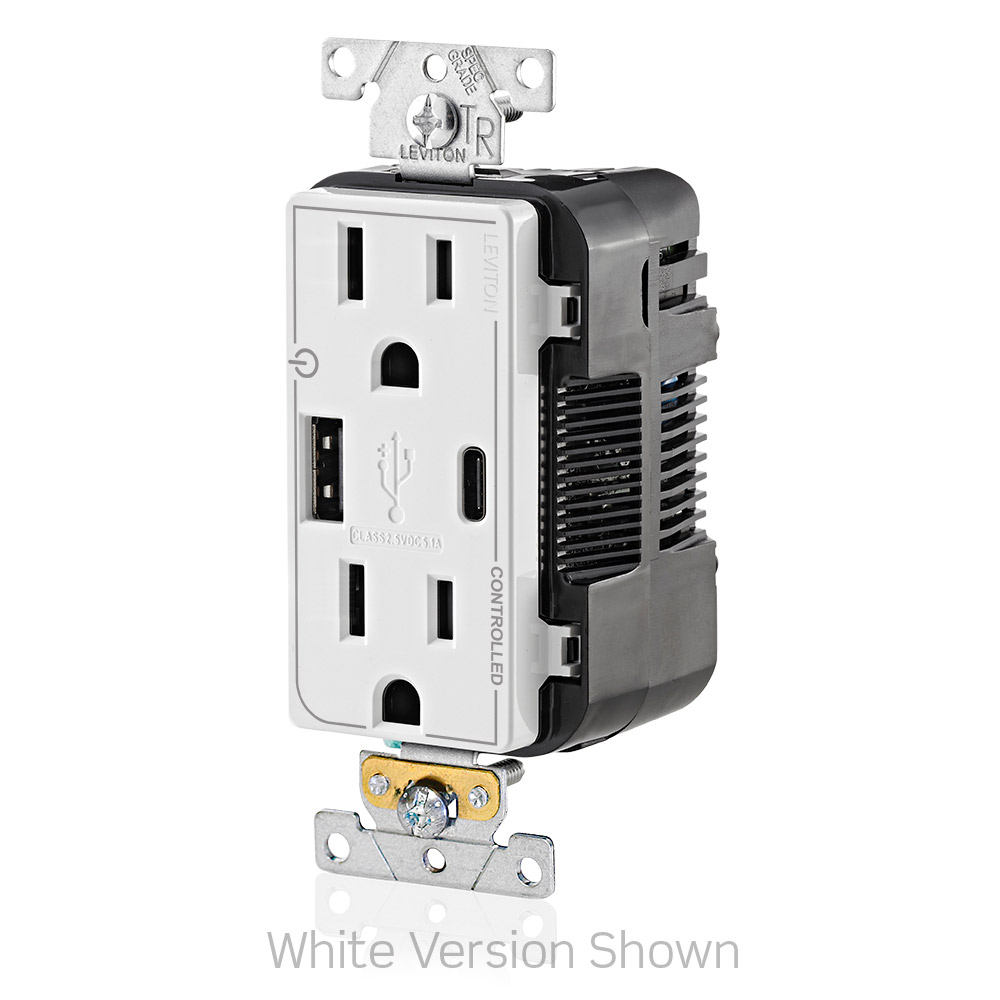

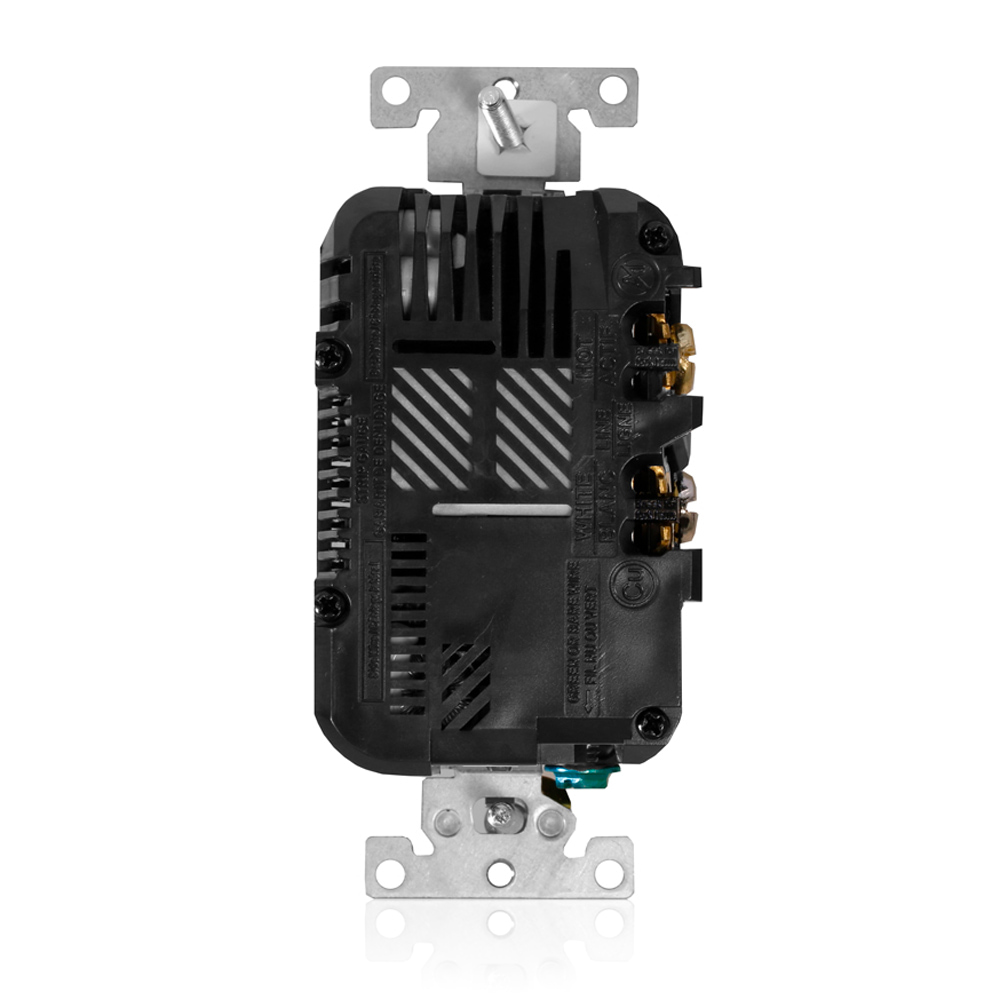

Dual Marked “Controlled” Tamper-Resistant USB Receptacle, Type A/C, 15 Amp 125 Volt, Black

This dual marked controlled combination duplex Decora receptacle integrates a tamper-resistant duplex outlet with USB Type A and Type C charging ports. Rated at 15 amperes and 125 volts with a NEMA 5-15R configuration, it is designed for commercial specification grade applications. Ideal for electrical distributors and lighting solutions providers, this device supports plug load control systems by complying with NEC Article 406.3(E), CA Title 24, and ASHRAE Energy Efficiency Standard 90.1. The receptacle features self-grounding, a 2-pole 3-wire design, and is suitable for controlled power applications in commercial environments.

Specifications

• Amperage: 15 amperes
• Voltage: 125 volts
• Device Type: Duplex Receptacle Outlet
• NEMA Configuration: 5-15R
• Number of Poles: 2
• Number of Wires: 3
• Grade: Commercial Specification
• Color: Black
• Grounding: Self-Grounding
• Horsepower Rating: 1/2 horse power
• Operating Temperature: -10 degrees Celsius
• Manufacturer: Leviton
• Manufacturer Part Number: T5633-2E
• Country of Origin: China
• Product Weight: 0.3530 lbs

Features

• Dual marked ‚ÄúControlled‚Äù receptacle compliant with NEC and energy codes for plug load control systems
• Combination of tamper-resistant duplex receptacle and USB Type A and Type C charger ports
• Commercial specification grade for durability and performance in demanding environments
• Self-grounding design for enhanced safety
• Compatible with plug load control systems to optimize energy efficiency
• Decora style for modern aesthetic and ease of installation

Downloads & Links

• Straight Blade Receptacle Catalog Q-1101H
• Q-914F Controlled Receptacle Marking
• Leviton T5633 T5833 Instruction Sheet EnFrSp
• product-cleaning-instructions
