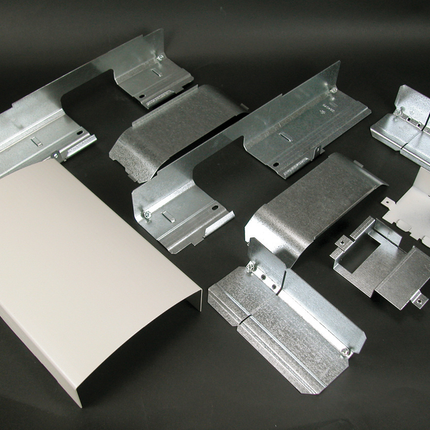

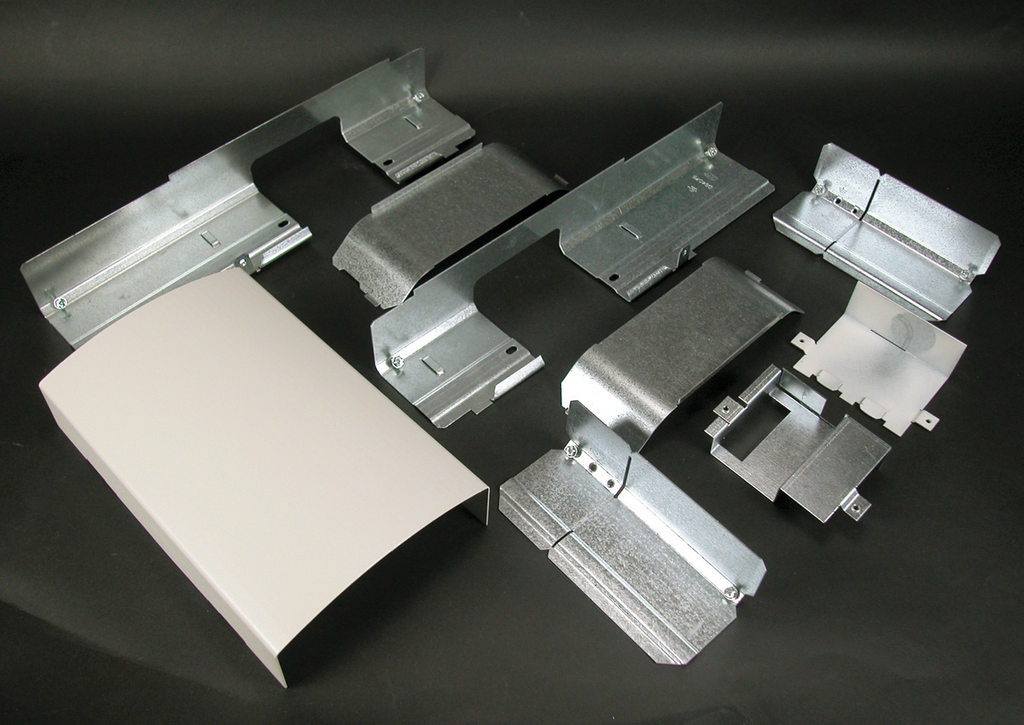

DS4000 Small Obstacle Transition Fitting – Wiremold Raceway Solutions

The DS4000 Small Obstacle Transition Fitting from Wiremold is designed to provide a reliable and efficient solution for passing over previously installed conduits or raceways up to the 2400 Series Raceway. It also facilitates smooth transitions to other Wiremold metal raceway systems including 500 Series™, 700 Series™, and 2400D Series™. This fitting is part of the DS4000 Designer Series Raceway, which offers an innovative profile with 1/3 more wiring capacity than conventional box-style raceways, making it suitable for commercial, institutional, and industrial applications requiring high-capacity metal raceways.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: DS4075-DG
• Color: Gray
• Country of Origin: United States
• Made in USA: Yes
• Product Weight: 2.75 lbs
• Order Minimum: 1 unit
• UPC: 786776081855

Features

• Innovative Small Obstacle/Transition fitting designed to bypass existing conduits or raceways.
• Compatible with DS4000 Series Raceway and transitions seamlessly to other Wiremold raceway systems.
• Part of the DS4000 Series Raceway, which features dual covers and built-in dividers for full isolation of power and data services.
• Provides 1/3 more wiring capacity than conventional box-style raceway profiles.
• Gray baked enamel finish to blend with contemporary commercial and institutional environments.
• Supports downward-facing activations for a clean, streamlined appearance and improved cable protection.
• Adjust-to-Fit couplings included in the series allow up to 4 inches of lateral adjustment for easier installation.
• Meets or exceeds UL, NEC, NEMA standards and EIA/TIA recommendations.
