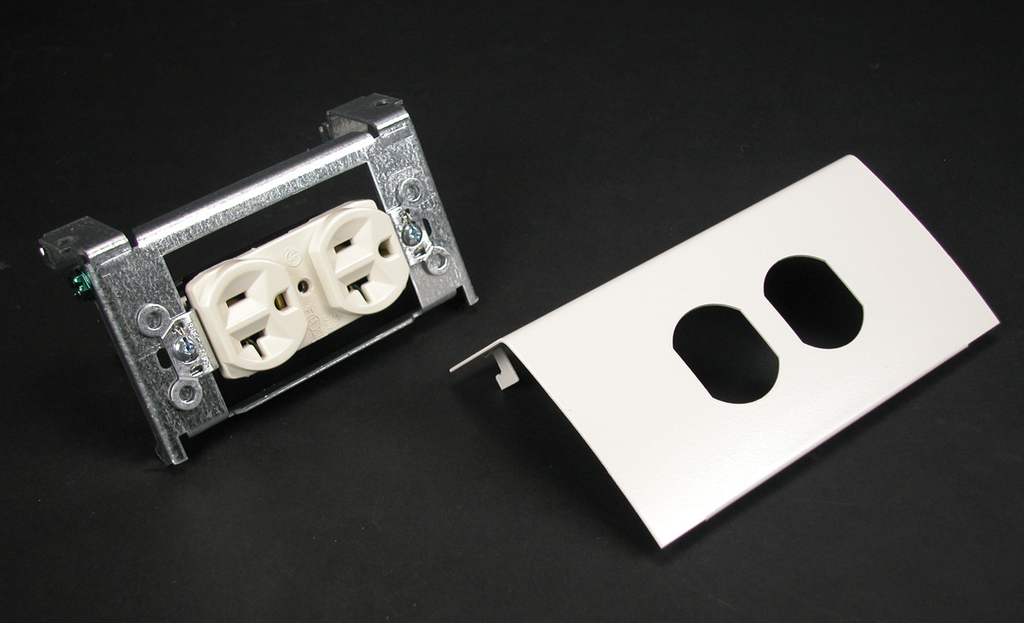

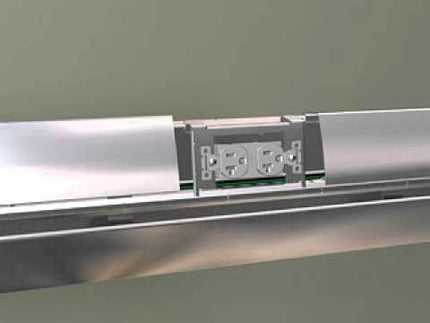

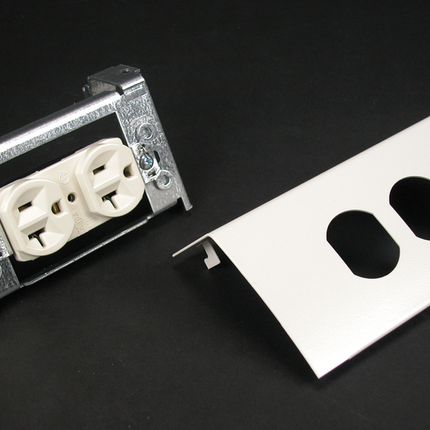

DS4000 Single Channel Duplex Device Plate Fitting With One Duplex Installed - Steel Raceway Solutions

The DS4000 Single Channel Duplex Device Plate Fitting with One Duplex Installed is part of the Wiremold DS4000 Designer Series Raceway system, providing a high-capacity, dual service steel raceway solution. Designed for commercial, institutional, and industrial applications, this fitting integrates a Pass & Seymour 20A duplex receptacle pre-installed on a steel device plate, facilitating streamlined electrical distribution and wiring installations. The DS4000 Series Raceway offers innovative features such as twin covers with a built-in divider for full isolation of services, downward-facing activations for a clean aesthetic, and 1/3 more wiring capacity compared to conventional box-style raceways. This product is ideal for electrical distributors, lighting solutions providers, and switchgear suppliers seeking efficient wire and cable management systems.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: DS4047DQ-BK
• Product Weight: 0.8 lbs
• Color: Black
• Length: 6.0 in
• Country of Origin: United States
• Made in USA: Yes
• UPC: 786776082319

Features

• Includes one Pass & Seymour 20A duplex receptacle pre-installed on bracket
• Part of the DS4000 Series Raceway with dual service steel construction and twin covers
• Built-in divider provides full isolation of power and data services
• Downward-facing activation enhances aesthetics and cable protection
• Compatible with industry-standard devices and faceplates
• Designed for easy installation and integration with the DS4000 Raceway system
• Provides 1/3 more wiring capacity than conventional box-style raceway profiles
• Ideal for commercial, institutional, or industrial high-capacity metal raceway applications

Downloads & Links

• DS4000 Series Raceway
• 4000 Designer Series Steel Raceway
• ALDS4000 Designer Series Large Raceway - DS4000 & ALDS4000
• Spec Sheet
• Metal Raceway
