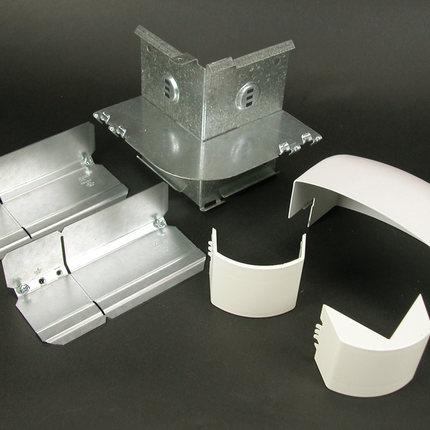

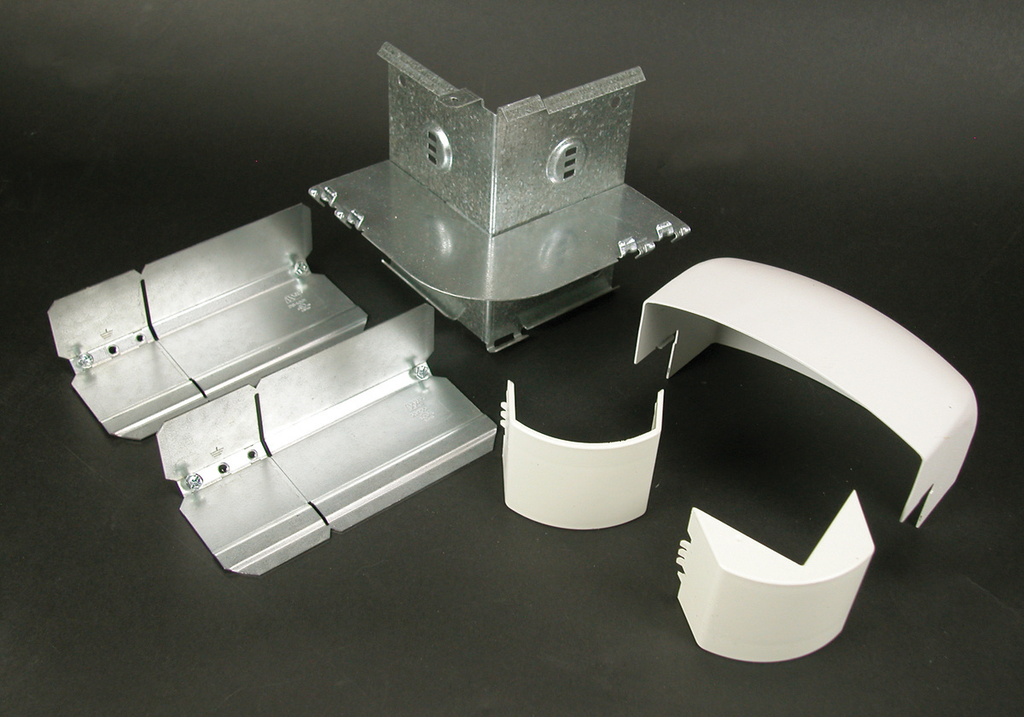

DS4000 External Elbow Fitting - Steel Raceway Fitting

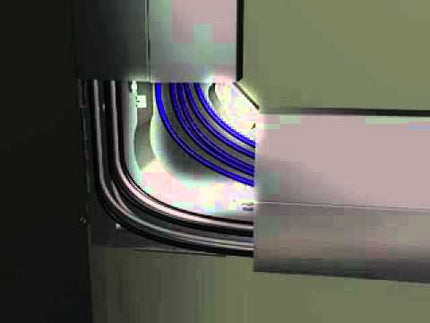

The DS4000 External Elbow Fitting from Wiremold is designed for use with the DS4000 Designer Series Raceway, a dual service steel raceway system offering superior wiring capacity and ease of installation. This 90° external corner fitting accommodates new lay-in or pull-through installations with a flexible base that conforms to out-of-square corners, providing adaptability in commercial, institutional, or industrial electrical distribution applications. The DS4000 Series Raceway system is recognized for its innovative features that save installation time and cost, making it suitable for electrical distributors, lighting solutions providers, wire and cable management, and switchgear suppliers.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: DS4018-DV
• Color: Fog White
• Country of Origin: United States
• Made in USA: Yes
• Product Weight: 2.12 lbs
• Order Minimum: 1 unit

Features

• Flexible base conforms to out-of-square corners for easier installation
• Includes one pair of DS4001 Adjust-to-Fit‚Ñ¢ couplings for up to 4" lateral adjustment, eliminating precise cuts
• Part of the DS4000 Designer Series Raceway system that provides 1/3 more wiring capacity than conventional box-style raceways
• Dual service steel raceway with twin covers and built-in divider for full isolation of power and data services
• Compatible with innovative downward-facing activation capabilities for streamlined power and data device integration
• Designed for commercial, institutional, and industrial applications requiring high capacity metal raceway
• Painted in Fog White to complement contemporary installations

Downloads & Links

• DS4000 Designer Series Large Raceway Elbow Fittings - DS4011, DS4017, DS4018"
• Spec Sheet
• DS4000 Series Raceway
• 4000 Designer Series Steel Raceway
• ALDS4000 Designer Series Large Raceway - DS4000 & ALDS4000
• Metal Raceway
