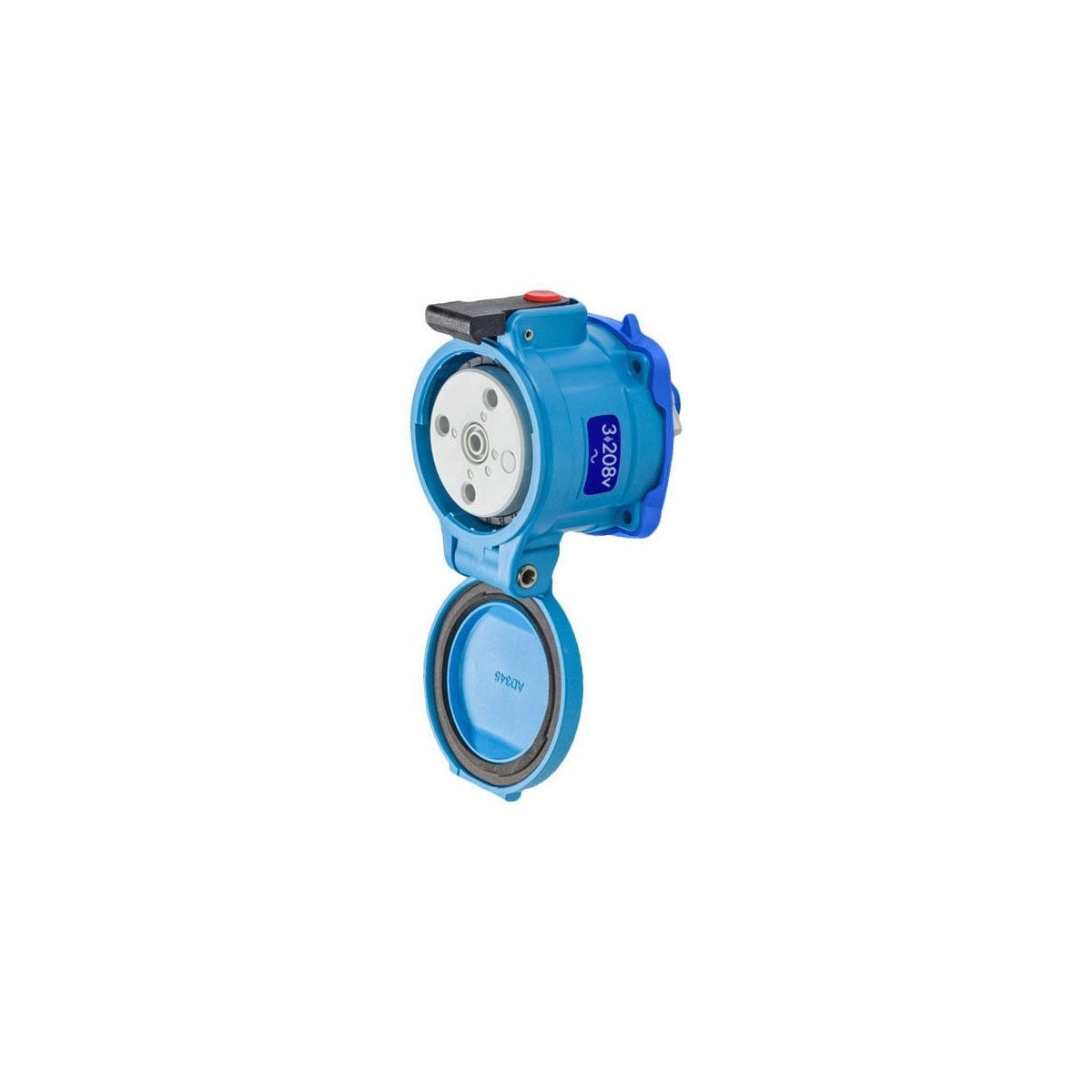

DS20 Receptacle Poly Blue - Switch-Rated 20A Electrical Connector

The DS20 Receptacle by Meltric is a switch-rated, poly material electrical connector designed for safe and reliable branch circuit and motor circuit disconnect switching. Rated for 20 amperes and 208 VAC at 60 hertz, this Type 3R receptacle offers a durable solution for industrial and commercial electrical distribution applications. It is suitable for use by electrical distributors and lighting solutions providers requiring robust wire and cable connectivity with integrated switchgear functionality.

Specifications

• Manufacturer: Meltric
• Manufacturer Part #: 33-14163
• Current Rating: 20 amperes
• Voltage: 208 VAC
• Frequency: 60 hertz
• Contact Configuration: 3P+G (3 poles plus ground)
• Material: Poly
• Color: Blue
• IP Rating: 55
• Horsepower Rating: 3 horse power
• Max Operating Temperature: 140 degrees Fahrenheit
• Product Weight: 0.6900 lbs
• CSA Certification: 155873
• UPC Code: 784474043830

Features

• Switch-rated for branch circuit and motor circuit disconnect switching
• Rated to make and withstand short circuit currents up to 100 kA with appropriate fusing
• Type 3R environmental rating for protection against rain and external ice formation
• Durable poly construction with color-coded blue housing for easy identification
• Designed for safe connection and disconnection with integrated locking pawl
• Compatible with Meltric DS20 series plugs and inlets
• Auxiliary contact options available for enhanced control and signaling
• Suitable for use with wiring sizes from 14 AWG to 8 AWG (THHN wire sizes)
• UL 2682, UL 1682, and CSA 182.1 certified
