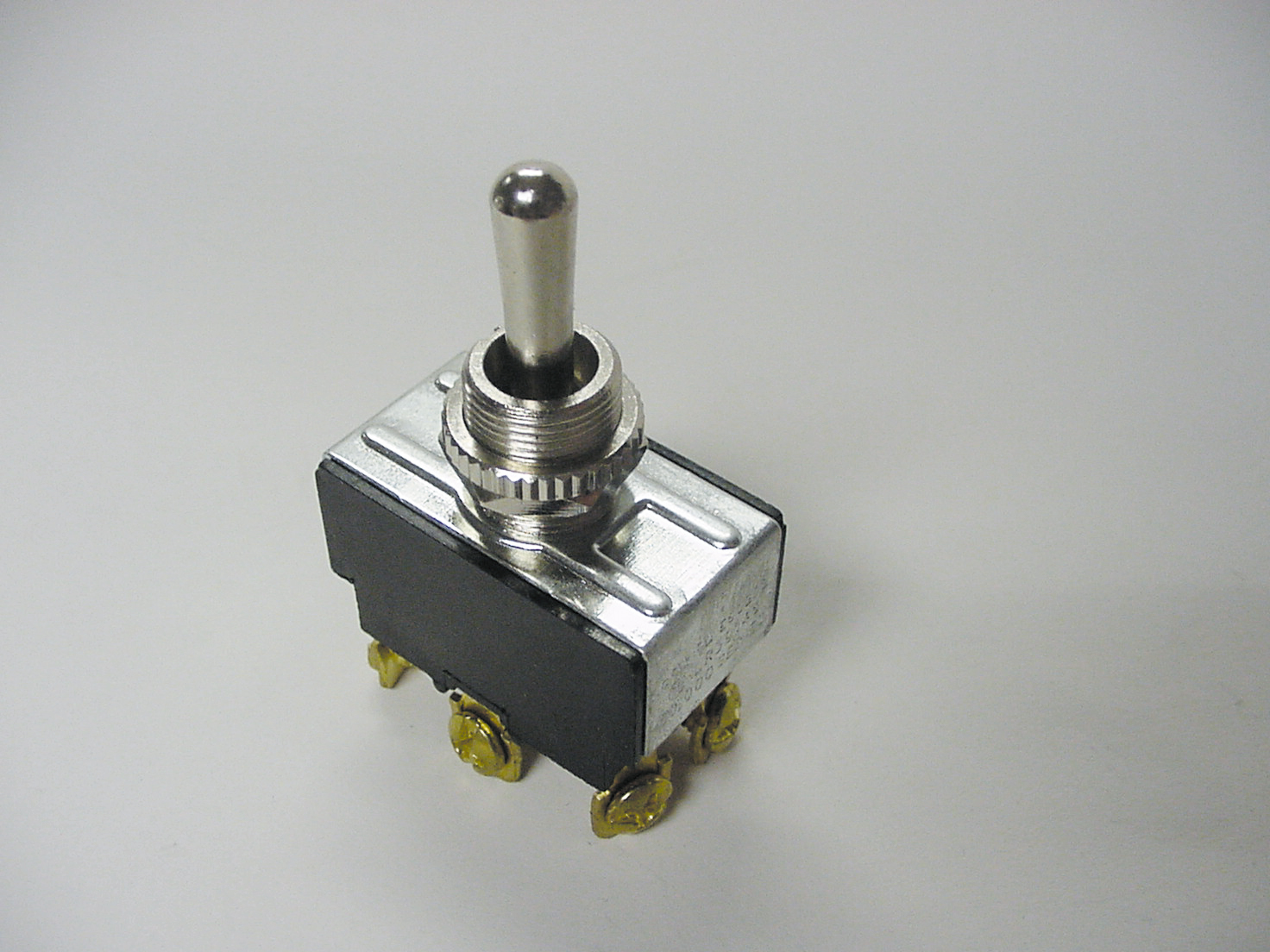

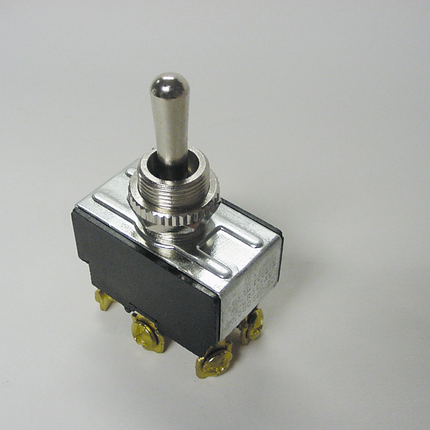

DPDT Toggle Switch Gardner Bender

The DPDT Toggle Switch by Gardner Bender is a standard toggle switch designed for electrical distribution and control applications. It is suitable for use in lighting solutions, industrial equipment, and as a component in wire and cable assemblies or switchgear systems. This switch features a double pole double throw (DPDT) configuration, providing versatile switching options for power tools, panel controls, appliances, and motors.

Specifications

• Manufacturer Part #: GSW-123
• Switch Type: Toggle
• Switch Style: Standard
• Poles & Throws: DPDT (Double Pole Double Throw)
• Terminal Type: Screw (6 terminals)
• Toggle Position: ON-OFF-ON
• Actuator: Bat Shaped
• Rating: 1½ HP, 125-250 VAC, 20A/125-277 VAC
• Color: Chrome
• Height: 5 in
• Length: 1 in
• Width: 2.8 in
• Weight: 0.126 lb
• UPC: 032076021245

Features

• Versatile DPDT configuration for multiple circuit control
• Standard mounting in ½" diameter hole with hex nut for secure installation
• Suitable for industrial equipment, emergency lighting, and various electrical applications
• Durable chrome finish for corrosion resistance
• Compatible with screw terminal connections for reliable wiring
