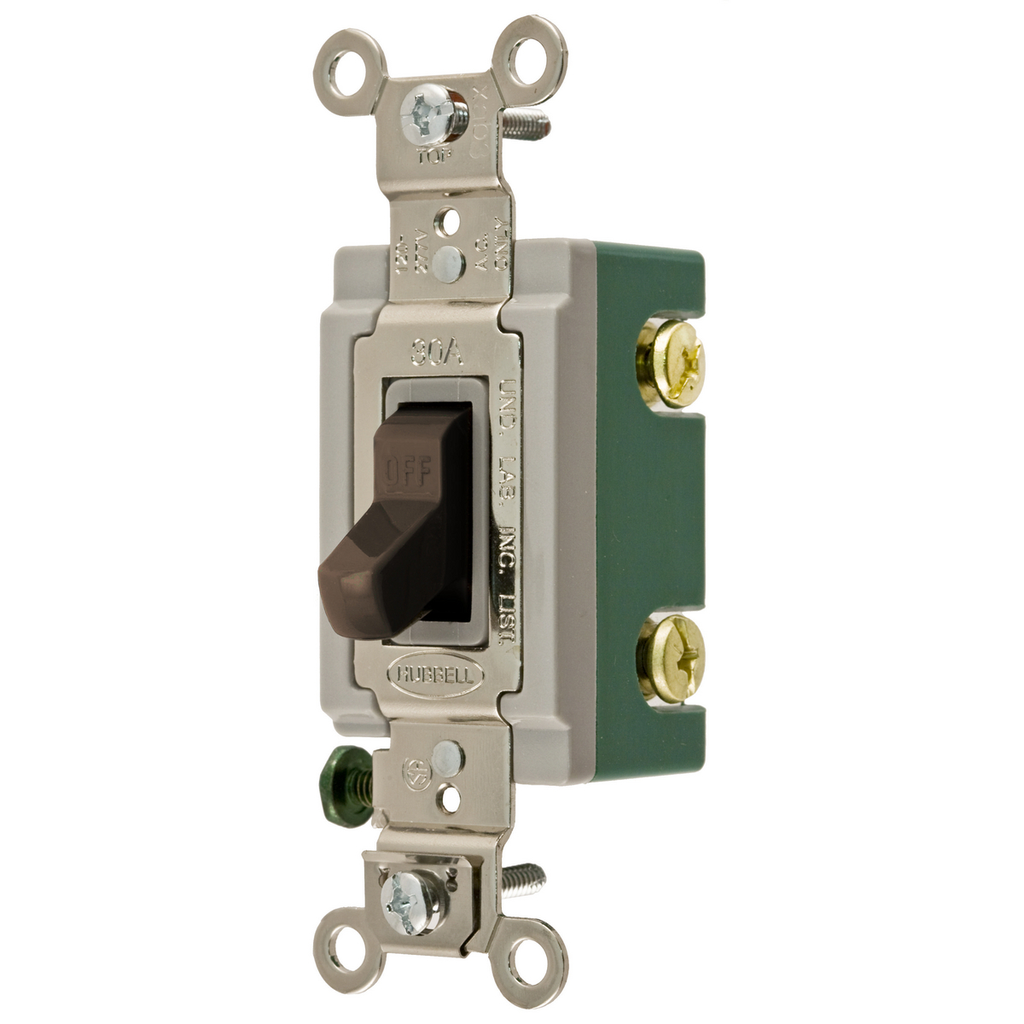

Double Pole 30A Toggle Industrial Grade, 120/277V - Heavy Duty Toggle Switch

This double pole toggle switch is designed for industrial-grade electrical applications, offering reliable switching capabilities at 30 amperes and 120/277 volts AC. Suitable for use in lighting solutions and general purpose electrical circuits, it supports back and side wiring methods. This product is ideal for electrical distributors and switchgear suppliers requiring robust, heavy-duty toggle switches for indoor dry environments.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBL3032
• Current Rating: 30 amperes
• Voltage Rating: 120/277V AC
• Number of Poles: Double Pole
• Contact Configuration: Two Position
• Connection Type: Back and Side Wired
• Mounting Type: Screw Mount
• Operating Cycles: 50,000 Cycles
• Contact Rating: Per UL 20
• Color: Brown
• Width: 1.9 in
• Product Weight: 0.25 lbs
• Environmental Conditions: Indoor Dry unless protected by additional means
• Country of Origin: China

Features

• Extra heavy duty industrial grade construction for durability
• Positive snap action toggle for reliable switching
• Back and side wired connections for installation flexibility
• General purpose AC switch suitable for lighting controls and other electrical applications

Downloads & Links

• Catalog Page Asset Reference
• Warranty Document Asset Reference
• HBL3032 AutoCAD Drawing
• Spec Sheet
• Sales Drawing Asset Reference
• Catalog Full Asset Reference
• Installation Manuals Asset Reference
