DOE 2016 Efficient Transformer, Three-phase, PV: 480V, Taps: 2 at +2.5% FCAN, 4 at -2.5% FCBN, SV: 208Y/120V, 150°C, 15 kVA, Al windings
SKU: #169402
Part: #V48M28T1516
UPC: 786680147517
DOE 2016 Efficient Transformer, Three-phase, PV: 480V, Taps: 2 at +2.5% FCAN, 4 at -2.5% FCBN, SV: 208Y/120V, 150°C, 15 kVA, Al windings
SKU: #169402
Part: #V48M28T1516
UPC: 786680147517
Description

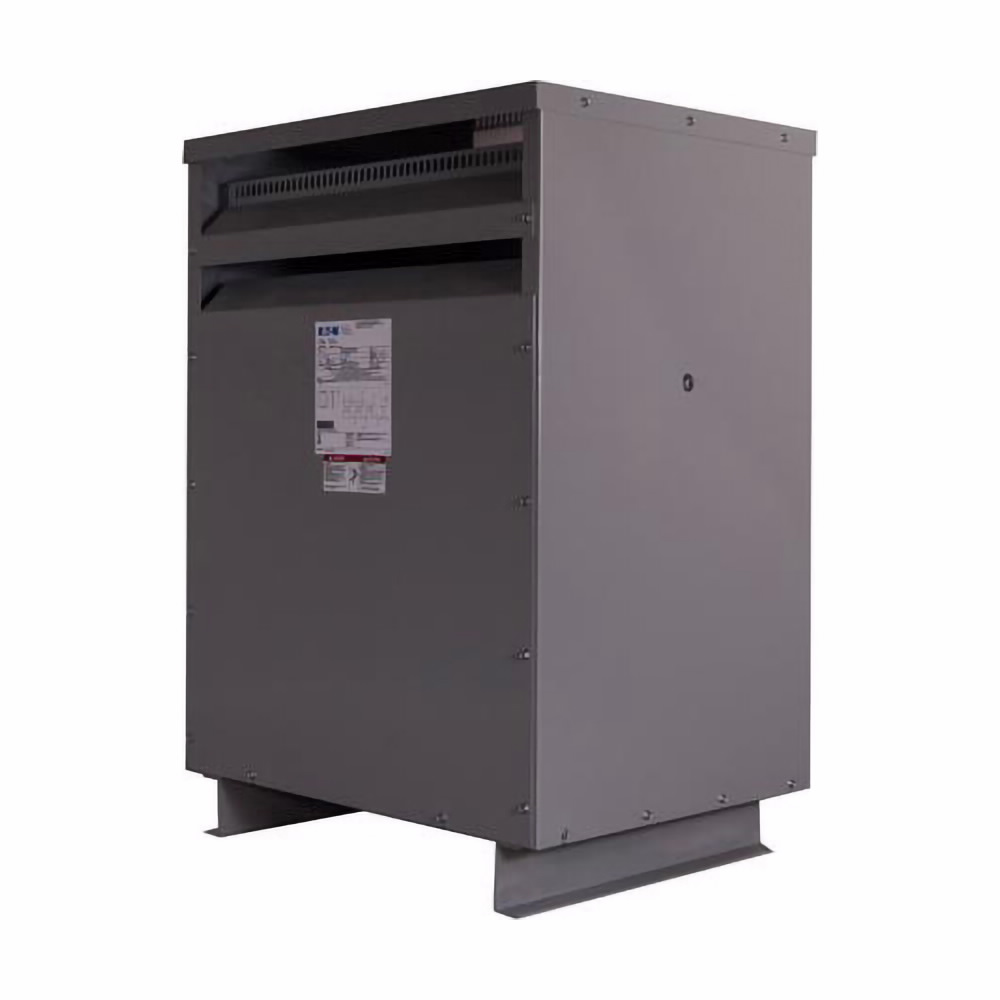

DOE 2016 Efficient Transformer, Three-phase, 15 kVA Aluminum Windings
This DOE 2016 compliant three-phase dry-type transformer by Eaton is designed for low-voltage electrical distribution applications. Optimized to meet federal energy efficiency standards effective January 1, 2016, it is suitable for commercial and industrial electrical distributors and lighting solutions requiring reliable wire and cable management and switchgear supply. It features aluminum coil material and is built to operate at 60 Hz with a 150°C temperature rise and a 220°C insulation system.
Specifications
- Manufacturer: Eaton
- Model Number: V48M28T1516
- Power Rating: 15 kVA
- Number of Phases: 3
- Primary Voltage: 480V
- Secondary Voltage: 208Y/120V
- Taps: 2 at +2.5% FCAN, 4 at -2.5% FCBN
- Insulation System Temperature: 220°C
- Temperature Rise: 150°C
- Coil Material: Aluminum
- Enclosure Rating: NEMA 2 (ventilated, drip-proof)
- Dimensions (W x H x L): 21.88 in x 28 in x 17.75 in
- Product Weight: 258 lbs
- Frame Size: 939
Features
- DOE 2016 energy efficient, optimized for 35% nameplate loading
- UL listed and cUL Energy Verified for compliance with federal energy standards
- Meets NEMA ST-20 sound level requirements for low noise operation
- Fungus-resistant varnish on core and coil to seal out moisture and contaminants
- Grounded core and coil assembly with visible flexible copper ground strap per NEC requirements
- Suitable for indoor use and outdoor use with weather shields installed
- Short-term overload capability per ANSI standards
- Seismically qualified exceeding Uniform Building Code (UBC) and California Code Title 24
