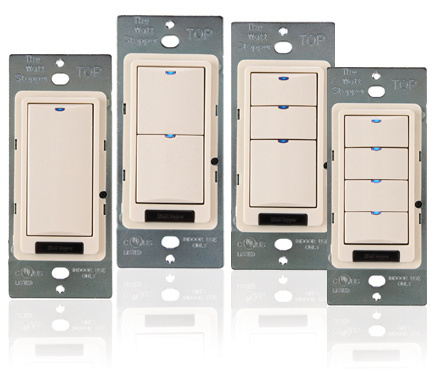

DLM Wall Switch, 4-Button w/IR, White - Digital Lighting Control

The DLM Wall Switch, 4-Button w/IR, White by WattStopper is a low voltage manual on/off control device designed for energy-saving applications within Digital Lighting Management (DLM) systems. It enables control of one or more loads from multiple locations and is suitable for integration by electrical distributors and switchgear suppliers focused on advanced lighting solutions. This switch supports multi-way control and wireless configuration through an infrared transceiver, enhancing flexibility in wire and cable installations.

Specifications

• Manufacturer: WattStopper
• Manufacturer Part #: LMSW-104-W
• Color: White
• Dimensions: 4.49 in (Height) x 2.0 in (Width) x 2.24 in (Depth)
• Product Weight: 0.25 lbs
• Input Voltage: 24 VDC from DLM local network
• Current Consumption: 5 mA
• DLM Local Network Connection: 2 RJ45 ports
• Number of Buttons: 4, each with LED status indicator
• Operating Conditions: Indoor use only; 32-131¬∞F (0-55¬∞C), 5-95% RH non-condensing
• Certifications: UL and cUL listed, FCC Part 15 compliant
• Country of Origin: China
• Warranty: Five year

Features

• Low voltage pushbutton switch for control of multiple loads
• Customizable buttons with LED status indicators for load or scene status
• Infrared (IR) transceiver enabling two-way wireless configuration and remote control
• Plug n‚Äô Go automatic configuration and Push n‚Äô Learn personalization for easy setup
• Compatible with Digital Lighting Management integrated control system
• Supports multi-way control for flexible lighting arrangements
• Fits standard single gang boxes with decorator wall plates
• Meets RoHS material restrictions and available in BAA/TAA-compliant models
