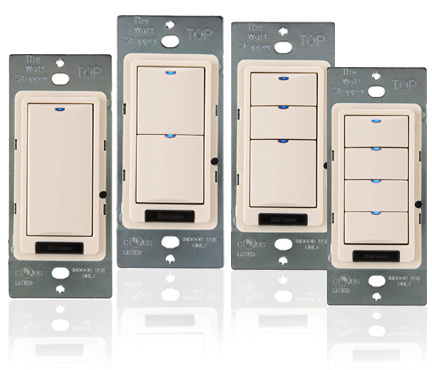

DLM Wall Switch, 3-Button w/IR, White - Digital Lighting Management Switch

The DLM Wall Switch, 3-Button w/IR, White, part of the WattStopper LMSW-100 Series, is a low voltage device designed for energy-saving manual on/off control of one or more loads from one or more locations. Integrated within a Digital Lighting Management (DLM) system, it enables precise control of connected lighting loads via DLM room controllers. This switch is suitable for applications including offices, conference rooms, and classrooms where multi-way control and energy efficiency are priorities. Electrical distributors and lighting solutions providers will find this product compatible with wire and cable systems using Cat 5e cables and RJ45 connectors, facilitating easy network integration without wiring errors.

Specifications

• Manufacturer: WattStopper
• Manufacturer Part #: LMSW-103-W
• Color: White
• Input Voltage: 24 VDC from DLM local network
• Current Consumption: 5 mA
• Network Connection: 2 RJ45 ports for DLM local network
• Number of Buttons: 3, each with LED status indicator
• Operating Conditions: Indoor use only; 32-131°F (0-55°C); 5-95% RH non-condensing
• UL and cUL Listed
• FCC Part 15 Compliant
• Product Weight: 2.82 lbs
• Country of Origin: China
• Warranty: Five year

Features

• Low voltage pushbutton switch for control of multiple loads
• Customizable buttons with LED status indicators showing load or scene status
• Infrared (IR) transceiver enabling two-way wireless configuration and remote control
• Plug n’ Go automatic configuration with Push n’ Learn personalization
• Sleek single gang device compatible with decorator wall plates
• Supports multi-way control for enhanced flexibility
• Each button can dim assigned loads (except LMSW-101 model)
• Meets RoHS material restrictions and offers BAA/TAA-compliant models
• Plugs into Digital Lighting Management system using Category 5e cables with RJ45 connectors
