DLED6R11YN LED Retrofit Downlight by RAB - Lighting Solutions

The DLED6R11YN is a compact LED retrofit downlight designed for efficient illumination in existing 6-inch housings. Manufactured by RAB, this fixture offers a reliable lighting solution for electrical distributors and switchgear suppliers seeking high-quality retrofit options. It delivers a balanced output suitable for commercial and residential lighting applications, ensuring energy efficiency and color accuracy.

Specifications

• Manufacturer: RAB
• Model Number: DLED6R11YN
• Input Wattage: 11 watts
• Lumens Output: 898 lumens
• Efficacy: 85 lumens per watt
• Color Temperature: 3500 kelvins
• Color Accuracy: 93 color rendering index (CRI)
• Lens Material: Frosted Acrylic
• Finish: Polyester Powder Coating
• Operating Ambient Temperature: -20 degrees Celsius
• Product Weight: 1.1 lbs

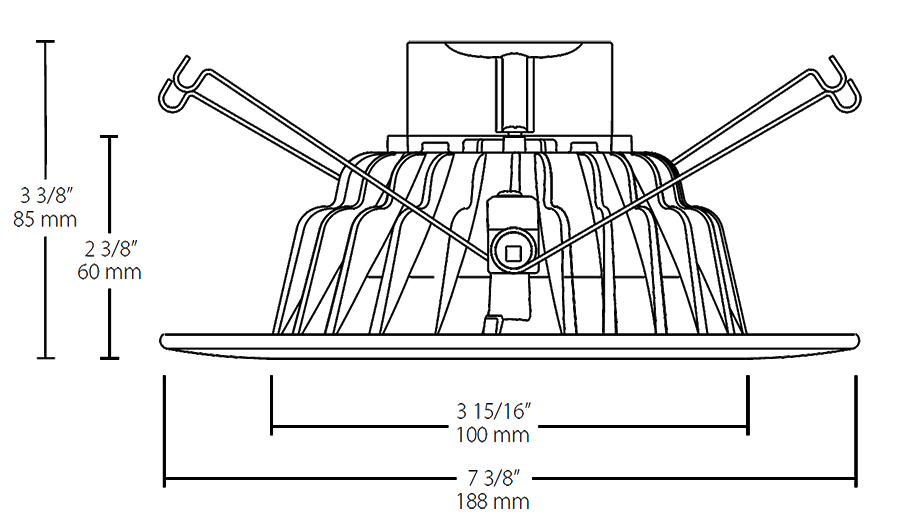

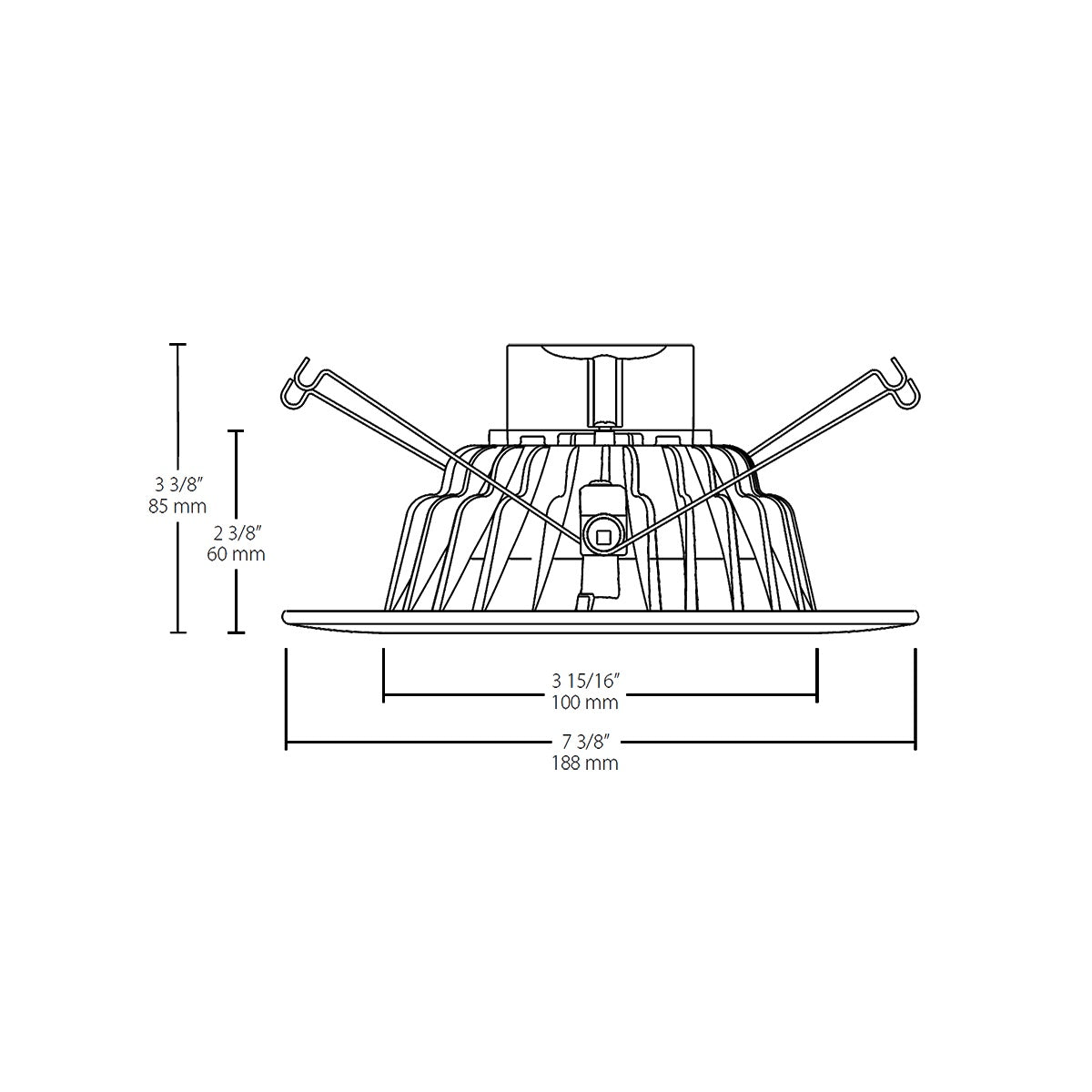

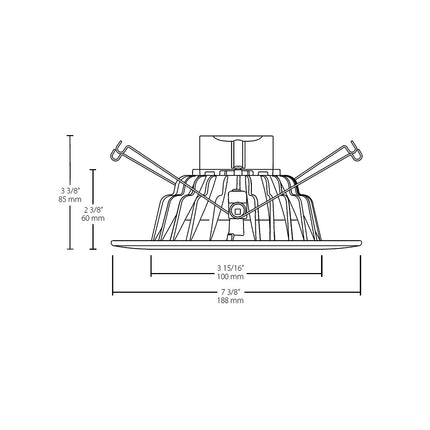

• Dimensions: Diameter 7 3/8" (188 mm), Height 3 3/8" (85 mm)

Features

• Designed for retrofit in existing 6-inch housings with E26 Edison screw-base socket
• High color rendering index (CRI 93) for accurate color appearance
• Energy-efficient LED technology with 85 lumens per watt efficacy
• Durable polyester powder-coated finish for long-lasting protection
• Frosted acrylic lens for smooth and diffused light output
• Operates reliably in ambient temperatures down to -20°C
• Easy installation with torsion spring arms for secure mounting
• Compatible with most forward phase incandescent dimmers

Downloads & Links

• Instructions
• LM79
• Spec Sheet
