Morris Products
Direct Burial Lay-In Connectors For Copper Conductors Tin Plated #4 to #14
SKU: #276649
Part: #90573
UPC: 601986905732
Morris Products
Direct Burial Lay-In Connectors For Copper Conductors Tin Plated #4 to #14
SKU: #276649
Part: #90573
UPC: 601986905732
Description

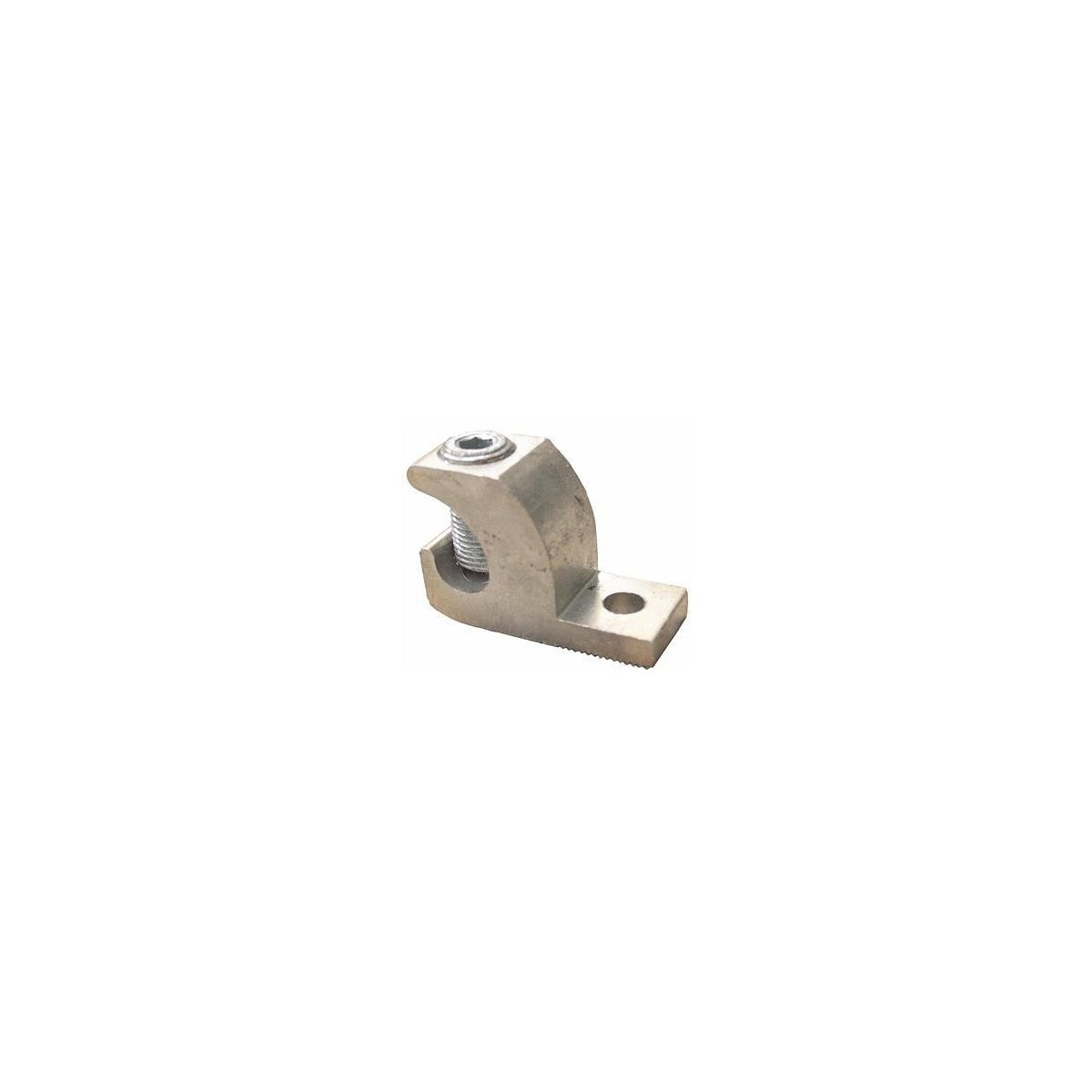

Direct Burial Lay-In Connectors For Copper Conductors Tin Plated #4 to #14 – Copper Lay-In Connector
The Direct Burial Lay-In Connector is designed for secure electrical connections in direct burial applications. Manufactured from high conductivity electrolytic copper with electro-tin plating, it supports copper conductors ranging from #14 to #4 AWG. This product is suitable for use in pool equipment, ground grids, conduit grounds, and solar installations, making it a reliable component for electrical distributors and switchgear suppliers focused on durable wire and cable connections in lighting solutions and grounding systems.
Specifications
- Material: Pure Electrolytic Copper
- Screw Type: Stainless Steel
- Screw Size: 0.26"
- Wire Range: #14 AWG to #4 AWG
- Length: 0.78 in
- Height: 1.08 in
- Width: 0.38 in
- Voltage Rating: 600 V
- UL Certification: UL 467D Direct Burial Listed
- CSA Certification: Yes
- Box Quantity: 100
Features
- High strength, high conductivity copper alloy construction
- Electro-tin plated for corrosion resistance
- Stainless steel set screws for secure fastening
- Open face lay-in design for easy installation
- Rated for direct burial in earth and concrete
- Compatible with pool, equipment, ground grid, conduit ground, and solar applications
