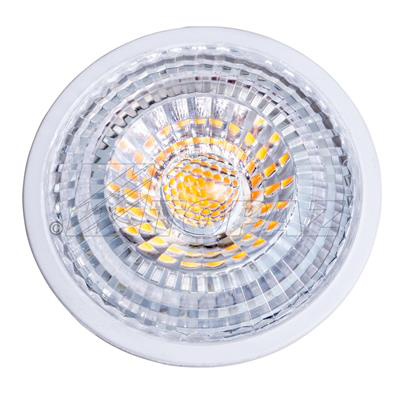

Dimmable LM16 LED Mini-Reflector 3000K – Energy Efficient LED Lighting

The Dimmable LM16 LED Mini-Reflector 3000K by Southwire is a compact, energy-efficient lighting solution designed for track lighting, displays, and accent lighting applications. This LED lamp provides a modern alternative to traditional incandescent or halogen lamps, offering longer life and advanced thermal management for cool-to-touch operation. Suitable for use with electronic or magnetic low voltage power supplies, it supports dimming down to 10% for enhanced energy savings and ambiance control. Ideal for electrical distributors and lighting solutions providers focusing on wire and cable and switchgear supply.

Specifications

• Color Temperature: 3000K
• Wattage: 6.5W
• Lumens: 500
• Beam Angle: 35°
• Input Voltage: 12VAC
• Color Rendering Index (CRI): 80
• Functional Life (L70): 25,000 hours
• Minimum Start Temperature: -4°F
• Base Type: GU5.3
• Product Weight: 0.1448 lbs
• Dimensions (Maximum Overall Length): 1.87 inches

Features

• Long life—up to 10 times longer than traditional incandescent or halogen lamps
• Advanced thermal management for cool-to-touch operation
• Dimmable to 10% for additional energy savings and ambiance control
• RoHS compliant and mercury free
• Compatible with electronic or magnetic low voltage power supplies
• Suitable for use in enclosed fixtures
• 5-year warranty

Downloads & Links

• Transformer Compatibility-LED 7W MR16
• Spec Sheet
