Digital PIR Corner Mount Sensor, high density lens - Occupancy Sensor for Lighting Control

The WattStopper LMPX-100 Digital PIR Corner Mount Occupancy Sensor utilizes passive infrared (PIR) technology with a high density lens to detect occupancy for energy-efficient control of lighting and plug loads. Designed for integration within WattStopper’s Digital Lighting Management (DLM) system, this sensor is suitable for applications in large offices, computer rooms, classrooms, warehouses, and open office environments where precise occupancy detection is essential. It supports electrical distributors and lighting solutions providers by enabling advanced control of lighting and plug loads through digital networking and wireless configuration.

Specifications

• Input Voltage: 24VDC from DLM network
• Current Consumption: 7mA
• Network Connection: 1 RJ45 port via RJ45 plug and coupler (included)
• Operating Conditions: Indoor use only; 32-104°F (0-40°C); 5-95% RH, non-condensing
• UL and cUL Listed
• FCC Part 15 Compliant
• Five Year Warranty
• Product Weight: 3.5 lbs
• Dimensions: 4.75" (H) x 3.0" (W) x 2.4" (D)
• Country of Origin: China

Features

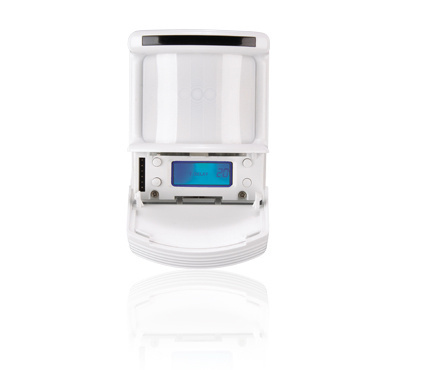

• Digital sensor with LCD display and programming pushbuttons behind a snap-down cover for easy access and configuration
• Passive infrared sensor with high density lens providing coverage of desktop activity up to 1,000 square feet
• Compact design mounts easily on wall or ceiling
• Infrared (IR) transceiver enables wireless configuration and remote control via LMCT-100-2 wireless tool
• Plug n’ Go™ automatic configuration for quick installation and energy savings
• Push n’ Learn™ functionality allows customization without tools or PC
• Component of WattStopper’s Digital Lighting Management integrated control system
• Detection Signature Processing technology eliminates false triggers and provides immunity to RFI and EMI
• Sensor coverage tested to NEMA Guide Publication WD 7-2000
• BAA/TAA-compliant models available
• Easy reconfiguration of load assignments and sensor parameters via pushbuttons, LCD screen, or wireless configuration
