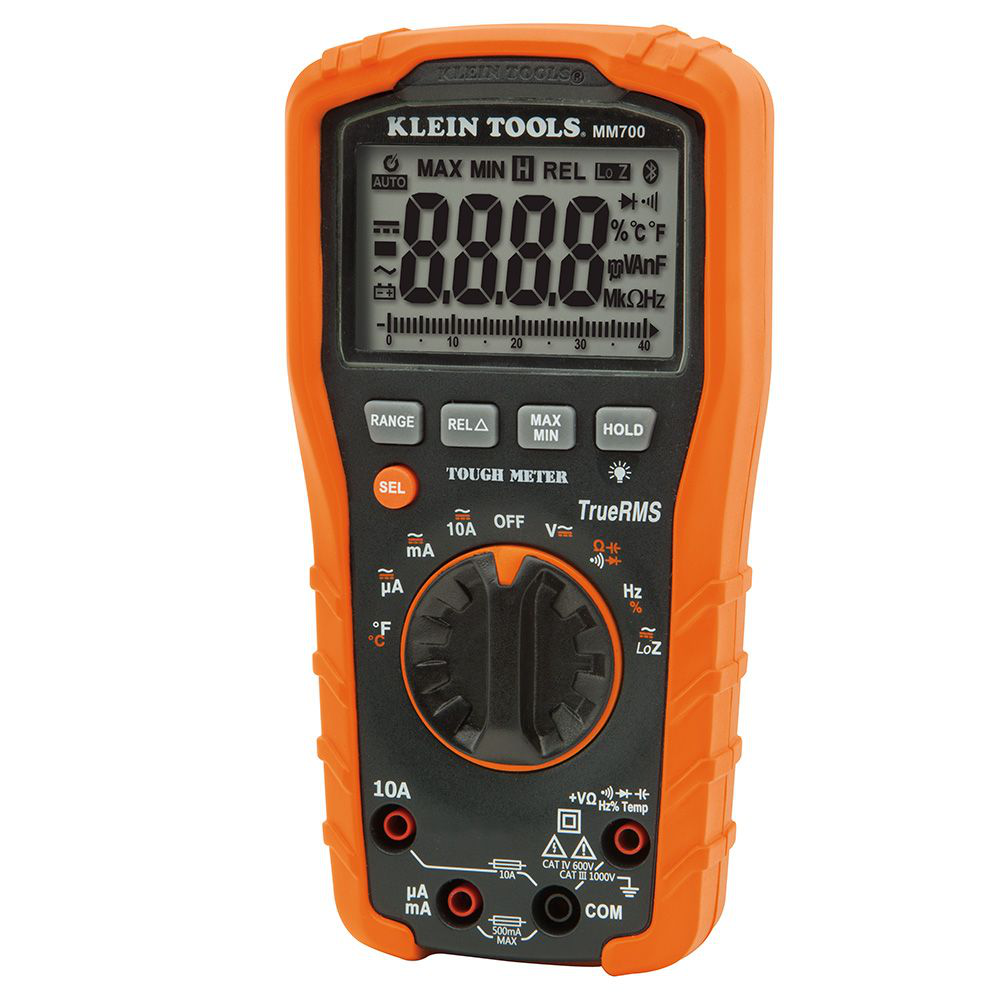

Digital Multimeter TRMS/Low Impedance, 1000V – Klein Tools Electrical Tester

The Klein Tools MM700 is an auto-ranging true root mean square (TRMS) digital multimeter designed for precise measurement of AC/DC voltage, AC/DC current, and resistance. Ideal for electrical distributors and switchgear suppliers, this meter also measures temperature, capacitance, frequency, duty-cycle, diodes, and continuity, making it a versatile tool for wire and cable testing and comprehensive lighting solutions diagnostics.

Specifications

• Voltage Range: AC/DC up to 1000V
• Current Range: AC/DC up to 10A
• Resistance: 40MŒ© maximum
• Capacitance: up to 4000ŒºF
• Frequency Range: 1Hz to 500kHz
• Temperature Range: -18¬∞C to 816¬∞C (0¬∞F to 1500¬∞F)
• Display Type: 3¬æ digit, 4000 count LCD with True RMS technology
• Dimensions: 7.02" (L) x 3.54" (W) x 2.10" (H)
• Weight: 1.729 lbs (14.6 oz)
• Safety Rating: CAT IV 600V, CAT III 1000V, double insulation
• Ingress Protection: IP42 (except test lead jacks)
• Drop Protection: 6.6 ft (2m)
• Operating Temperature: 14¬∞F to 122¬∞F (-10¬∞C to 50¬∞C)
• Storage Temperature: -4¬∞F to 140¬∞F (-30¬∞C to 60¬∞C)
• Standards: UL STD 61010-1, 61010-2-030, 61010-2-033; CSA C22.2 #61010-1, 61010-2-030, 61010-2-033; IEC EN 61010-1, 61010-2-030, 61010-2-033, 61326-1

Features

• Auto-ranging functionality for ease of use across multiple electrical parameters
• Low impedance (LoZ) mode to detect ghost voltages and improve measurement accuracy
• Data and range hold capabilities for stable readings
• Audible continuity and diode testing with visual indicators
• Backlit LCD display with 41-segment analog bar graph for quick visual feedback
• Relative, max/min, and duty-cycle measurement modes
• Auto power off after approximately 30 minutes of inactivity to conserve battery life
• Includes K-type thermocouple adapter for temperature measurements up to 1500¬∞F (816¬∞C)
• Robust construction with IP42 rating and 2-meter drop protection suitable for field use
• Comprehensive safety features compliant with CAT IV 600V and CAT III 1000V ratings
