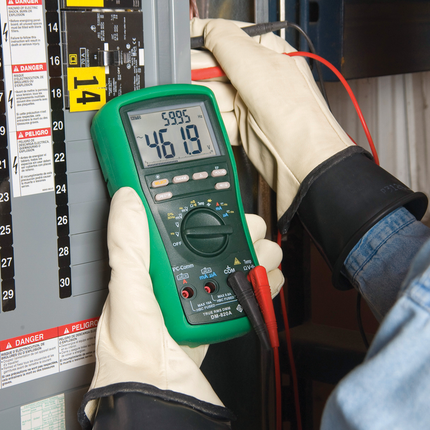

Digital Multimeter - Electrical Testing and Measurement Tool

The Greenlee Digital Multimeter is a handheld testing device designed for precise electrical measurements in various applications. Suitable for electrical distributors, lighting solutions providers, wire and cable professionals, and switchgear suppliers, this meter offers comprehensive testing capabilities including AC/DC voltage, current, frequency, resistance, capacitance, and duty cycle of logic level signals. It also supports diode testing and continuity verification with true RMS AC measurement for accurate readings on complex waveforms.

Specifications

• Manufacturer: Greenlee
• Manufacturer Part #: 52047806
• Country of Origin: Taiwan
• Product Weight: 2.38 lbs
• Dimensions (L x W x H): 11.2 in x 7.95 in x 4.5 in
• Measurement Capabilities: AC/DC voltage, AC/DC current, frequency, resistance, capacitance, duty cycle, diode check, continuity
• Display: Dual digital display with backlight and bar graph
• True RMS AC measurement for accurate readings on non-sinusoidal waveforms
• AutoCheck‚Ñ¢ low impedance mode to mask ghost voltages (DM-830A and DML-430A models)
• Data storage capability (DML-430A model) with optional computer interface
• Temperature measurement with K-type thermocouples (DM-820A, DM-830A, DML-430A)
• Additional functions: Crest capture, recording max/min/average values, dBm measurement (DM-830A)

Features

• Dual display shows two measurements simultaneously, such as AC voltage and frequency
• Backlit LCD for visibility in low-light conditions
• Beep-Jack‚Ñ¢ audible warning for incorrect test lead placement
• Bar graph display for quick detection of signal changes and faults
• Automatic power-off to conserve battery life
• Data logging and recall functions with selectable sampling intervals (DML-430A)
• AutoCheck‚Ñ¢ function for automatic selection of AC voltage, DC voltage, and resistance
• Non-contact and single-probe voltage detection (DM-820A and DM-830A)
• Robust construction suitable for professional electrical testing environments

Downloads & Links

• Owners Manual
