Digital Manual-On Single-Relay Kit, Plenum Rated Cables, White - Lighting Control Solutions

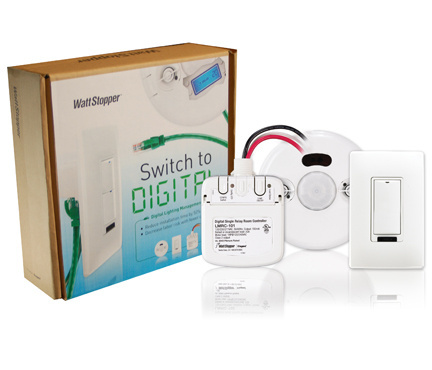

The Digital Manual-On Single-Relay Kit by WattStopper is designed for energy-efficient lighting control in commercial environments. This kit includes an LMRC-100 Series Room Controller with a single relay, an LMDC-100 Dual Technology Ceiling Mount Occupancy Sensor, an LMSW-100 Series Wall Switch with one button, and two 25-foot plenum-rated LMRJ-25 cables. It is ideal for controlling one lighting load with manual-on and automatic-off operation, meeting or exceeding energy code requirements. Suitable for use by electrical distributors and switchgear suppliers, this system supports compliance with ASHRAE 90.1, IECC, EPAct, California Title 24, and LEED projects.

Specifications

• Manufacturer: WattStopper
• Manufacturer Part #: LMKT-P101-W
• Color: White
• Dimensions: 10.23 inches (Depth) x 10.0 inches (Width) x 3.42 inches (Height)
• Product Weight: 3.05 lbs
• Country of Origin: United States
• Made in USA: Yes
• Input/Output Voltage: 120/277 VAC, 50/60 Hz
• Maximum Load Rating: 20A ballast or incandescent or 1 HP motor load
• Operating Temperature Range: 32–104°F (0–40°C)
• Occupancy Sensor Coverage: 1000 sq. ft. at 10 ft mounting height
• Switch: One button with LED status indicator
• Room Controller: UL2043 plenum rated
• Compliance: UL and cUL listed, FCC part 15 compliant, RoHS materials compliant
• Warranty: Five-year limited warranty

Features

• Plug n’ Go™ automatic configuration for quick installation and maximum energy savings
• Manual-on/automatic-off operation for single load control
• Dual technology occupancy sensor combining PIR and ultrasonic detection for comprehensive coverage
• Easy-to-use digital controls with LCD display and pushbuttons for sensor and system parameter adjustments
• Infrared (IR) transceivers for optional wireless configuration and sensor profile storage
• On/Off local override button on room controller with LED load status indicators
• Components plug together with included LMRJ cables, reducing wiring errors
• Switch buttons field-replaceable to allow custom engraving or color changes
• Zero-crossing circuitry for reliability and increased product life
• Plenum-rated cables included for installation in air handling spaces
