Die Cast Zinc Conduit Nipple 2-1/2", NPSM Threads
SKU: #328662
Part: #1108-DC
UPC: 781747911087
Die Cast Zinc Conduit Nipple 2-1/2", NPSM Threads
SKU: #328662
Part: #1108-DC
UPC: 781747911087
Total Price: $14.65 per each Sold in increments of 1 each
Description

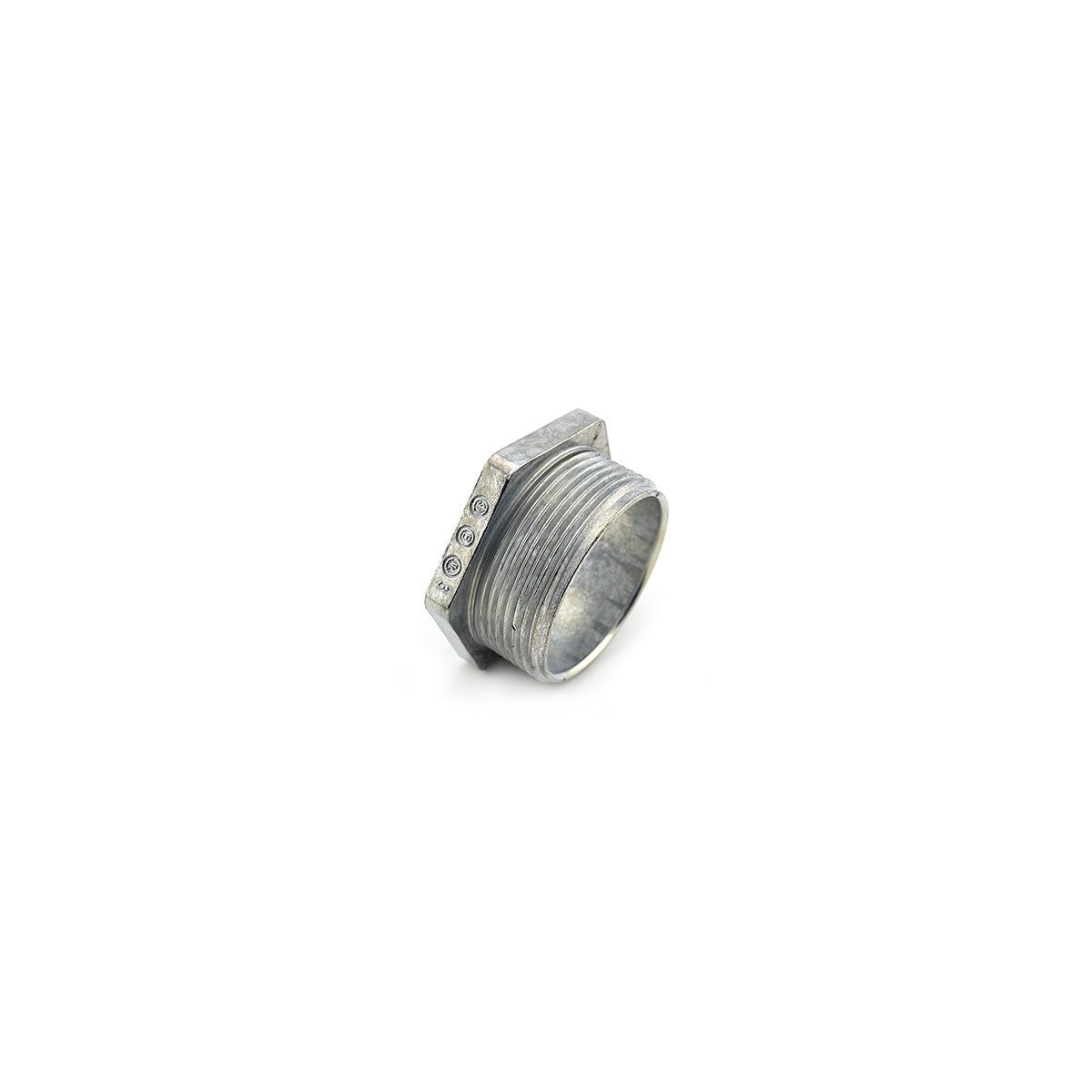

Die Cast Zinc Conduit Nipple 2-1/2", NPSM Threads
The Bridgeport 1108-DC Die Cast Zinc Conduit Nipple is designed to serve as a short raceway between enclosures when used with a locknut. Featuring NPSM threads, it ensures a pressure-tight, vibration-resistant seal between male and female threaded connections. This conduit nipple is suitable for electrical distributors and lighting solutions requiring durable wire and cable fittings. Constructed of zinc die cast material with a ball burnished finish, it provides corrosion resistance for long-term use in various environments. It meets industry standards including NEMA FB-1 and UL 514B, making it a reliable component for switchgear suppliers and electrical installations.
Specifications
- Manufacturer Part #: 1108-DC
- Material: Zinc Die Cast
- Finish: Ball burnished, mirror smooth
- Trade Size: 2-1/2"
- Length: 1.541 in
- Width: 1 in
- Thread Type: NPSM Threads
- Product Weight: 0.6120 lbs
- Country of Origin: United States
- Made in USA: Yes
- NEMA Standard: FB-1
- UL Standard: UL-514B
- UL File Number: E9391
- CSA File Number: LR39354
- Federal Specification Number: A-A-50553
Features
- Creates a pressure-tight, vibration-resistant seal when properly connected
- Corrosion-resistant zinc die cast construction for durability
- Ball burnished finish for smooth surface and enhanced protection
- Compatible with locknuts to extend conduit systems between enclosures
- Conforms to industry standards for safety and performance
