DEWALT Screwbolt Screw Anchor 5/8In X 6In – Concrete and Masonry Screw Anchor

The DEWALT Screw-Bolt+ Screw Anchor is a heavy-duty, one-piece screw anchor designed for secure fastening in concrete and masonry applications. Ideal for electrical distributors and switchgear suppliers requiring reliable anchoring solutions, it features a patented thread design compatible with standard ANSI drill bits to reduce installation torque and improve productivity. Suitable for use in normal-weight concrete, sand-lightweight concrete, concrete over steel deck, concrete masonry units (CMU), and solid clay brick, this anchor supports a range of construction and lighting solutions requiring durable wire and cable mounting.

Specifications

• Length: 6 in
• Product Weight: 0.5480 lbs
• Manufacturer Part #: PFM1411640
• Country of Origin: Taiwan
• UPC: 075352305110

Features

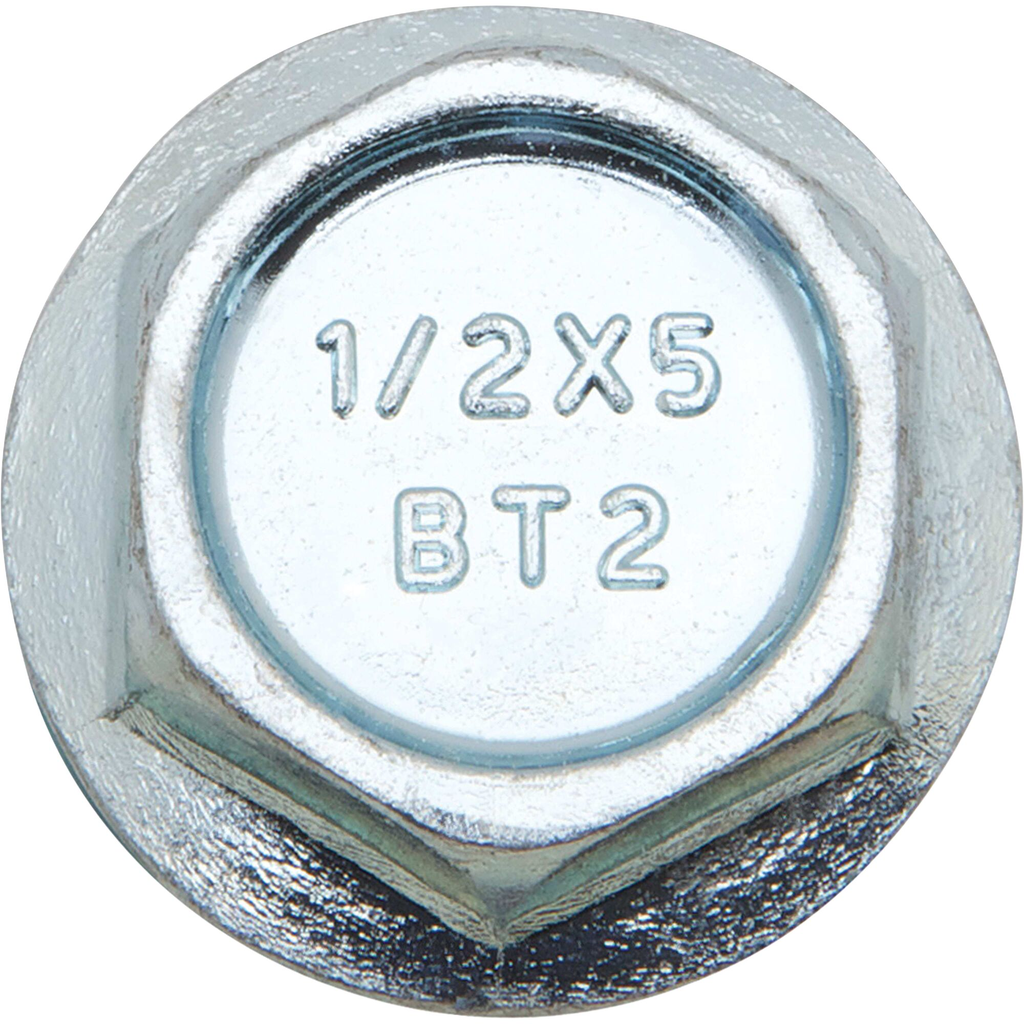

• One-piece construction with finished hex head for easy identification and removal
• Patented thread design reduces installation torque and enhances productivity
• Steel threads provide keyed engagement, allowing reduced edge and spacing distances
• Compatible with standard ANSI carbide drill bits for installation
• Available in bright zinc-plated and mechanically galvanized finishes
• Approved for cracked and uncracked concrete including seismic and wind loading (ICC-ES ESR-3889, ESR-4042)
• Integrated washer with serrations under the head secures attachments
• Designed to cut through hard concrete while maintaining ductility (bends before breaking)
• Approved for use with pressure-treated lumber when mechanically galvanized
