DEWALT Screwbolt Screw Anchor 3/4In X 6In - Concrete and Masonry Screw Anchor

The DEWALT Screwbolt Screw Anchor 3/4In X 6In is a high-performance, one-piece heavy-duty screw anchor designed for use in concrete and masonry applications. This anchor is engineered for quick and efficient installation using standard ANSI drill bits, making it suitable for electrical distributors and switchgear suppliers requiring reliable fastening solutions. It is ideal for securing fixtures in normal-weight concrete, sand-lightweight concrete, concrete over steel deck, grouted concrete masonry, and solid clay brick. The anchor features a finished hex head for easy identification and is fully removable, supporting maintenance and adjustments.

Specifications

• Manufacturer: DEWALT
• Manufacturer Part #: PFM1411800
• Size: 3/4 inch diameter x 6 inch length
• Length UOM: in
• Width: 1 inch
• Height: 1 inch
• Weight: 0.9140 lbs
• Country of Origin: Taiwan
• Anchor Material: Carbon steel
• Finish: Available in bright zinc-plated and mechanically galvanized
• Compatible Base Materials: Normal-weight concrete, sand-lightweight concrete, concrete over steel deck, concrete masonry (CMU), solid clay brick

Features

• Patented thread design reduces installation torque and enhances productivity
• Steel threads tap into the hole during installation to provide keyed engagement
• Allows reduced edge and spacing distances for flexible installation

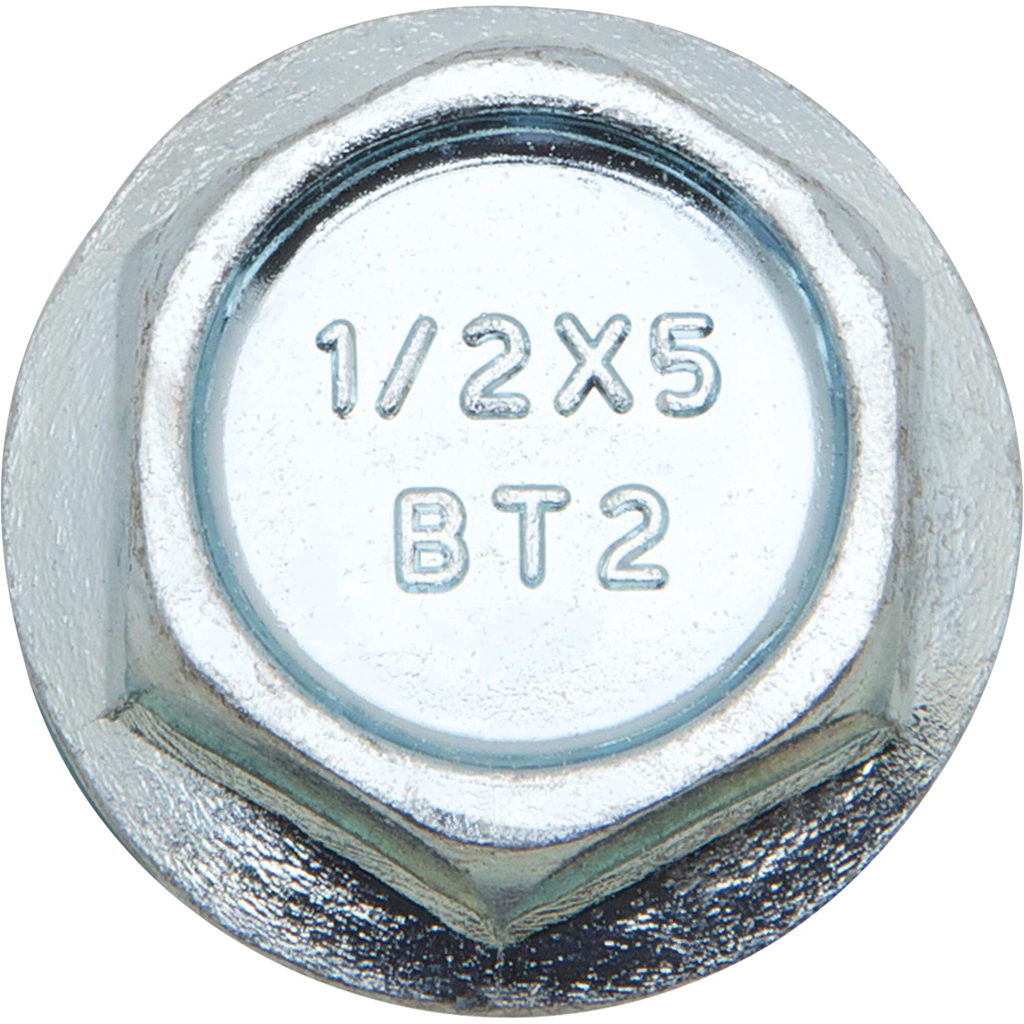

• Finished hex head with embossed size and product marks for easy identification
• Integrated washer with serrations under the head secures attachment
• Designed to cut through hard concrete and maintain ductility (bends before breaking)
• Compatible with standard ANSI carbide drill bits
• Approved for cracked and uncracked concrete including seismic and wind loading (ICC-ES ESR-3889)
• Approved for grout-filled concrete masonry units (ICC-ES ESR-4042)
• Available mechanically galvanized for use with pressure-treated lumber
