DEWALT Screwbolt Mg 3/8In X 5In - Concrete and Masonry Screw Anchor

The DEWALT Screwbolt Mg 3/8In X 5In is a high-performance, heavy-duty screw anchor designed for use in normal-weight concrete and masonry applications. Engineered to reduce installation torque and enhance productivity, it features a patented thread design compatible with standard ANSI drill bits. This screw anchor is suitable for electrical distributors, lighting solutions, wire and cable installations, and switchgear suppliers requiring reliable anchoring in concrete and masonry substrates.

Specifications

• Manufacturer: DEWALT
• Manufacturer Part #: PFM1461300
• Anchor Size: 3/8" diameter x 5" length
• Material: Carbon Steel
• Finish: Mechanically Galvanized Zinc
• Product Weight: 0.1790 lbs
• Country of Origin: Taiwan
• Base Materials: Normal-weight concrete
• Compatible Drill Bits: Standard ANSI carbide drill bits

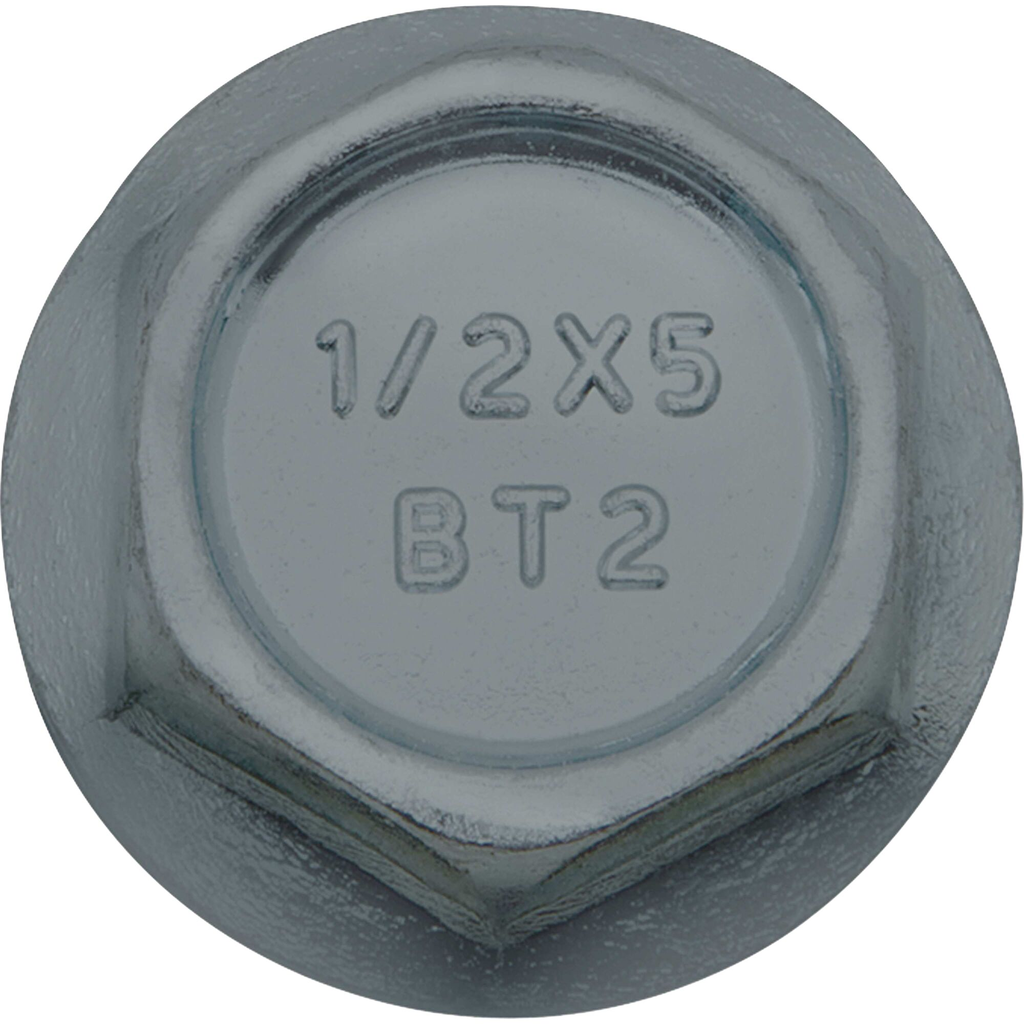

• Identification: Diameter, length, and product marks embossed on head

Features

• One-piece, heavy-duty screw anchor with finished hex head
• Patented thread design reduces installation torque for faster, easier installation
• Steel threads tap into the hole to provide keyed engagement, allowing reduced edge and spacing distances
• Fully removable and easy to identify by embossed markings on the head
• Available in bright zinc-plated or mechanically galvanized plating for corrosion resistance
• Approved for cracked and uncracked concrete, including seismic and wind loading (ICC-ES ESR-3889, ESR-4042)
• Approved for use in grouted concrete block (CMU) with no load reduction in bed joints
• Integrated washer with serrations under the head secures attachments
• Engineered steel designed to cut through hard concrete and maintain ductility (bends before breaking)
• Dust relief thread profile improves speed and reduces installation effort
• Mechanically galvanized zinc coating approved for pressure-treated lumber applications
