DEWALT 3/8-1/2In Woodknocker 2 Multi Insert Concrete Anchor

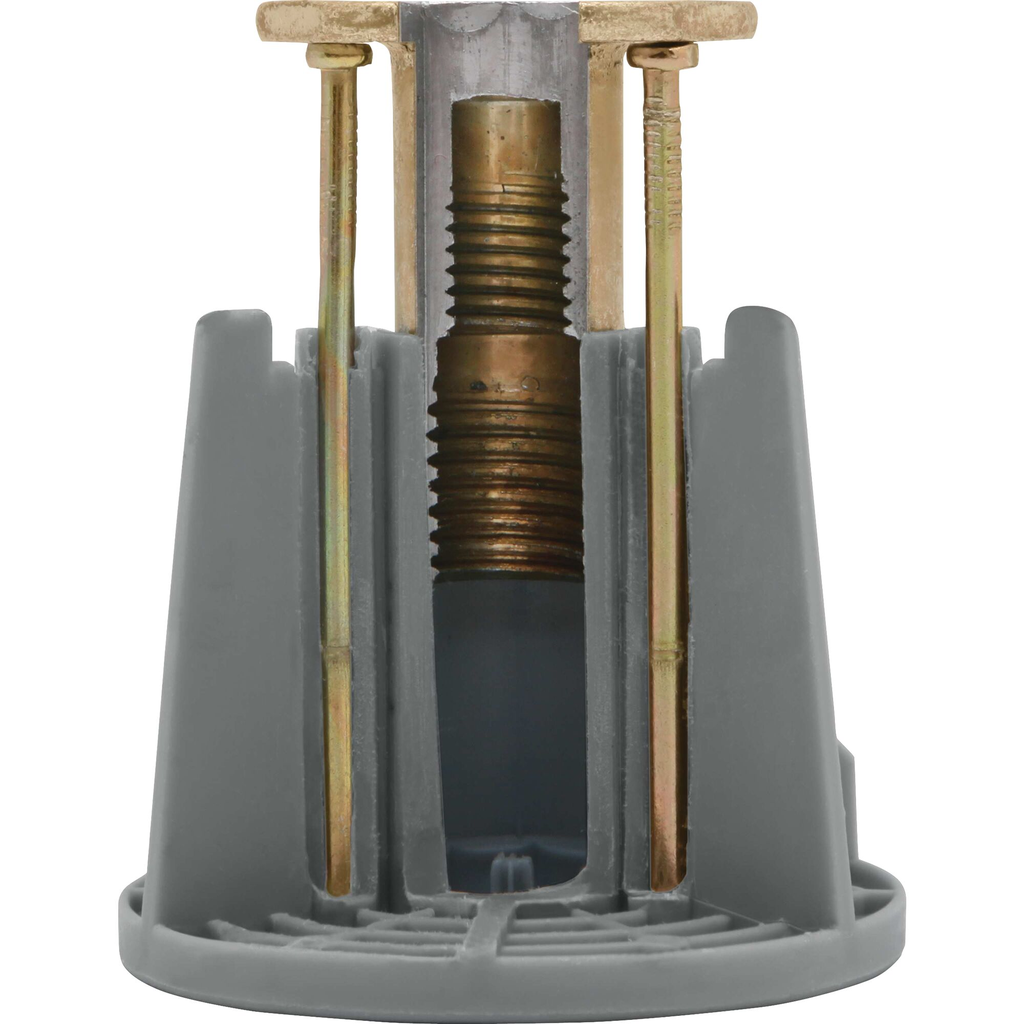

The DEWALT Wood-Knocker II+ Multi Insert is a cast-in-place concrete insert designed for use in poured concrete slabs, roof slabs, or walls. It provides reliable hanger attachments for mechanical, electrical, plumbing (MEP), and fire protection applications. This product is suitable for electrical distributors and contractors seeking durable solutions for wire and cable support or switchgear installations embedded in concrete structures.

Specifications

• Manufacturer: DEWALT
• Manufacturer Part #: PFM2521350
• Product Weight: 0.2340 lb
• Dimensions (L x W x H): 2.360 in x 2.360 in x 2.760 in
• Rod Size Compatibility: 3/8" and 1/2" threaded rods or bolts
• Country of Origin: China

Features

• Installs onto forms to support MEP and fire protection attachments in poured concrete slabs

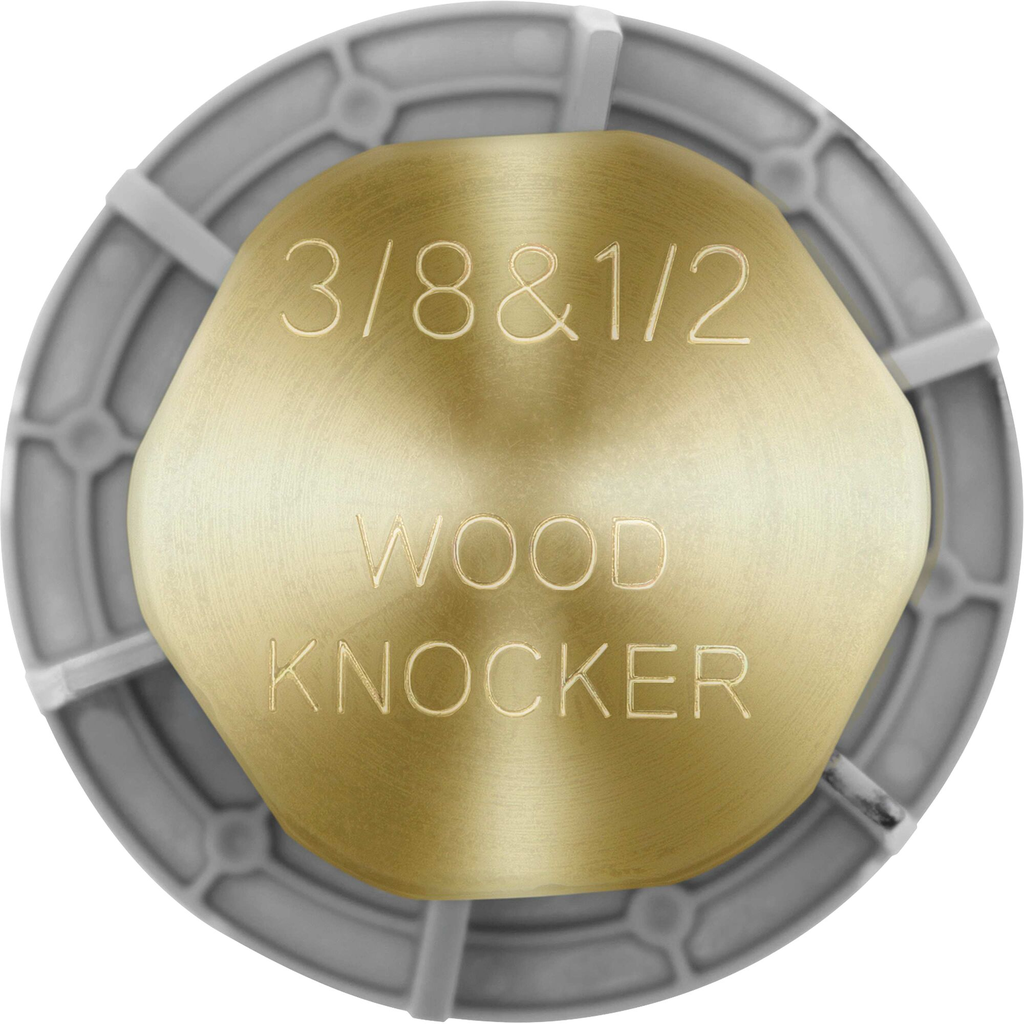

• Color-coded flange visibly embedded in concrete surface after form removal
• Allows attachment of steel threaded rods or bolts ranging from 1/4" to 3/4" diameter
• Sturdy base and rib design reduces risk of displacement during formwork handling
• Hex impact plate resists rotation within concrete during rod or bolt installation
• ICC-ES ESR-3657 approved for cracked and uncracked concrete, including seismic and wind loading
