DEWALT 3/8-1/2-5/8 In Pan-Knocker 2 No Na
SKU: #49664
Part: #PFM253381258NN
UPC: 075352320854
DEWALT 3/8-1/2-5/8 In Pan-Knocker 2 No Na
SKU: #49664
Part: #PFM253381258NN
UPC: 075352320854
Description

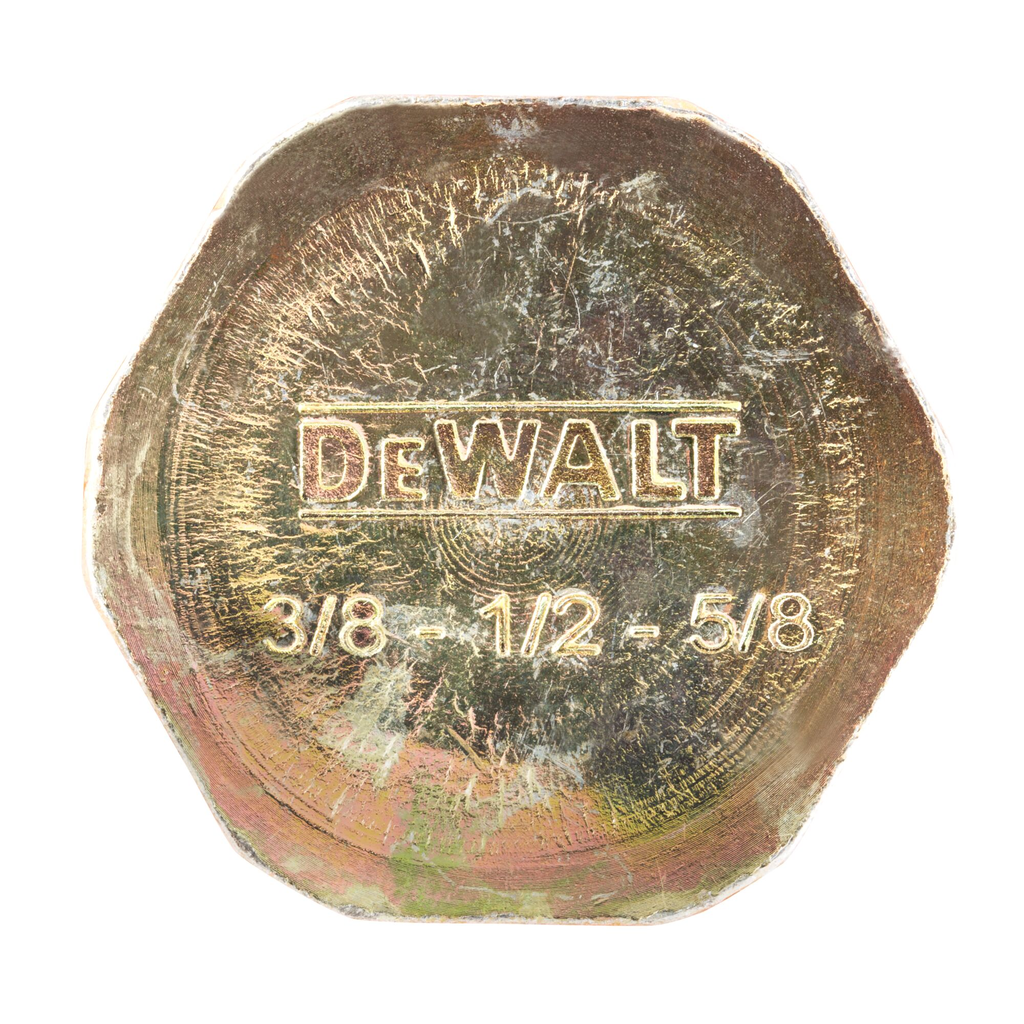

DEWALT Pan-Knocker II+ Concrete Insert for Mechanical and Electrical Applications
The DEWALT Pan-Knocker II+ is a cast-in-place concrete insert designed for secure attachment of mechanical, electrical, plumbing (MEP), and fire protection hangers in newly poured concrete slabs, roof slabs, or walls. This product is suitable for use by electrical distributors and switchgear suppliers requiring reliable mounting solutions in normal and lightweight concrete. The insert features a color-coded flange that becomes visibly embedded in concrete, allowing easy identification and installation verification.
Specifications
- Manufacturer: DEWALT
- Manufacturer Part #: PFM253381258NN
- Product Weight: 0.2340 lbs
- Dimensions: 2.36 in (Width) x 2.76 in (Height) x 2.36 in (Length)
- Rod Size Compatibility: 3/8", 1/2", and 5/8" diameter threaded rods or bolts
- Base Materials: Normal and lightweight concrete
- Anchor Material: Carbon steel and engineered plastic
- Country of Origin: China
- UPC: 075352320854
Features
- Designed for installation onto forms supporting MEP attachments in poured concrete slabs
- Color-coded flange for visible embedment and easy identification after form stripping
- Sturdy base and rib design to minimize displacement during form attachment
- Hex impact plate provides resistance to rotation during threaded rod or bolt installation
- Certified for use in cracked and uncracked concrete with seismic and wind loading recognition (ICC-ES ESR-3657, IBC & IRC 2021, 2018, 2015, 2012)
