DEWALT 1/4-3/8 In Pan-Knocker 2 Lp No Nai
SKU: #49537
Part: #PFM2501438NN
UPC: 075352320809
DEWALT 1/4-3/8 In Pan-Knocker 2 Lp No Nai
SKU: #49537
Part: #PFM2501438NN
UPC: 075352320809
Description
DEWALT 1/4-3/8 In Pan-Knocker 2 Lp No Nai Concrete Insert – Mechanical Anchors
The DEWALT Pan-Knocker II+ Low Profile concrete insert is designed for installation onto forms used to support newly poured concrete floor slabs, roof slabs, or walls. It provides secure hanger attachment points for mechanical, electrical, plumbing (MEP), and fire protection systems. The insert supports steel threaded rods or bolts ranging from 1/4" to 3/4" diameter, making it suitable for a variety of applications involving wire and cable, lighting solutions, and other electrical distributor needs. The sturdy base and rib design minimize displacement during formwork, while the hex impact plate resists rotation during installation. This product is ideal for use by switchgear suppliers and contractors requiring reliable cast-in anchoring points in normal or lightweight concrete, including seismic and wind loading conditions.
Specifications
- Manufacturer: DEWALT
- Manufacturer Part #: PFM2501438NN
- Product Weight: 0.2870 lbs
- Dimensions: 2.360 in (Width) x 2.760 in (Height) x 2.360 in (Length)
- Threaded Rod Size Compatibility: 1/4" to 3/4" diameter
- Country of Origin: China
- Base Materials: Normal and lightweight concrete
- Anchor Material: Carbon steel and engineered plastic
- Color Code: White (Low Profile Multi-thread 1/4" & 3/8")
- ICC-ES ESR-3657 approved for cracked and uncracked concrete
- UL Listed and FM Approved for fire protection services and automatic sprinkler systems
Features
- Low profile design allows installation in form pours as thin as 2.5 inches
- Color-coded flange visibly embedded in concrete for easy identification
- Sturdy base and rib design reduces chance of displacement during formwork

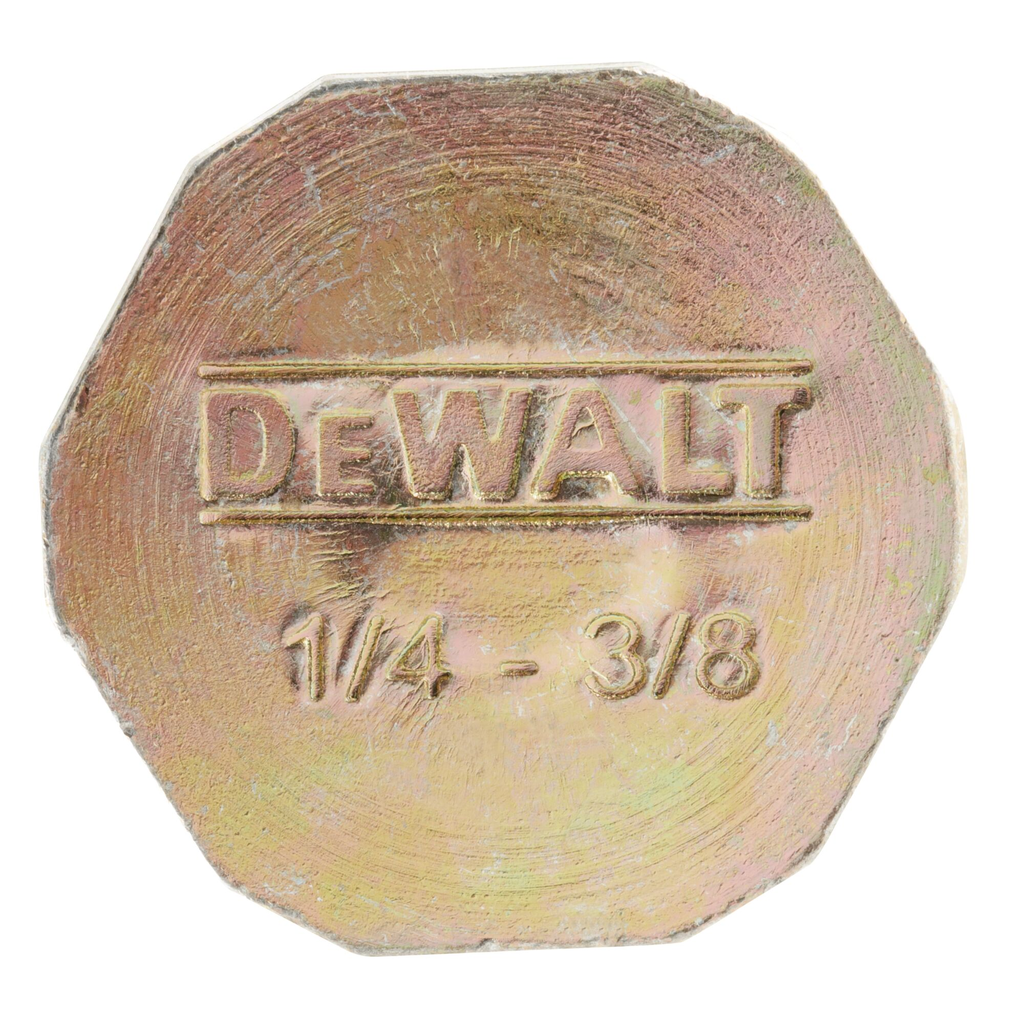

- Hex impact plate resists rotation during threaded rod or bolt installation
- Push-in thread version available for applications requiring no turning of threaded rods
- Suitable for seismic and wind loading conditions (SDC A - F)
- Multi-thread inserts allow multiple diameter rod sizes with the same part
- Fast and simple installation reduces labor costs
