Deluxe Ironing Center with Built-In Lighting

The NuTone Deluxe Ironing Center, Model AVD50N, is a built-in ironing solution designed for residential and light commercial use. It fits into a standard 49¼”H x 14¼”W x 4”D wall opening and features heavy gauge steel construction with a white finish. This ironing center integrates a ventilated metal ironing board with a heat-resistant cover, a built-in 40-watt work lamp, a safety shut-off switch, and a convenient grounded electrical outlet for the iron. It is suitable for electrical distributors and lighting solutions providers offering wire and cable and switchgear supplier products focused on integrated home utility solutions.

Specifications

• Model Number: AVD50N
• Wall Opening Dimensions: 49¬º‚Äù Height x 14¬º‚Äù Width x 4‚Äù Depth
• Electrical: 120V, 60 Hz, 15 Amps
• Material: 24-gauge steel cabinet with ventilated metal ironing board
• Ironing Board Length: 42 inches
• Board Weight Capacity: Designed for normal ironing use, not exceeding 30 lbs
• Timer: Silent 60-minute timer with manual control

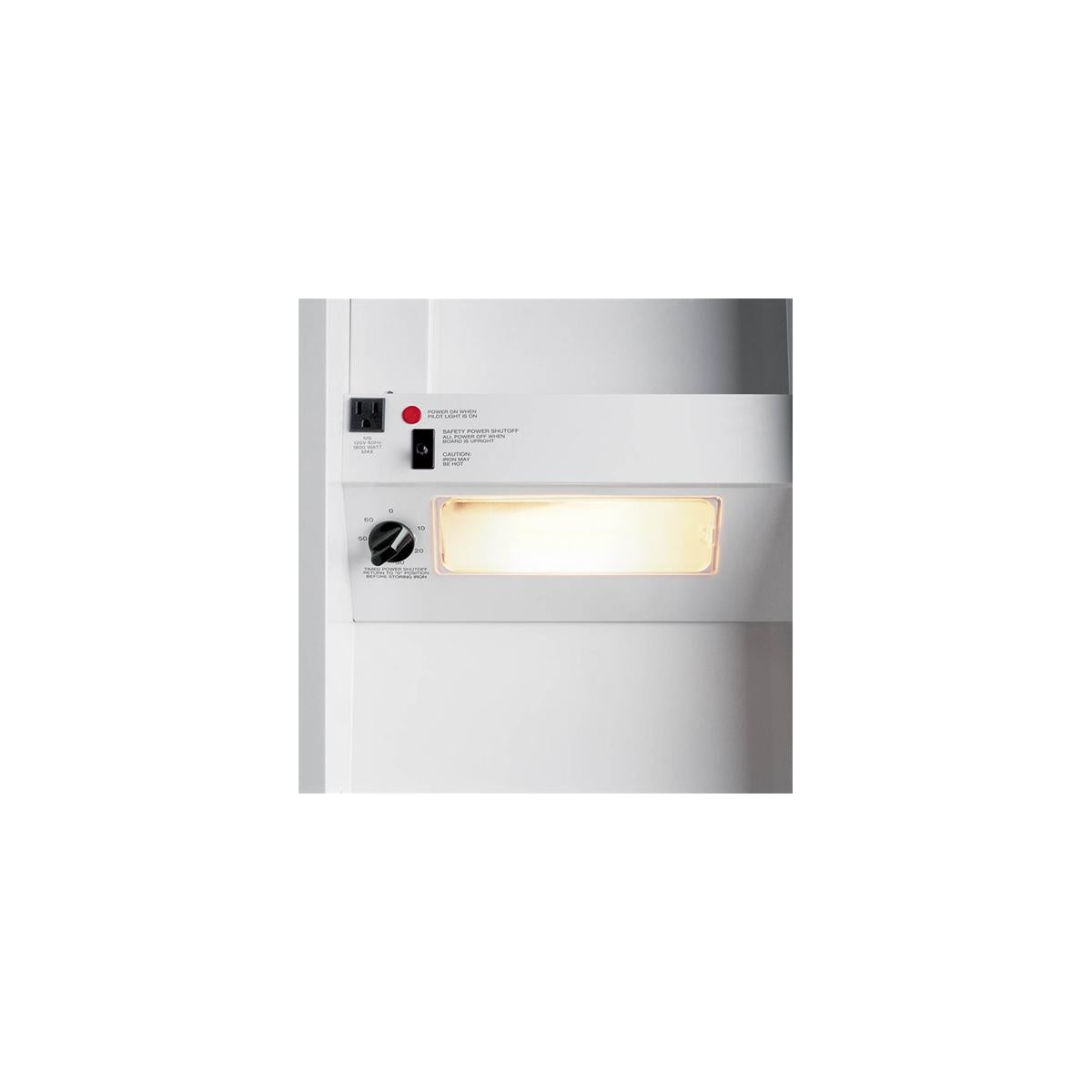

• Work Lamp: Built-in, 40 watt max bulb (not included)
• Safety Features: Safety switch with auto shutoff
• Electrical Outlet: Built-in 3-prong grounded receptacle
• Board Adjustability: 3-position height adjustment and 180-degree swivel
• Installation: Built-in or optional surface mounting with collar assembly
• Certifications: UL Listed

Features

• Heavy-duty ventilated metal ironing board with heat-resistant cover
• Safety retainer to secure ironing board in storage position
• Convenient storage shelves accepting irons up to 14¬Ω‚Äù high and items up to 11‚Äù high
• Multiple optional custom doors available separately, mountable on either side
• Magnetic door catches for secure closure
• Built-in pilot light indicating power status
• Timer-controlled power to lamp, outlet, and pilot light for user safety and energy efficiency
• Easy maintenance with wipe-clean laminated surface
