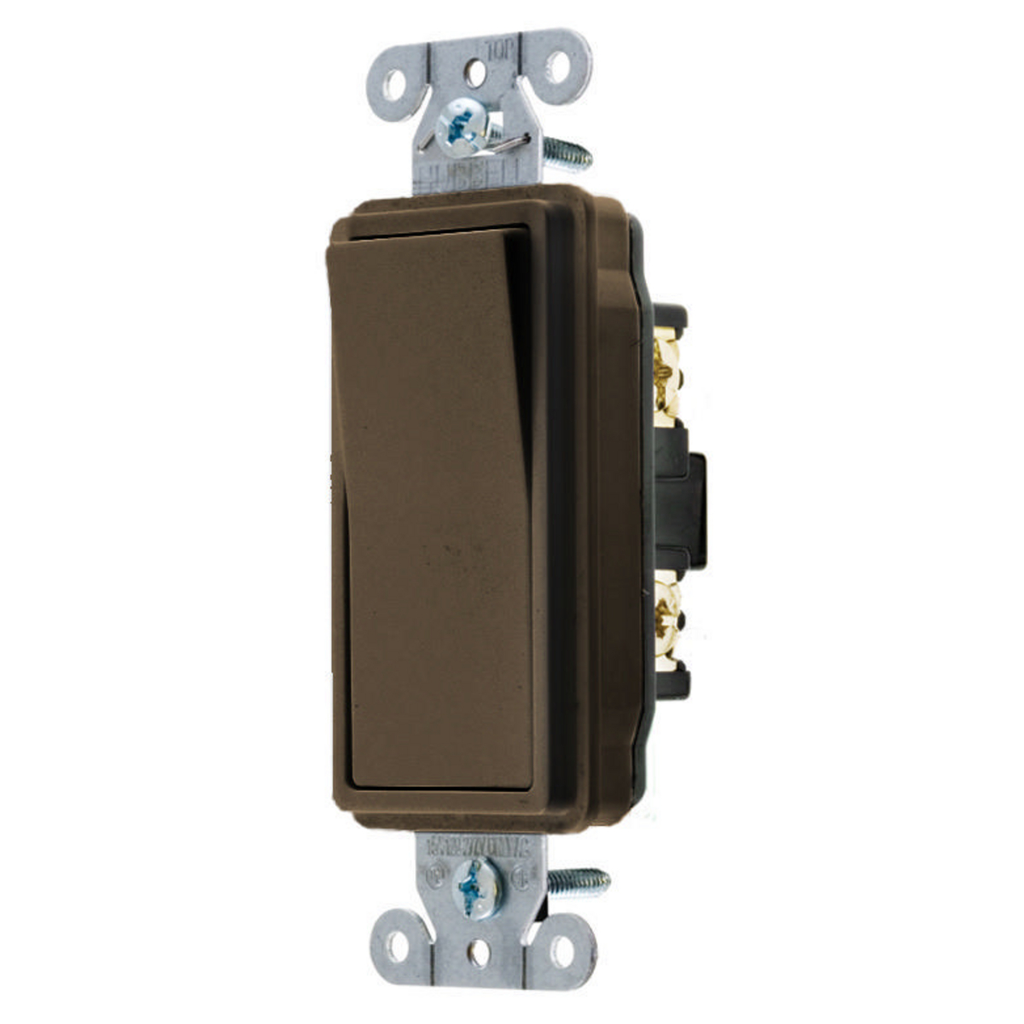

Decorator Switch, Specification Grade, Single Pole 20A 120/277V - Electrical Switch

This specification-grade decorator switch is designed for commercial heavy-duty electrical applications. It provides reliable switching for lighting and other electrical loads in indoor dry environments. Suitable for electrical distributors and lighting solutions providers, this switch supports 20 amperes at 120/277 volts AC and is ideal for wire and cable installations requiring a single-pole switch configuration. The product is manufactured by Hubbell Wiring Device-Kellems, a recognized switchgear supplier.

Specifications

• Name: Decorator Switch, Specification Grade, Single Pole 20A 120/277V
• Application: Commercial Heavy Duty
• Amperage: 20 amperes
• Current: 20 amperes
• Voltage Rating: 120/277V AC
• Number of Poles: Single Pole
• Contact Rating: Per UL 20
• Operating Cycles: 50,000 Cycles
• Material: Thermoplastic
• Mounting: Screw Mount
• Connection: Terminal Screw
• Contact Configuration: 2 Position
• Width: 2.000 in
• Product Weight: 0.2000 lbs
• Actuator: Rocker
• Action: Positive Snap
• Environmental Conditions: Indoor Dry unless protected by additional means
• Country of Origin: China
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: DS120

Features

• Specification grade for commercial heavy-duty use
• Back and side wired for flexible installation
• Durable thermoplastic construction
• Positive snap action for reliable switching
• Terminal screw connection for secure wiring
• Designed for indoor dry environments
• 50,000 operating cycles for long service life

Downloads & Links

• Sales Drawing Asset Reference
• Warranty Document Asset Reference
• Installation Manuals Asset Reference
• Load Control Application Guide
• Spec Sheet
• Catalog Page Asset Reference
• Catalog Full Asset Reference
