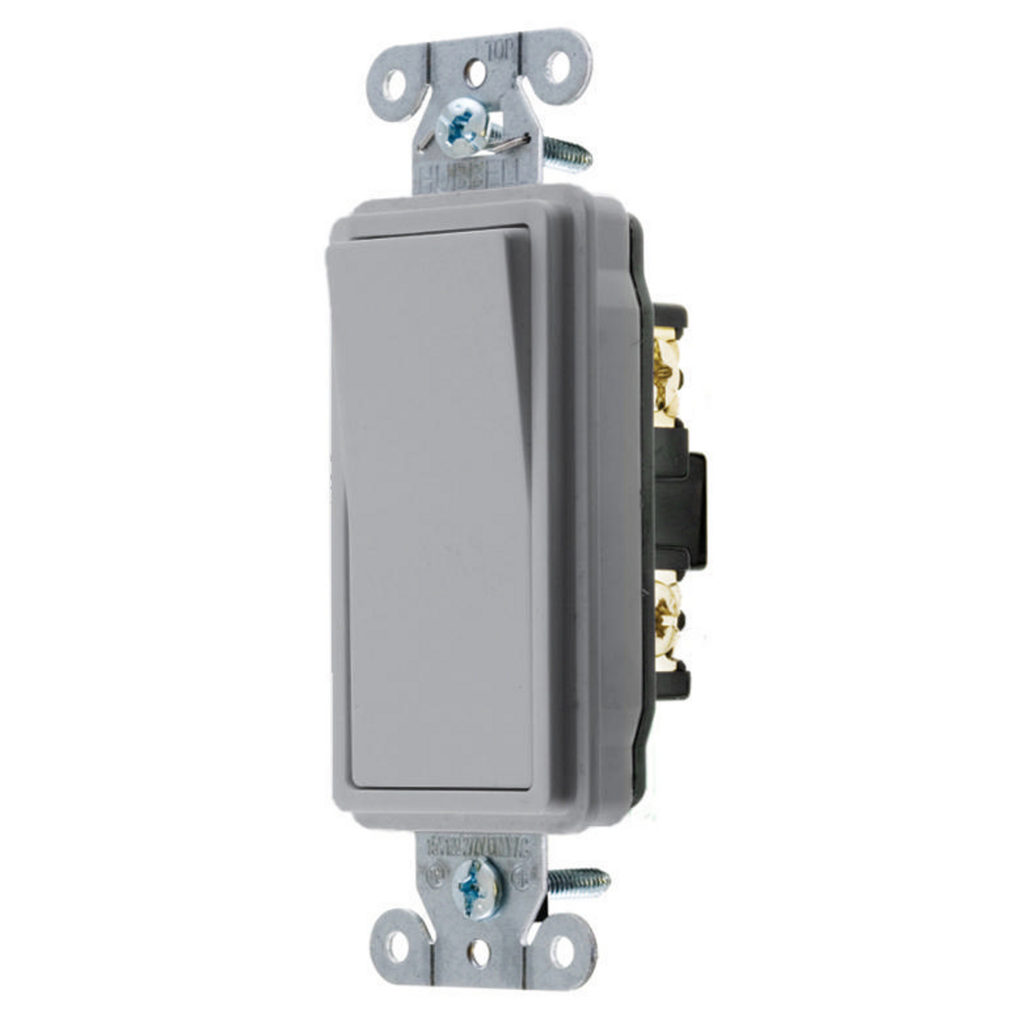

Decorator Switch, Specification Grade, Four Way 20A 120/277V
SKU: #140298
Part: #DS420GY
UPC: 783585154480
Decorator Switch, Specification Grade, Four Way 20A 120/277V
SKU: #140298
Part: #DS420GY
UPC: 783585154480
Total Price: $21.76 per each Sold in increments of 1 each
Next day delivery
Description
Decorator Switch, Specification Grade, Four Way 20A 120/277V - Electrical Switch
This Specification Grade Decorator Switch is designed for commercial heavy-duty applications, providing reliable four-way switching functionality. Suitable for indoor dry environments, it is ideal for use by electrical distributors and lighting solutions providers requiring durable, high-performance wiring devices. The switch supports 20 amperes at 120/277V AC and features back and side wiring for versatile installation.
Specifications
- Application: Commercial Heavy Duty
- Current: 20 amperes
- Amperage Rating: 20 A
- Voltage: 120/277V AC
- Contact Rating: Per UL 20
- Number of Poles: Double Pole
- Contact Configuration: 2 Position
- Action: DPDT
- Actuator: Rocker
- Material: Thermoplastic
- Mounting: Screw Mount
- Connection: Terminal Screw
- Operating Cycles: 50,000 Cycles
- Product Weight: 0.2000 lbs
- Width: 1.910 in
- Environmental Conditions: Indoor Dry unless protected by additional means
- Country of Origin: China
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: DS420GY
Features
- Thread cleaning captive mounting screw
- Steel, zinc plated bridge is corrosion resistant
- Automatic self-grounding staple
- Rocker-style actuator for ease of use
- Back and side wired for flexible installation
- UL Listed and CSA Certified
- Thermoplastic rocker material with silver alloy contacts
- Brass terminal screws and ground screw for reliable connections
- Nickel plated steel mounting bridge with auto ground staple
- Dielectric voltage withstands 1500V AC minimum for 1 minute
- Overload capacity minimum 4.8 times rated current for 100 cycles
- Temperature rise limited to 30°C maximum at rated current
- Terminal accommodations for #14 AWG to #10 AWG solid and stranded copper wire
- Flammability rating UL 94V-2
- Operating temperature range: -40°C to 75°C continuous
