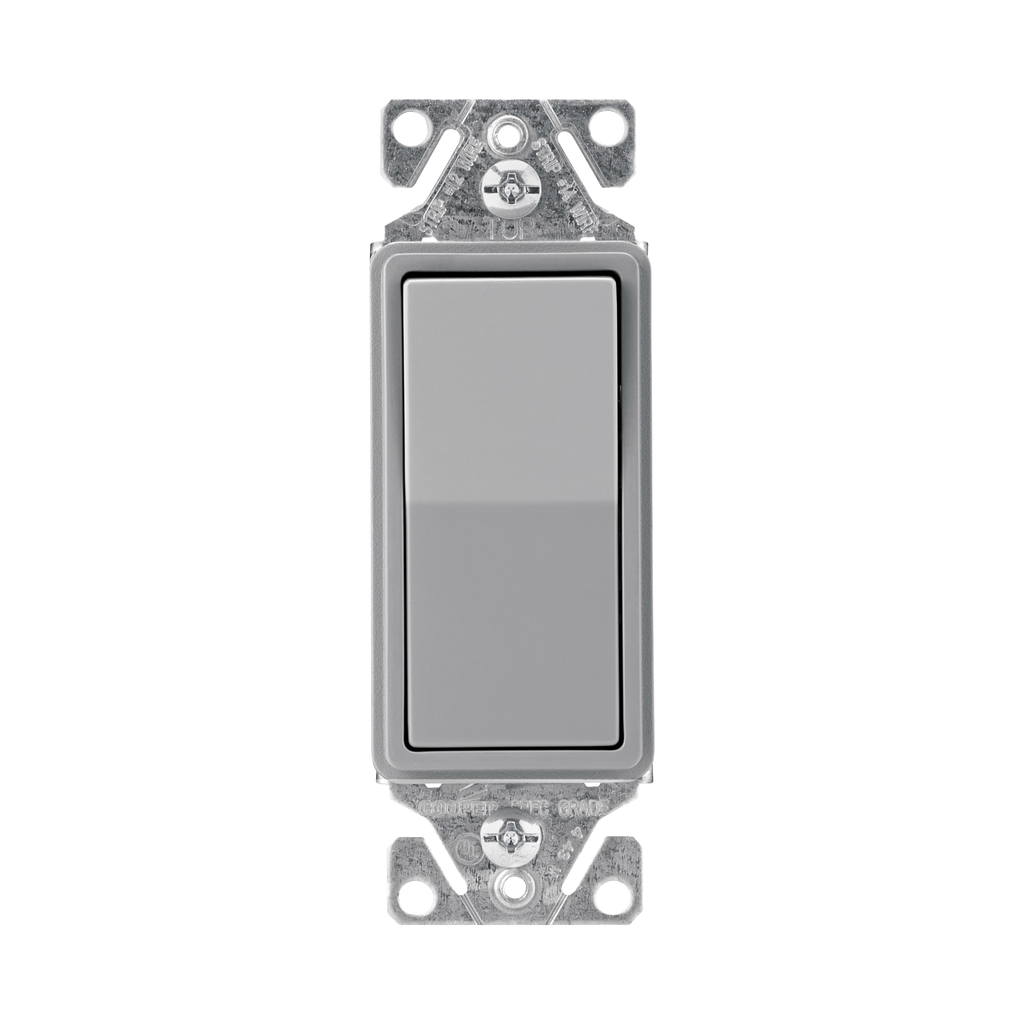

Decorator Switch Gray - Electrical Switch for Lighting Solutions

The Decorator Switch, manufactured by Cooper Wiring Devices, is a single-phase electrical switch designed for use in residential and commercial lighting applications. Rated at 15 amperes and suitable for 120/277V AC circuits, this switch is ideal for controlling lighting fixtures and other electrical loads. Its gray thermoplastic actuator provides durability and aesthetic compatibility with various décor styles. This product is relevant for electrical distributors and lighting solutions providers looking for reliable wire and cable control components.

Specifications

• Manufacturer: Cooper Wiring Devices
• Manufacturer Part #: 7503GY-BOX
• Amperage: 15 amperes
• Number of Phases: 1
• Material: Thermoplastic
• Color: Gray
• Actuator Type: Decorator
• Product Weight: 0.1870 lbs
• Voltage Rating: 120/277V AC (per UL 498)
• Wiring Type: Back and side wire terminals compatible with #12 and #14 AWG wire
• Dimensions: 4.19" (H) x 1.30" (W) x 0.96" (D)
• UL and cULus Listed (UL File No. E18704)

Features

• Thermoplastic rocker and back body for virtually unbreakable, durable performance
• Ultrasonic welded integrated strap and body for superior structural integrity
• Backwire clamps on side terminals for easy installation
• Push-in terminals accept #14 AWG solid wire for quick wiring
• Stippled ground screw terminal standard for secure grounding
• Long, broad mounting strap minimizes floating installations
• Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
• Tri-combo screws compatible with slotted, Phillips, and Robertson-head tools
