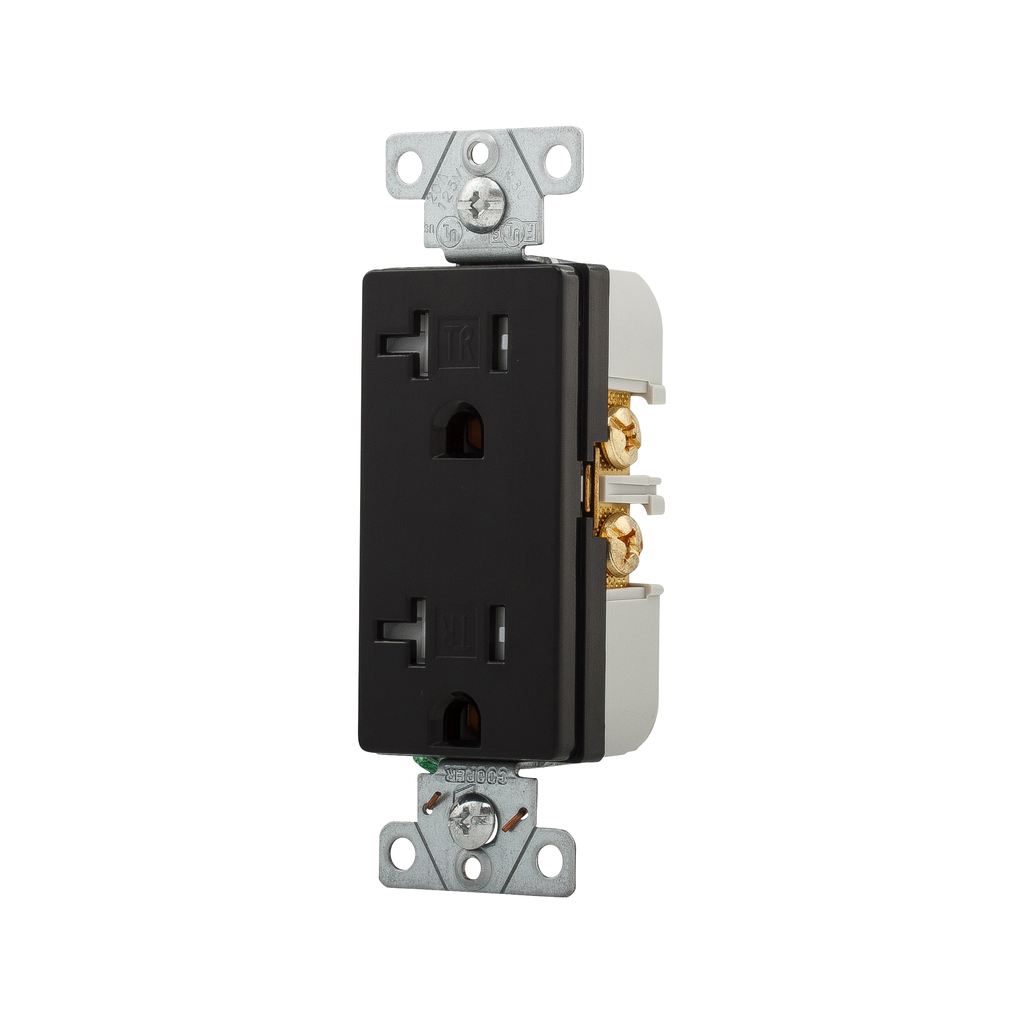

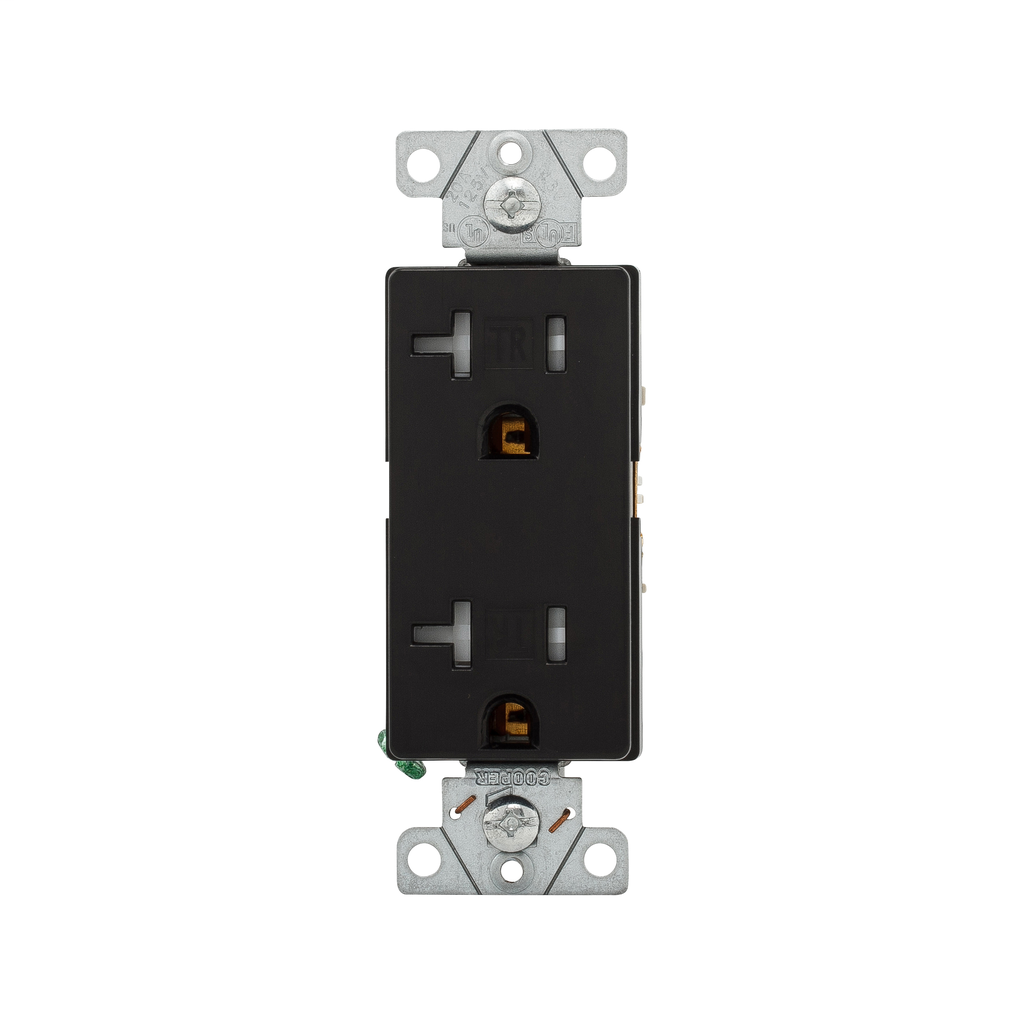

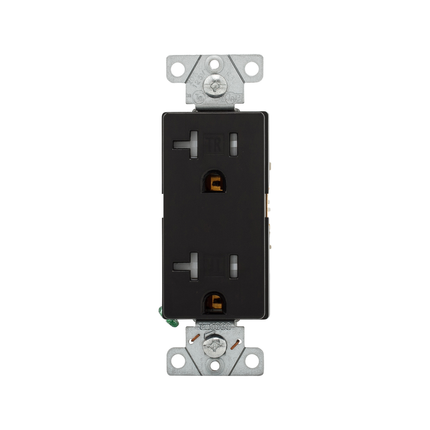

Decorator Duplex Receptacle – Heavy Duty Electrical Distributor Component

The Decorator Duplex Receptacle by Cooper Wiring Devices is a heavy-duty grade electrical receptacle designed for reliable and safe connectivity in commercial and industrial environments. Suitable for use by electrical distributors and switchgear suppliers, this 2-pole, 3-wire grounding device supports 20 amperes at 125 volts AC. It is ideal for lighting solutions, wire and cable installations, and general power distribution where durable and efficient receptacles are required.

Specifications

• Amperage: 20 amperes
• Poles: 2
• Wires: 3
• Material: PVC base with impact and chemical resistant nylon face
• Color: Black
• Mounting Strap: 0.050” thick galvanized steel
• Line Contacts: 0.030” thick 3-leaf brass
• Ground Contact: Riveted
• Terminal Accommodation: #14 - 10 AWG wire
• Voltage Rating: Permanently marked on device
• Dielectric Voltage Withstand: 2000V per UL 498
• Temperature Rating: -20°C to 70°C (-4°F to 158°F)
• Product Weight: 0.2200 lbs
• UPC: 032664668562
• Manufacturer Part Number: TR6352BK-BOX

Features

• Tamper resistant design with black shutters for code compliance and safety
• Durable impact and chemical resistant nylon face
• Extra-long and extra-wide mounting straps for secure installation and compatibility with larger panel cut-outs
• Phosphor bronze staple for automatic grounding system eliminating need for bonding jumper in grounded metal enclosures
• Triple-wipe brass line contacts for enhanced plug retention and minimized heat rise
• Exclusive screw-catch feature to prevent lost screws and cross-threading during wallplate mounting
• Terminals accept up to #10 solid or stranded wire for versatile wiring options
• Back and side wiring capability for installation flexibility
