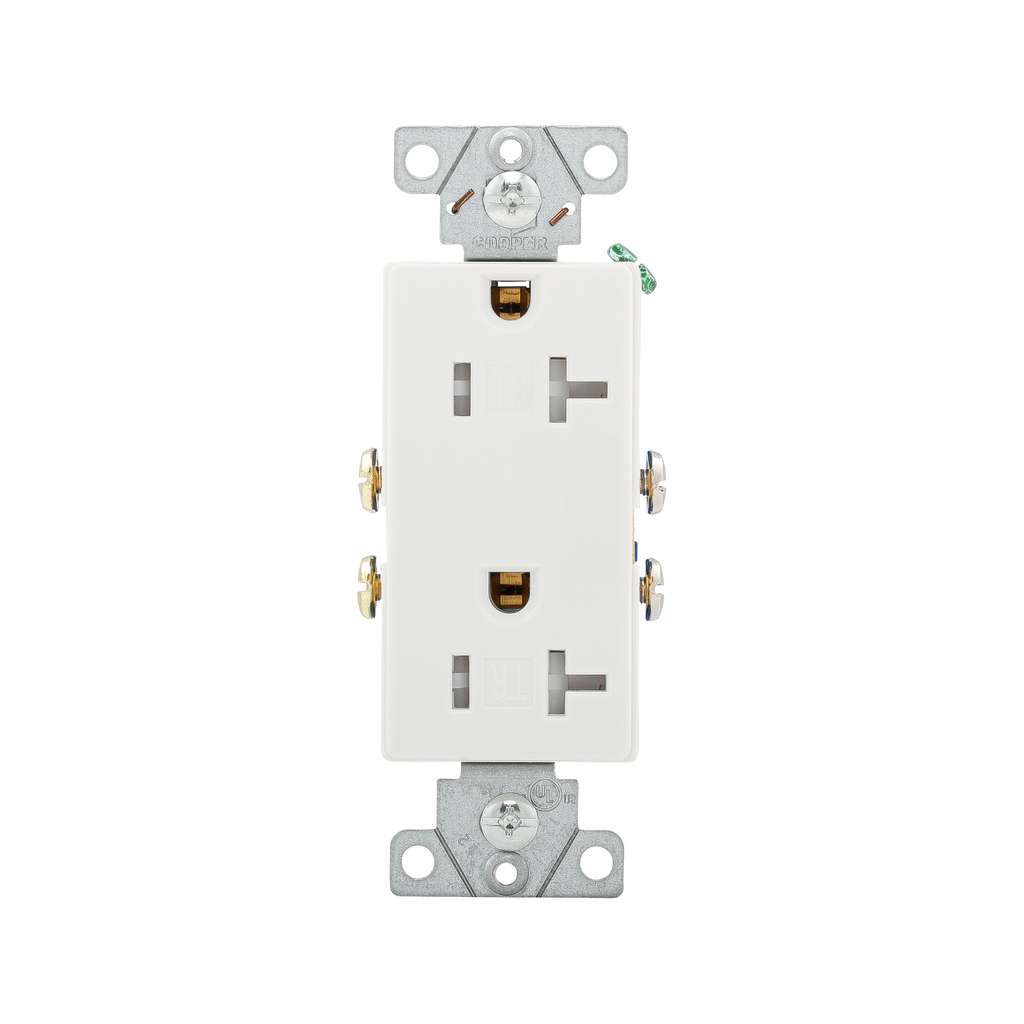

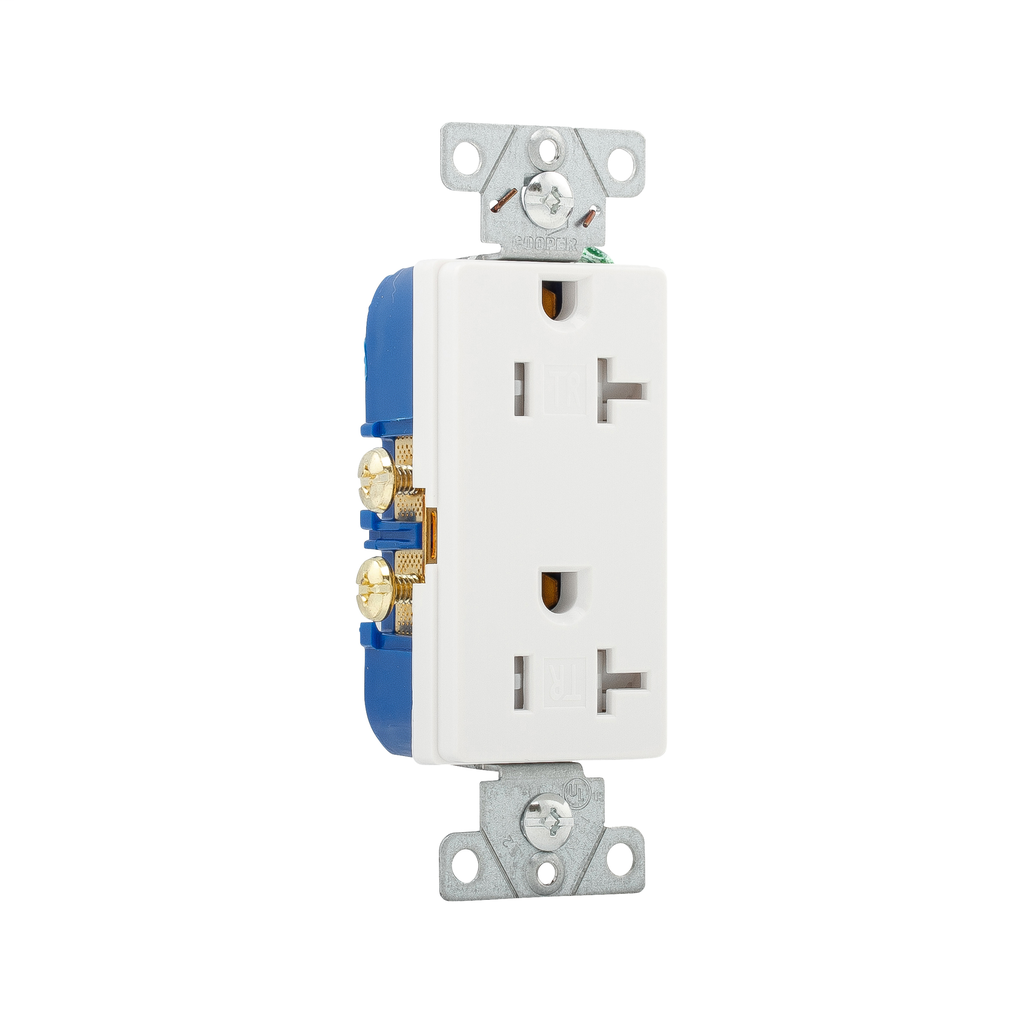

Decorator Duplex Receptacle 20 Ampere

The Decorator Duplex Receptacle by Cooper Wiring Devices is a tamper-resistant electrical outlet designed for safe and reliable residential and light commercial applications. It supports 20 amperes at 125 volts AC, suitable for wiring systems requiring 2-pole, 3-wire grounding configurations. This device is ideal for electrical distributors and switchgear suppliers focusing on compliant, durable wiring and lighting solutions.

Specifications

• Amperage: 20 amperes
• Number of Poles: 2
• Number of Wires: 3
• Material: Thermoplastic
• Color: White
• Product Weight: 0.1550 lbs
• Manufacturer: Cooper Wiring Devices
• Manufacturer Part #: TR1307W-BOX
• UPC: 032664729683

Features

• Tamper-resistant design with UL listed safety shutter system to prevent foreign object insertion
• Compliant with 2017 NEC Article 406.12 for tamper-resistant receptacles
• Durable, impact-resistant thermoplastic face and back body for enhanced longevity
• Terminal screws are backed out and ready to wire for ease of installation
• Extra-long and extra-wide mounting straps for secure mounting
• Side-wire terminals accept up to #10 solid or stranded wire
• Push-in terminals accept #14 solid wire for faster wiring
