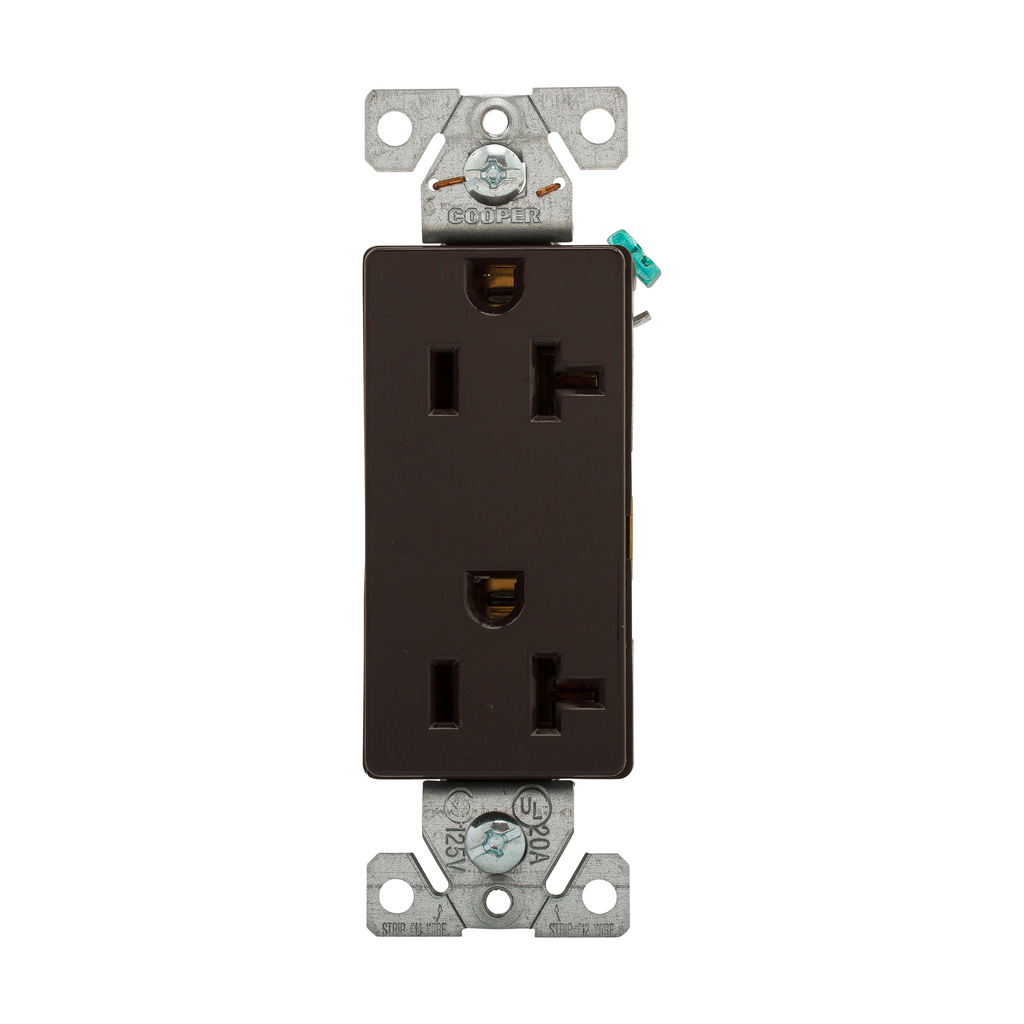

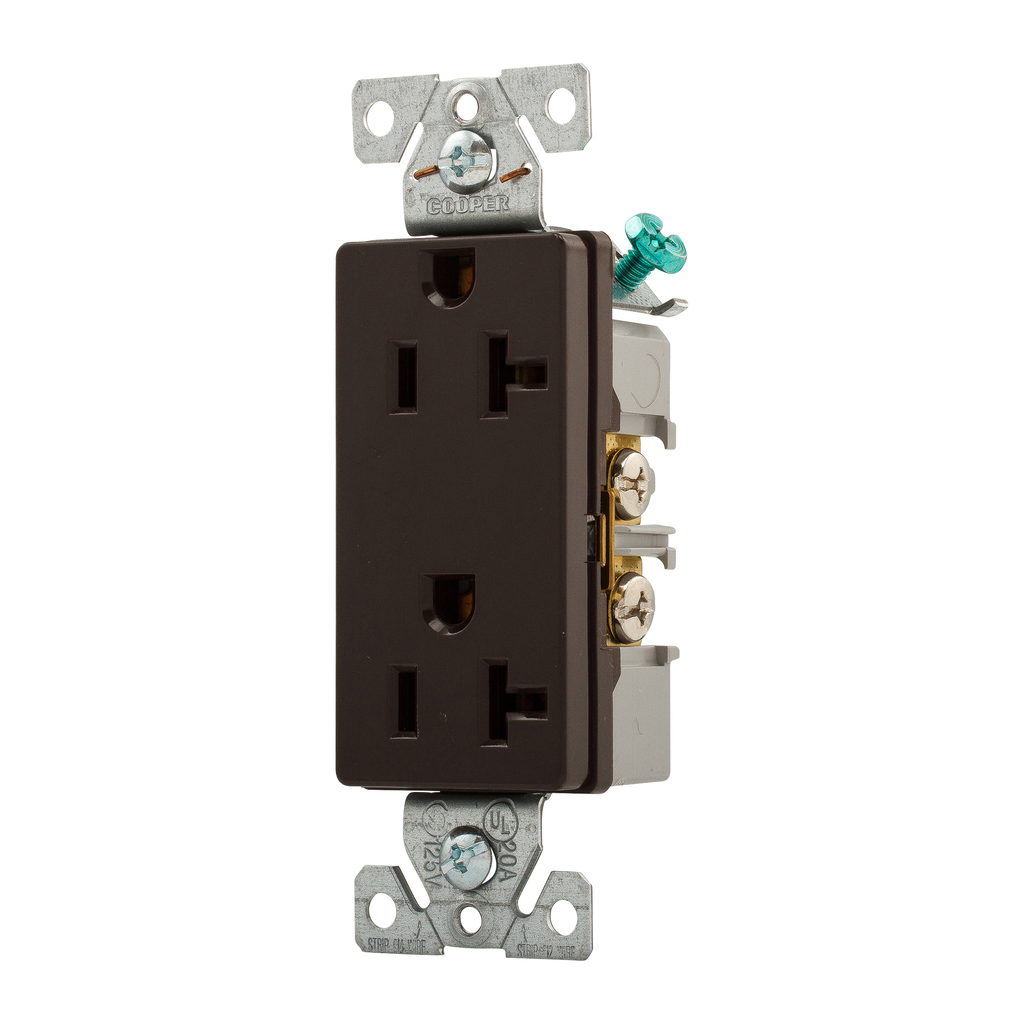

Decorator Duplex Receptacle - Heavy Duty Electrical Distributor Component

The Decorator Duplex Receptacle, model 170481 by Cooper Wiring Devices, is a heavy-duty electrical component designed for reliable power distribution in commercial and industrial applications. This 20-ampere, 125V receptacle is suitable for electrical distributors and lighting solutions requiring durable and efficient wire and cable connections. It features a 2-pole, 3-wire grounding configuration and is constructed from impact-resistant PVC material, ensuring longevity and safety in demanding environments.

Specifications

• Amperage: 20 amperes
• Poles: 2
• Wires: 3
• Material: PVC
• Color: Black
• Product Weight: 0.2000 lbs
• Manufacturer Part #: 6352BK-BU
• UPC: 032664584060

Features

• Heavy-duty grade decorator duplex receptacle suitable for commercial developments and meeting rooms
• Automatic grounding system eliminates the need for bonding jumper in grounded metal enclosures
• 0.031” thick triple wipe brass line contacts minimize heat rise and maximize plug retention
• Extra long/wide mounting strap maintains assembly security and helps reach oversize cutouts
• Exclusive screw-catch feature captures wallplate screw, eliminating hand threading, lost screws, and cross-threading
• Nylon face resists high impact and chemical abuse

Downloads & Links

• Spec Sheet
