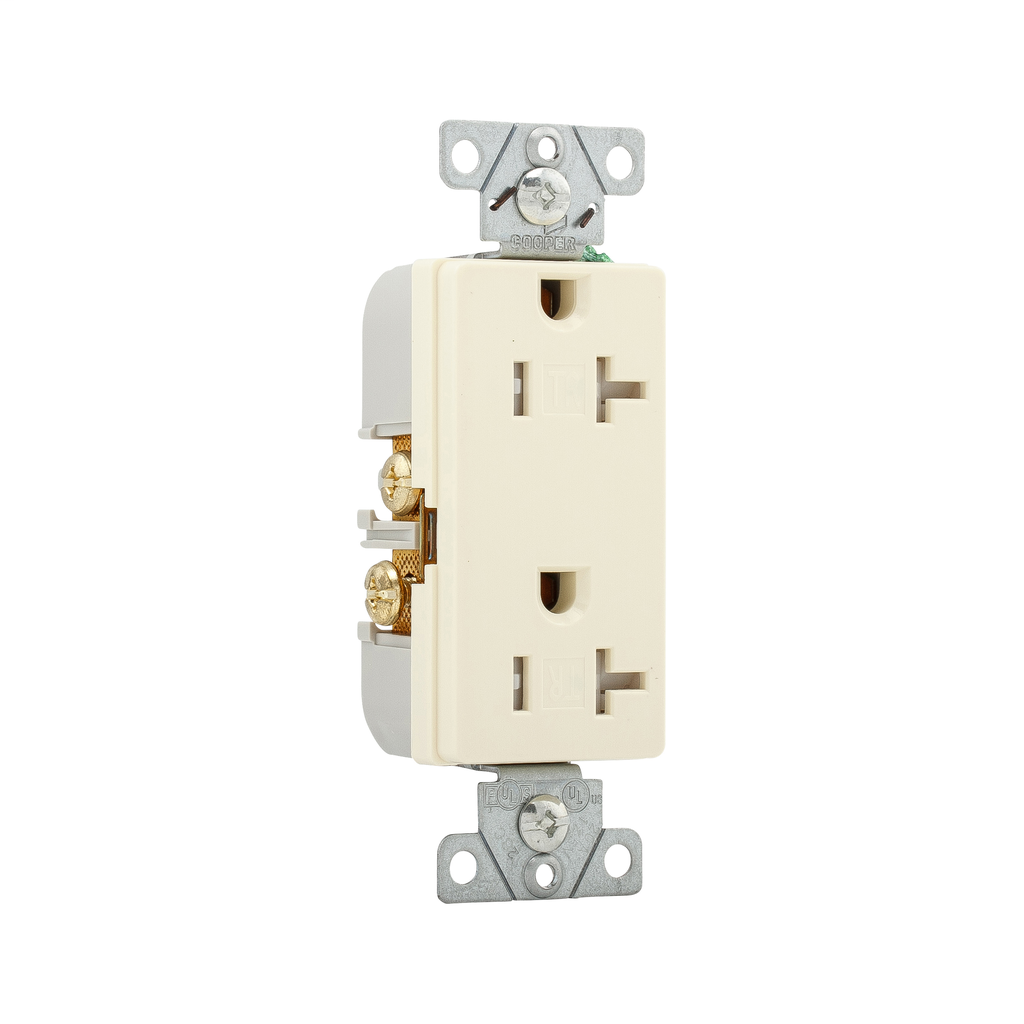

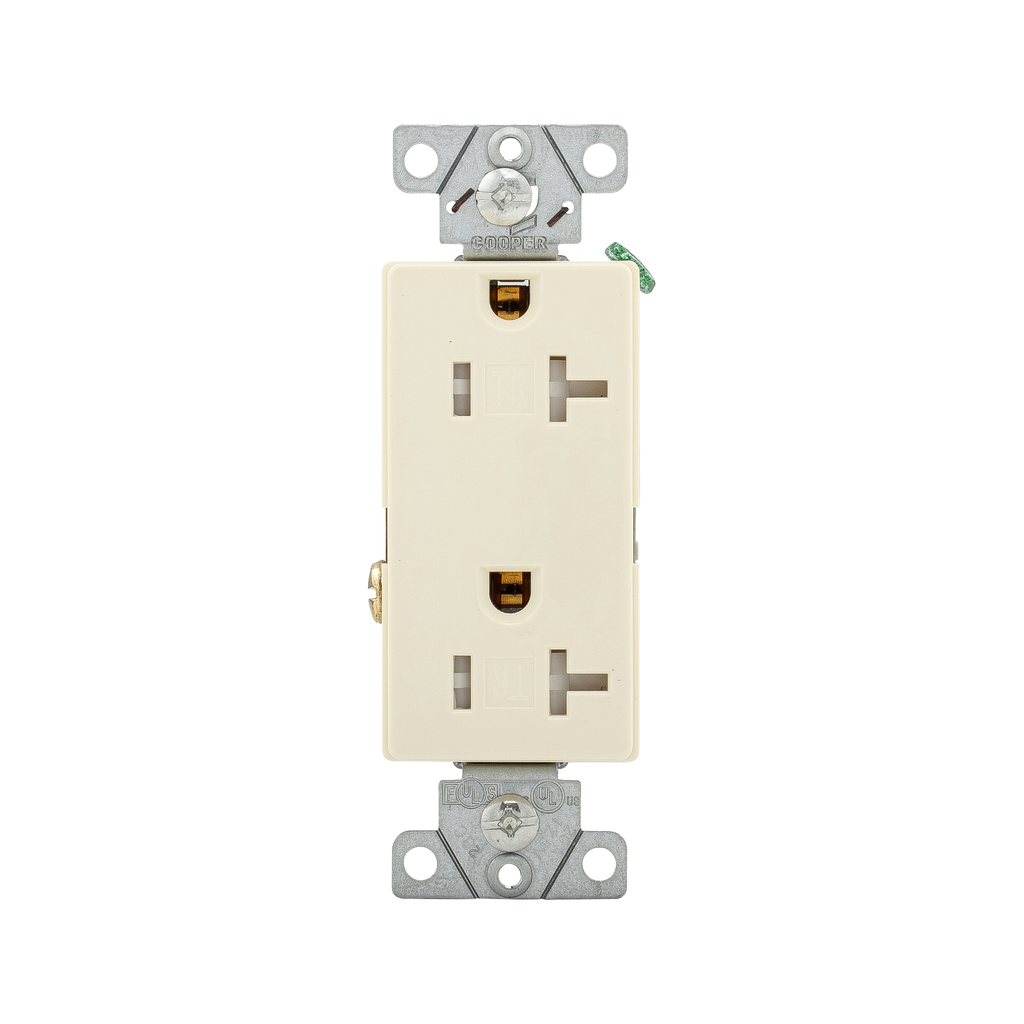

Decorator Duplex Receptacle – Heavy-Duty Electrical Receptacle

The Decorator Duplex Receptacle by Cooper Wiring Devices is a heavy-duty straight blade electrical receptacle designed for reliable connectivity in commercial and industrial applications. Suitable for use by electrical distributors and switchgear suppliers, this receptacle supports 20 amperes at 125 volts AC and conforms to NEMA 5-20 standards. It is engineered for back and side wiring with a 2-pole, 3-wire grounding configuration, making it compatible with a wide range of wire and cable installations.

Specifications

• Amperage: 20 amperes
• Voltage Rating: 125 V AC
• Poles: 2
• Wires: 3
• Material: PVC base with nylon face
• Color: Almond
• Mounting Strap: 0.050” thick galvanized steel
• Line Contacts: 0.030” thick triple-wipe brass
• Ground Contact: Riveted
• Terminal Accommodation: #14 - 10 AWG wire
• Dielectric Voltage: Withstands 2000V per UL 498
• Temperature Rating: -20°C to 70°C (-4°F to 158°F)
• Product Weight: 0.2200 lbs
• Manufacturer Part Number: TR6352A-BOX
• UPC: 032664668548

Features

• Heavy-duty grade construction for durable performance in commercial environments
• Triple-wipe brass line contacts minimize heat rise and maximize plug retention
• Extra-long and extra-wide mounting straps maintain assembly security and accommodate oversize cutouts
• Automatic grounding system eliminates need for bonding jumper in grounded metal enclosures
• Impact and chemical resistant nylon face for enhanced durability
• Exclusive screw-catch feature captures wallplate screw, preventing lost screws and cross-threading
• Back and side wiring options for flexible installation
• Terminals accept up to #10 solid or stranded wire
• Complies with UL, cULus, CSA, and NOM certifications
• Tamper resistant design for code compliance and safety
