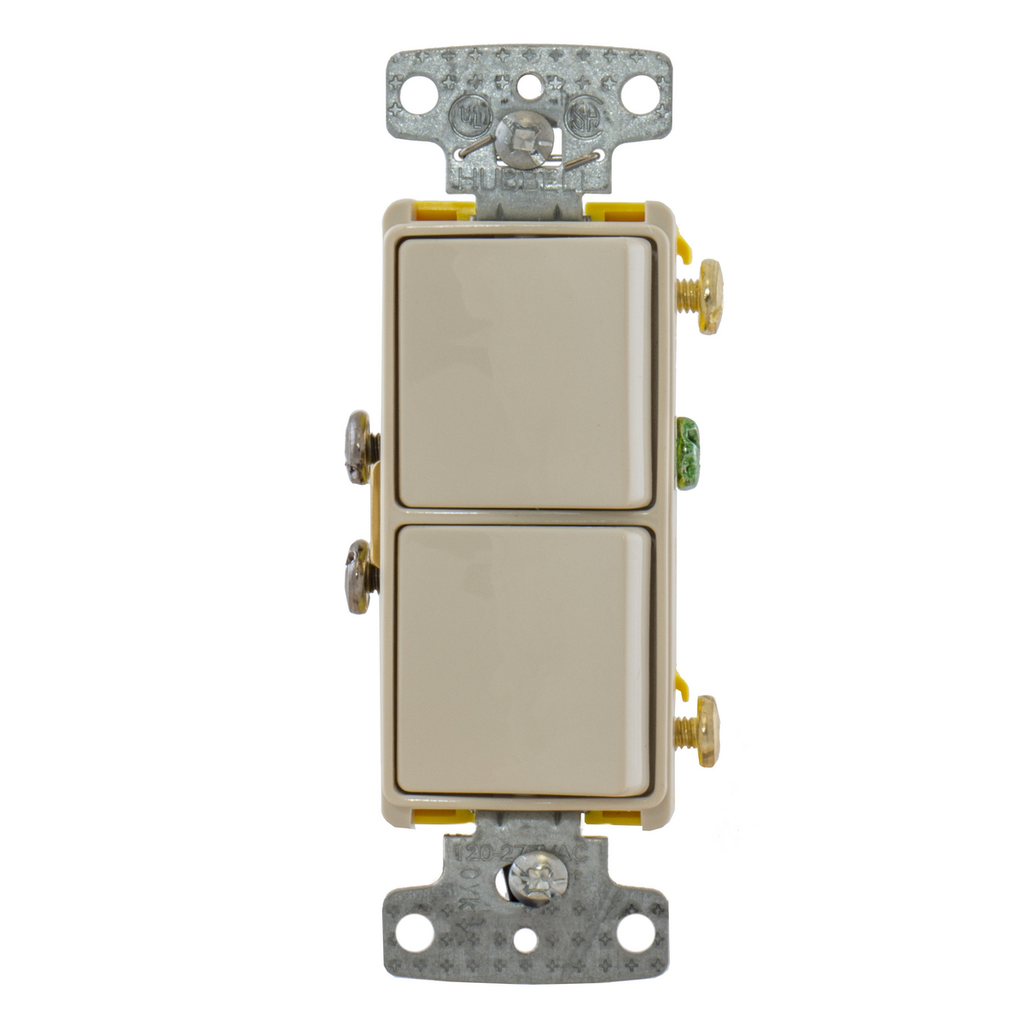

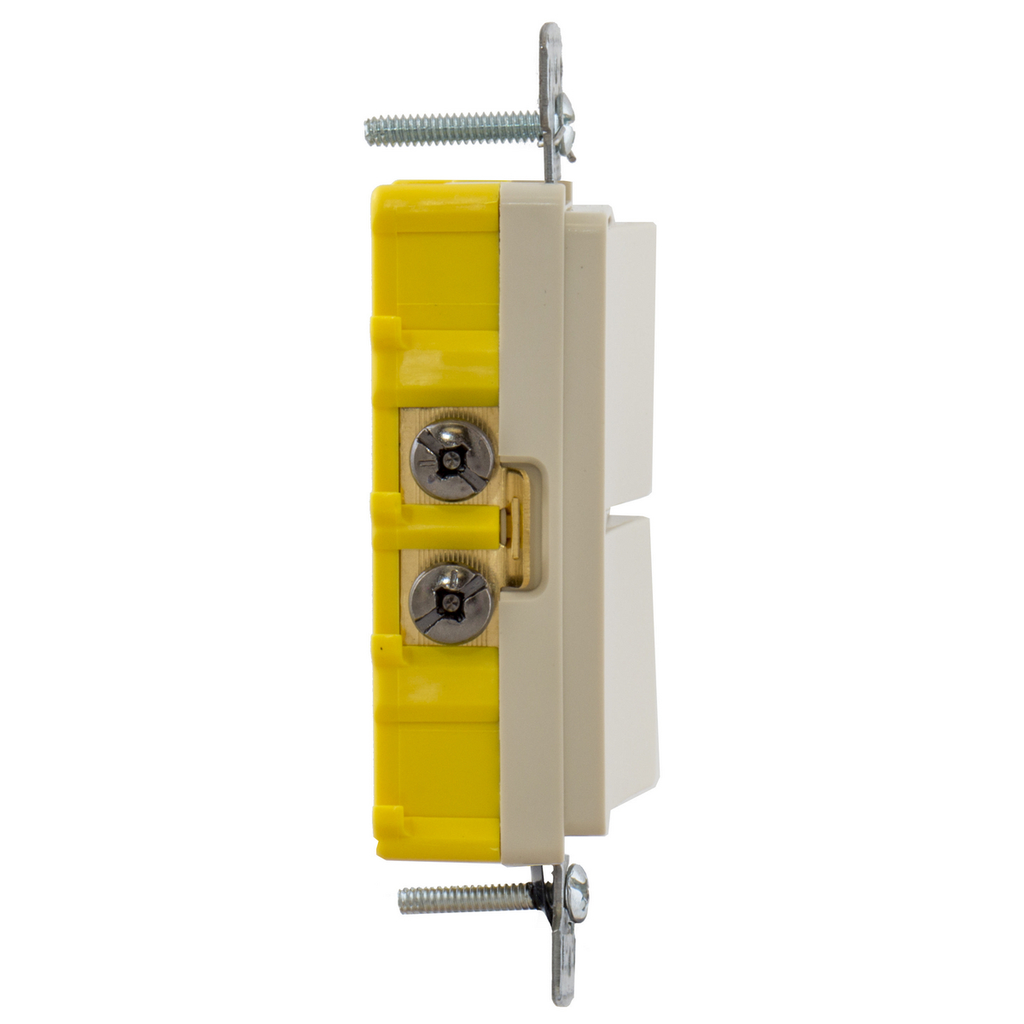

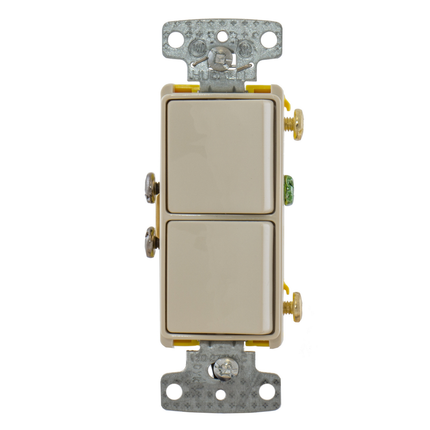

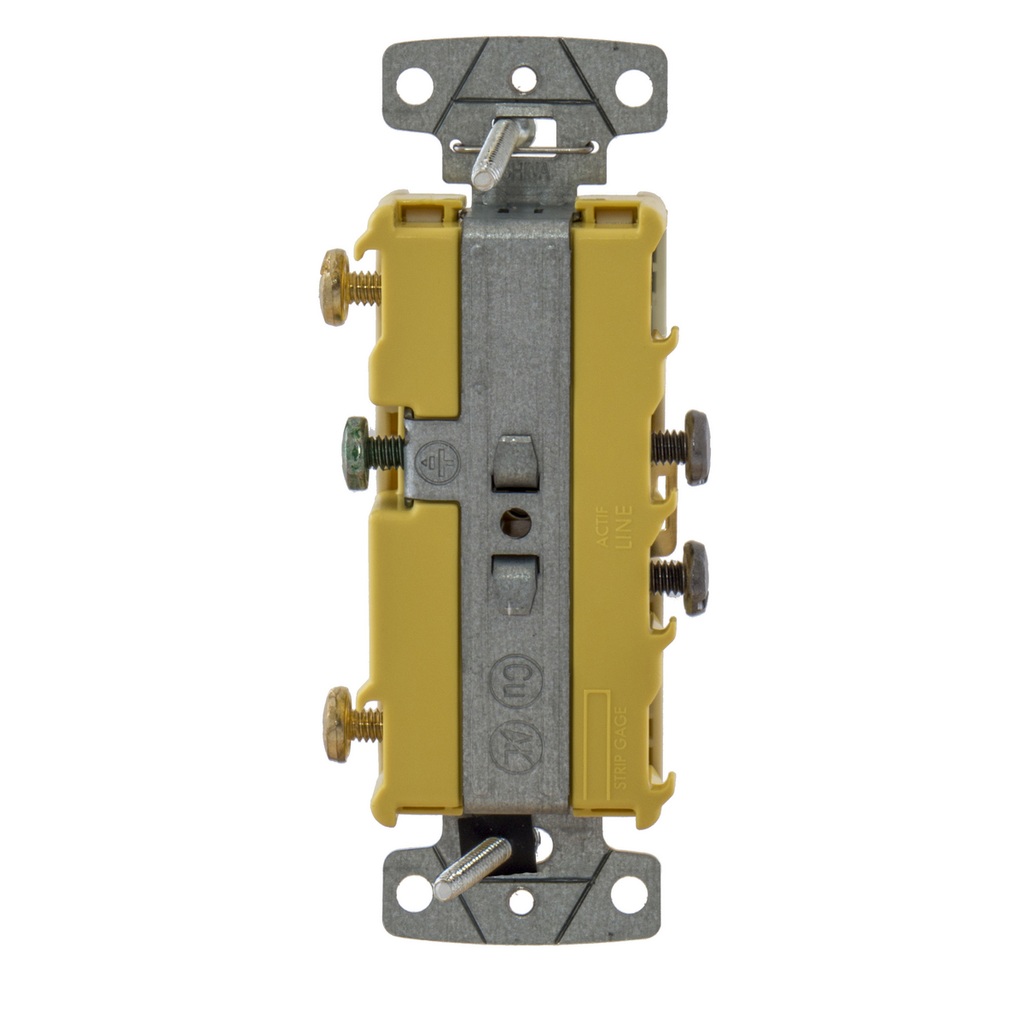

Decorator Combination Device, Two Single Pole Rockers 15A - Residential Electrical Switch

The Decorator Combination Device with two single pole rockers is designed for residential electrical applications. It provides reliable control of lighting or electrical loads with a 15 ampere rating at 120/277V AC. As an electrical distributor and lighting solutions component, this device offers a smooth, quiet rocker action and is side wired for secure terminal connections. It is suitable for indoor dry environments and complies with industry standards including CSA certification and UL Listing E3896.

Specifications

• Application: Residential
• Current Rating: 15 A
• Voltage Rating: 120/277V AC
• Number of Poles: Two Single Pole
• Contact Configuration: Two Position
• Contact Rating: 15A
• Operating Cycles: 30,000 Minimum
• Operating Temperature: Maximum continuous 60°C, Minimum -20°C (without impact)
• Connection: Terminal Screws (Side Wired)
• Mounting: Mounting Screws
• Material - Mounting Hardware: Mounting Screws
• Material - Base and Body: PVC
• Material - Mounting Strap: Galvanized Steel
• Material - Rocker: Polycarbonate
• Material - Terminal Screws: Steel
• Material - Terminals: Brass
• Width: 2.970 in
• Color: Light Almond
• UPC: 883778119118
• Manufacturer: Bryant
• Manufacturer Part #: RCD101LA
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Industry Standards: CSA Certified, UL Listed E3896
• Contact Rating: 15A

Features

• Smooth, quiet rocker for ease of use
• Low profile design, less than 1 inch deep
• Self-grounding feature is standard for safety
• Durable construction with PVC base and polycarbonate rocker
• Side wired terminal screws for secure electrical connections
• Rated for 30,000 minimum operating cycles ensuring long service life
• UL V0 flammability rating for enhanced safety
