Decorative Wired Door Chime, 10-1/4”w x 6-3/8”h x 3-3/8”d, in White
SKU: #306580
Part: #LA139WH
UPC: 784891999833
Decorative Wired Door Chime, 10-1/4”w x 6-3/8”h x 3-3/8”d, in White
SKU: #306580
Part: #LA139WH
UPC: 784891999833
Description

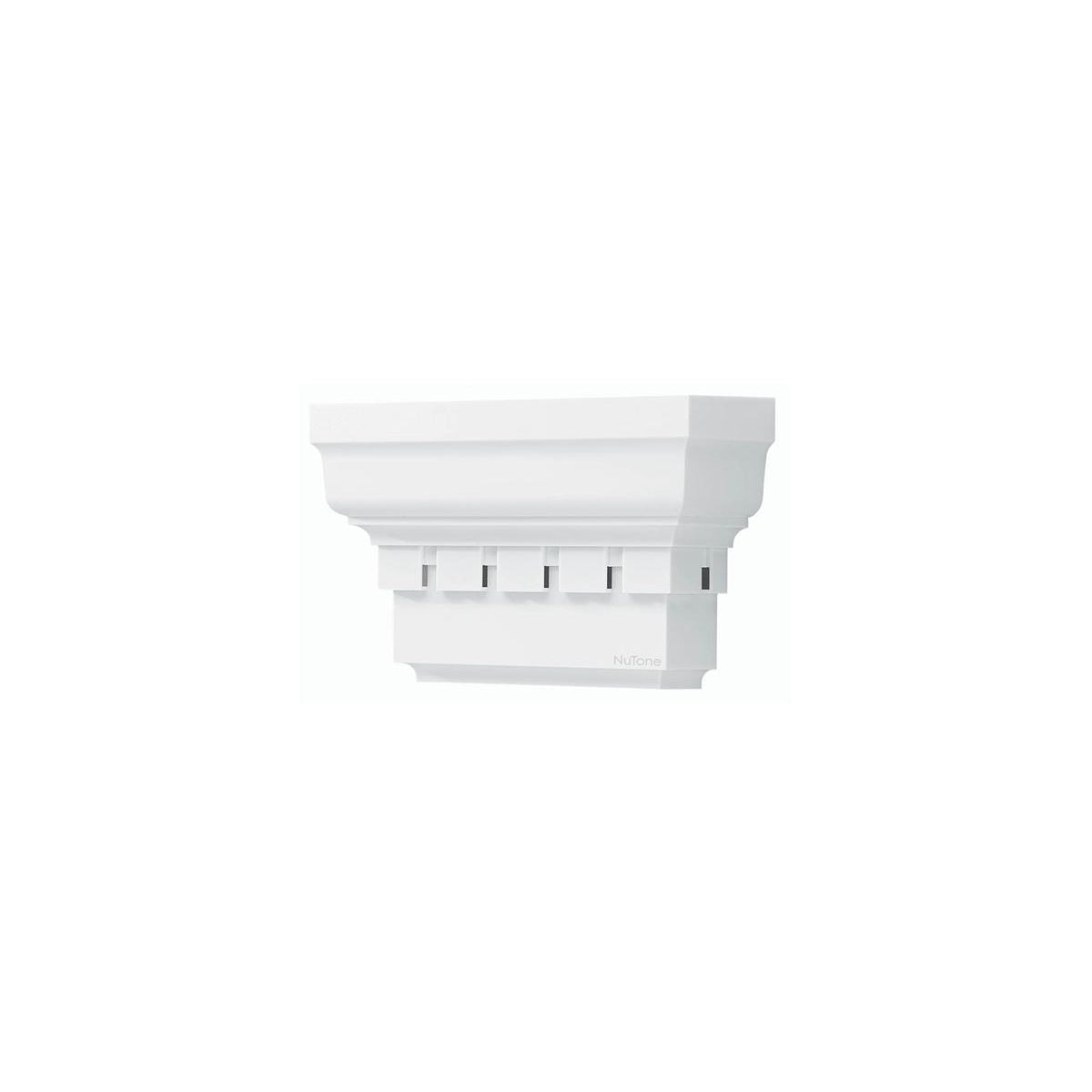

Decorative Wired Door Chime by NuTone – Wired Door Chime Solutions
This Decorative Wired Door Chime by NuTone is designed for surface mounting and is suitable for residential or commercial applications requiring door alert systems. It supports programming for up to two doors, allowing clear identification of which entrance is being accessed. This chime is ideal for electrical distributors and switchgear suppliers looking to provide reliable wired door chime solutions integrated with wire and cable installations.
Specifications
- Product Weight: 1.4 lbs
- Dimensions: 10-1/4” W x 6-3/8” H x 3-3/8” D
- Color: White
- Manufacturer: NuTone
- Manufacturer Part #: LA139WH
- UPC: 784891999833
Features
- Two-note chime designed for two-door operation
- Surface-mounted installation with included mounting hardware
- Compatible with NuTone transformers models C905, C915 for single chime installations and C907, C909 for multiple chime setups
- Wiring accommodates 18-22 gauge, 2-conductor insulated wire
- Clear terminal board connections for transformer and pushbutton wiring
- Includes removable mounting cover for neat installation
- Maintenance instructions recommend cleaning plungers with nonflammable fluid; do not oil plungers
- One-year limited warranty covering defects in materials and workmanship
