Decora Vacancy Motion Sensor Light Switch, Manual-On, 15A, Residential Grade, Single Pole, Multi-Way or Multi-Sensor
SKU: #394609
Part: #DVS15-1LZ
UPC: 078477471289
Decora Vacancy Motion Sensor Light Switch, Manual-On, 15A, Residential Grade, Single Pole, Multi-Way or Multi-Sensor
SKU: #394609
Part: #DVS15-1LZ
UPC: 078477471289
Description
Decora Vacancy Motion Sensor Light Switch, Manual-On, 15A, Residential Grade, Single Pole, Multi-Way or Multi-Sensor – Motion Sensor Lighting Control
The Decora Vacancy Motion Sensor Light Switch by Leviton is designed for residential electrical applications, providing manual-on and automatic-off vacancy control for lighting. Suitable for single pole, 3-way, or multi-location wiring configurations with compatible DD0SR switch companions, this device supports efficient lighting solutions for homes. It is ideal for use in wire and cable installations requiring vacancy control to meet 2019 California Title 24, Part 6 requirements.
Specifications
- Manufacturer: Leviton
- Manufacturer Part #: DVS15-1LZ
- Voltage: 120 VAC, 60 Hz
- Load Ratings: 1800 W Incandescent/Halogen, 600 W LED/CFL, 1200 VA ELV/MLV/Fluorescent/Halogen
- Motor Rating: 1/2 HP
- Current Rating: 15 A Resistive
- Number of Poles: 3
- Mounting Type: Wall Switch
- Grade: Residential
- Color: Ivory (includes ivory and light almond faceplates)
- LED Indicator Color: Green
- Country of Origin: China
- Product Weight: 0.3520 lbs
- UPC: 078477471289
Features
- Vacancy sensor with manual-on and automatic-off control
- 180° PIR motion detection with a coverage area of 30 ft x 30 ft (900 sq ft)
- Compatible with single pole, 3-way, and multi-location wiring setups using DD0SR switch companions
- Adjustable time delay settings: 1, 5, 10, or 20 minutes
- Indicator LED alerts user to device status
- Complies with 2019 California Title 24, Part 6 vacancy control device requirements
- Supports multi-sensor installations with up to two sensors per circuit

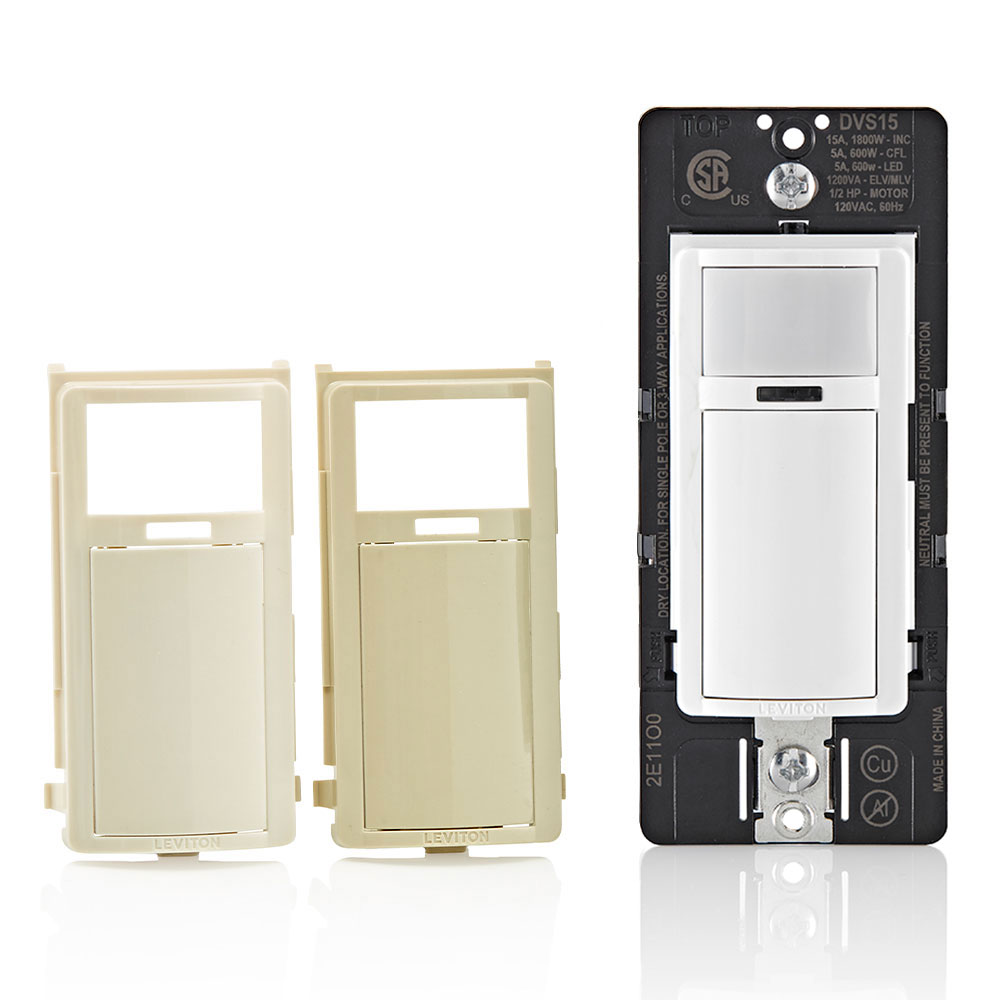

- Includes ivory and light almond faceplates for aesthetic flexibility
- Designed for indoor residential use only
- Requires neutral wire for operation
- Simple installation with standard wiring tools
Downloads & Links
- Leviton-DOS15-DVS15-Instruction Sheet-Spanish
- Leviton-DOS15-DVS15-Instruction Sheet-English
- product-cleaning-instructions
- Leviton-Sensors-Solution-Sheet
- JA-120420V3 Revise Sensor Product Bulletin 6pp - vFR (4)
- Leviton-Sensor-Buying-Guide
- Leviton-Decora-Motion-Sensor-Product-Bulletin
- Leviton-DOS15-DVS15-Instruction Sheet-French
