Features

• New aesthetically pleasing design with rocker switch and slender dimmer control slide bar
• Integrated linear full-range slide control for easy, precise operation
• Controls a variety of dimmable LED and CFL lamps
• Compatible with Magnetic Low Voltage loads, Incandescent and Halogen lamps
• Single pole or 3-way operation (when using 3-way switch); packaged with White, Ivory, and Light Almond color change kits
• Additional color change kits available in Black, Brown, Red and Gray
• Slim, compact housing fits easily into a standard wallbox and is suitable for multi-gang installations with other Decora products
• The slide bar location preserves the selected brightness level when the dimmer is switched OFF
• Microprocessor control offers flexibility to program LEDs and CFLs for best performance
• Switch under the color change kit to turn locator light ON/OFF
• No fins for multi-gang installation

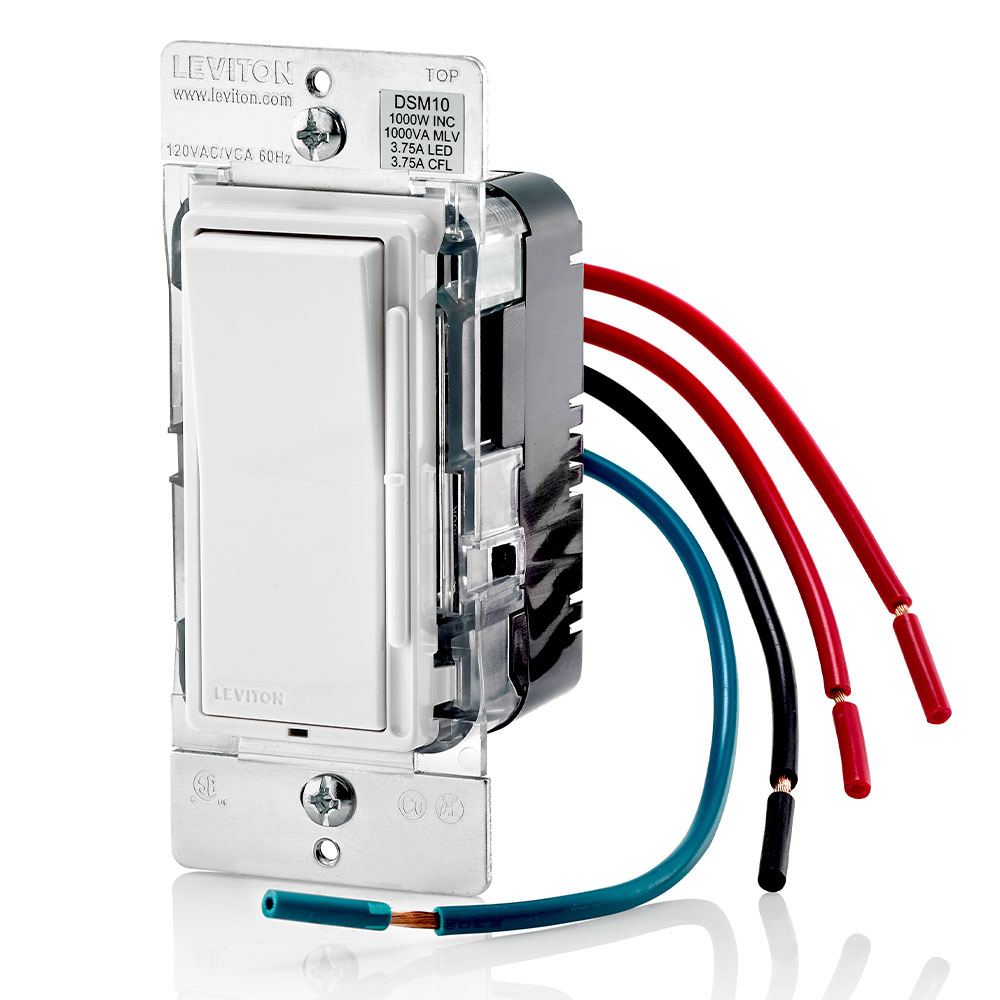

• Wired using leads, a Neutral wire is not required for operation
• Built-in radio/TV interference filter
• Leviton Decora Rocker-Slide Universal Dimmers provide smooth, slide-action, full-range dimming for Incandescent, Magnetic Low Voltage, dimmable LEDs and dimmable CFL loads. They combine a Decora rocker switch with a contemporary full-range slender slide bar for precise lighting control. With a new, streamlined style, Decora dimmers and fan speed control complement any interior design and are compatible with other Decora devices.

Patents

• MX321054
• US8664886
• US9431192
• US9681526
• US9974152

Specifications

• Country of Origin: China
• RoHS Compliant: True

Product Features

• Action: Rocker Switch for ON/OFF, slide bar for lighting level control
• Available Colors: Ivry-I Wht-W Gry-G Blk-E Brwn-B Light Almond-T, R-Red
• Color: White, Ivory, Light Almond
• Frequency: 60 Hz
• Light: Locator light that can be turned off
• Load Rating: 1000W Incandescent, 1000VA MLV, 450W LED and CFL
• Load Type: Incandescent, Dimmable LED, Dimmable CFL, Magnetic Low Voltage
• Ordering Notes: Included White, Ivory and Light Almond Color Kit
• Preset: Slide bar preserves desired lighting level
• Protection: Radio/TV Filter
• Standards and Certifications: cCSAus, NOM
• Style Name: Decora
• Switch Type: Single-Pole & 3-Way
• Type: Dimmer
• Voltage: 120 VAC
• Wallplate: Order Separately
• Warranty: 5-Year Limited
