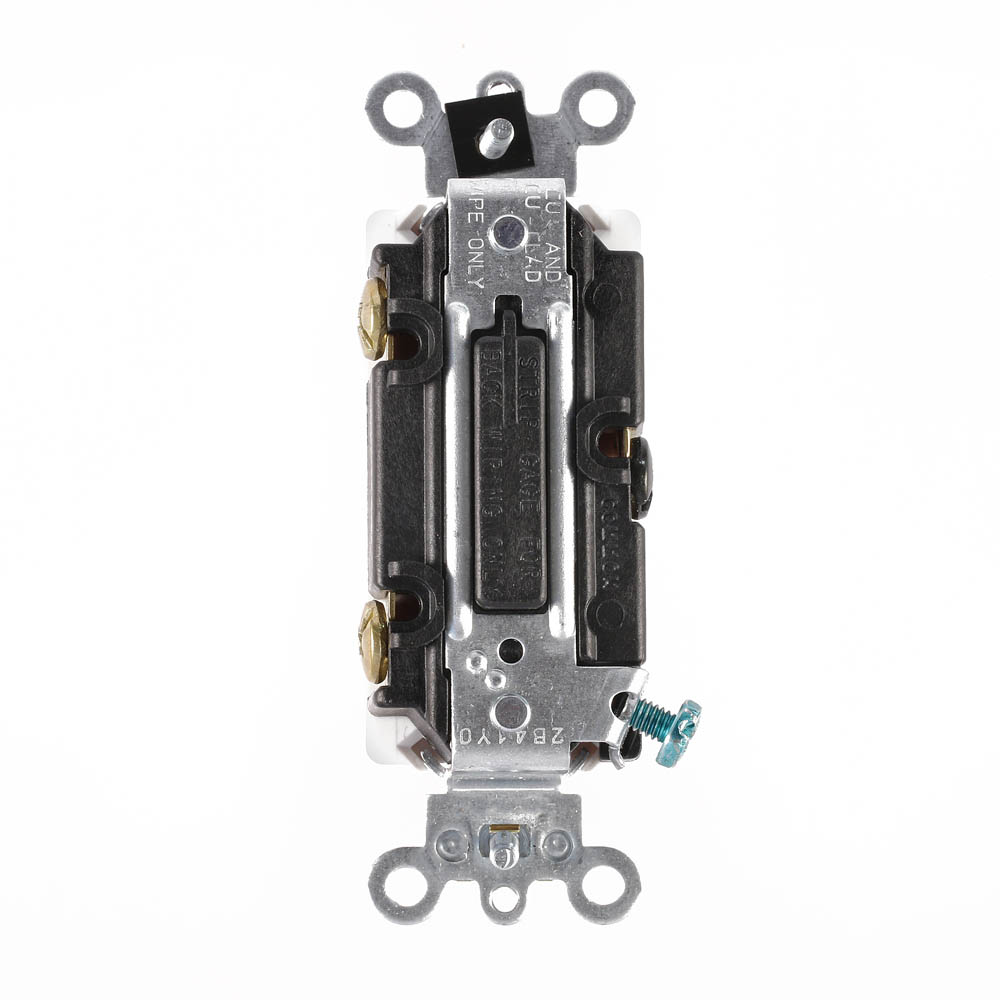

Decora Plus Rocker Switch - Commercial Specification Grade Switch

The Decora Plus Rocker Switch is a commercial specification grade electrical device designed for controlling lighting and other electrical loads in commercial and industrial environments. Rated for 15 Amp and 120/277 Volt applications, this 3-way rocker switch offers reliable switching performance with self-grounding and back and side wiring options. It is ideal for use by electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers seeking durable, code-compliant switching devices.

Specifications

• Amperage: 12 amperes
• Voltage Rating: 120/277 Volt AC
• Device Type: Rocker Switch
• Grade: Commercial Specification
• Color: White
• Body Material: Thermoplastic
• Grounding: Self-Grounding
• Dielectric Voltage: 1500 volts
• Flammability Class: Rated V-2 Per UL 94
• Operating Temperature: -40 degrees Celsius
• Enclosure: WD-6
• NEMA: WD-1
• Product Weight: 0.2200 lbs
• Manufacturer Part #: 5693-2W

Features

• Commercial specification grade for demanding applications
• Back and side wired for flexible installation
• Self-grounding for enhanced safety and code compliance
• Durable thermoplastic body material
• Quiet operation suitable for commercial environments
• Compatible with Decora Plus style wallplates
• Meets UL 94 V-2 flammability standards

Downloads & Links

• Commercial Industrial Switch Brochure Q-1223A AUG23v1
• PK-A3457-10-02-0M-W
• product-cleaning-instructions
