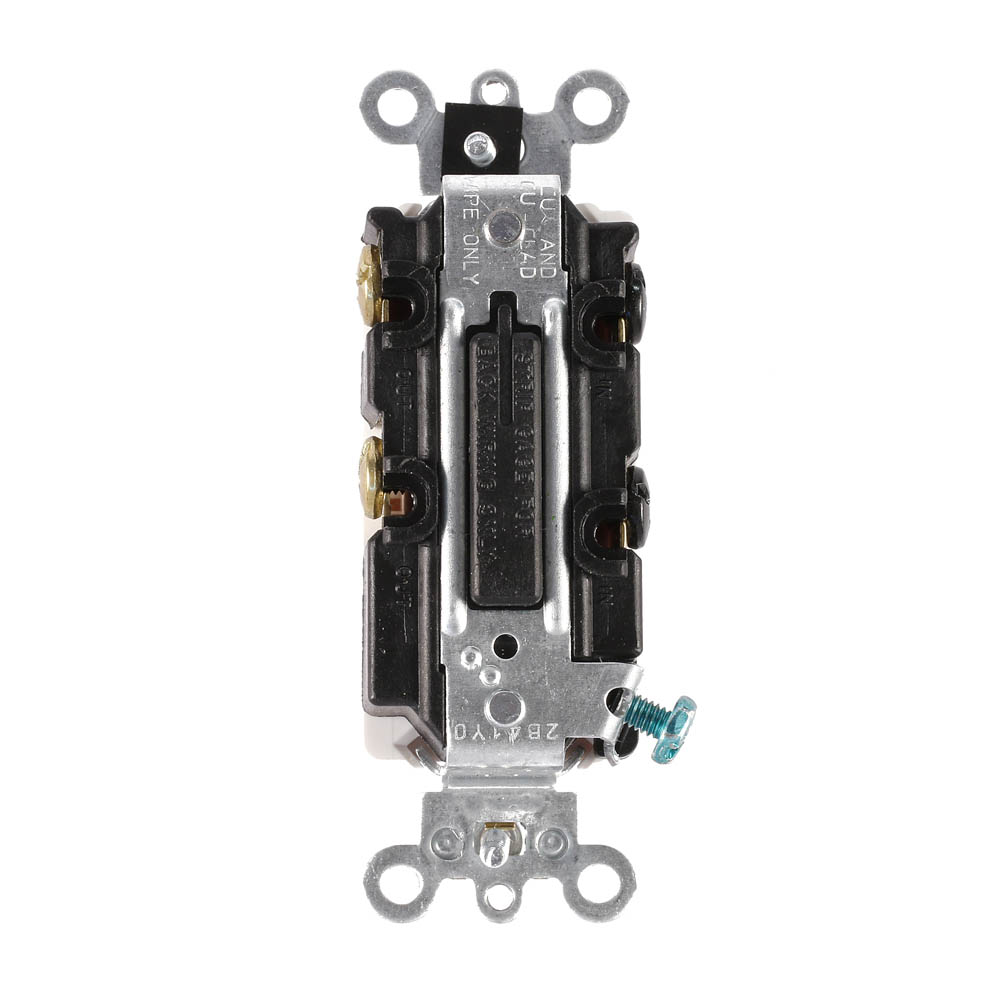

Decora Plus Rocker Switch – Commercial Specification Grade Electrical Switch

The Decora Plus Rocker Switch is a commercial specification grade electrical device designed for controlling lighting and electrical loads in commercial and industrial applications. It operates at 20 Amp, 120/277 Volt AC, suitable for 4-way switching configurations. This switch is ideal for electrical distributors and lighting solutions providers seeking reliable, code-compliant wiring devices with robust performance.

Specifications

• Amperage: 16 amperes
• Voltage Rating: 120/277 Volt AC
• Device Type: Rocker Switch
• Grade: Commercial Specification
• Color: Almond
• Body Material: Thermoplastic Polyester
• Grounding: Self-Grounding
• Dielectric Voltage: 1500 volts
• Operating Temperature: -40 degrees Celsius
• Manufacturer Part Number: 5624-2T
• UPC: 078477271087
• Country of Origin: Mexico
• NEMA Designation: WD-1
• Enclosure: WD-6
• Flammability Class: Rated V-2 Per UL 94
• Product Weight: 2.6 lbs

Features

• Commercial specification grade for balance of performance and value
• Back and side wired terminals for flexible installation
• Self-grounding design enhances safety and code compliance
• Durable thermoplastic polyester body material for longevity
• Compatible with 4-way switching circuits for multi-location control
• Meets UL and Federal Specification W-S-896 for commercial use
• Light Almond color for aesthetic integration in commercial environments

Downloads & Links

• Commercial Industrial Switch Brochure Q-1223A AUG23v1
• PK-A3427-10-02-0M-W
• product-cleaning-instructions
