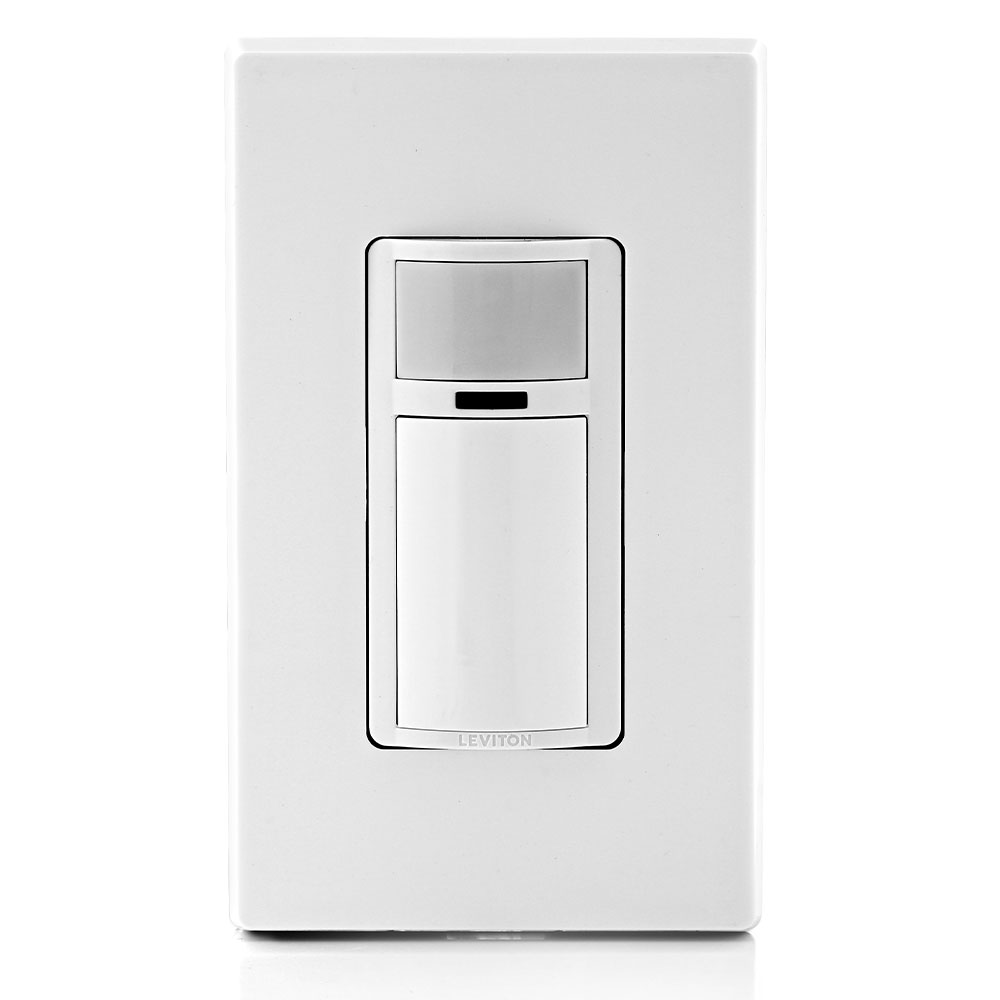

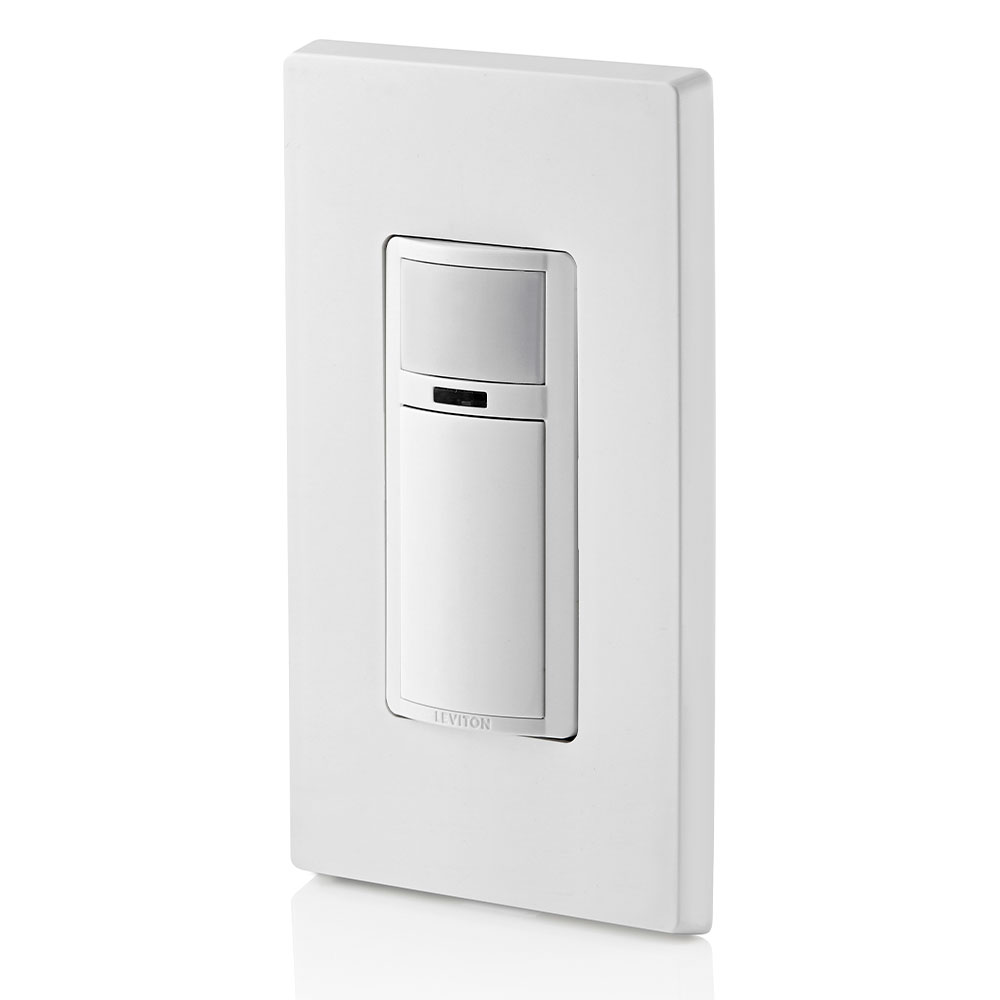

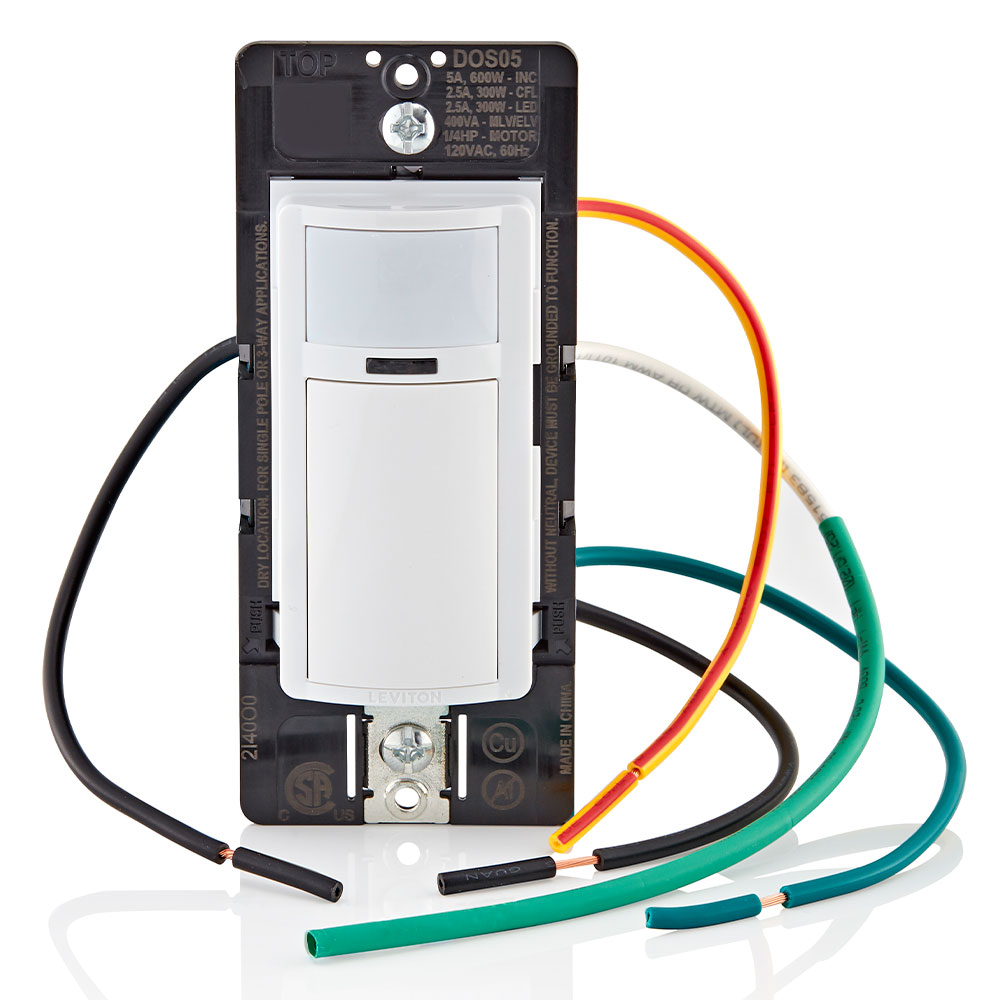

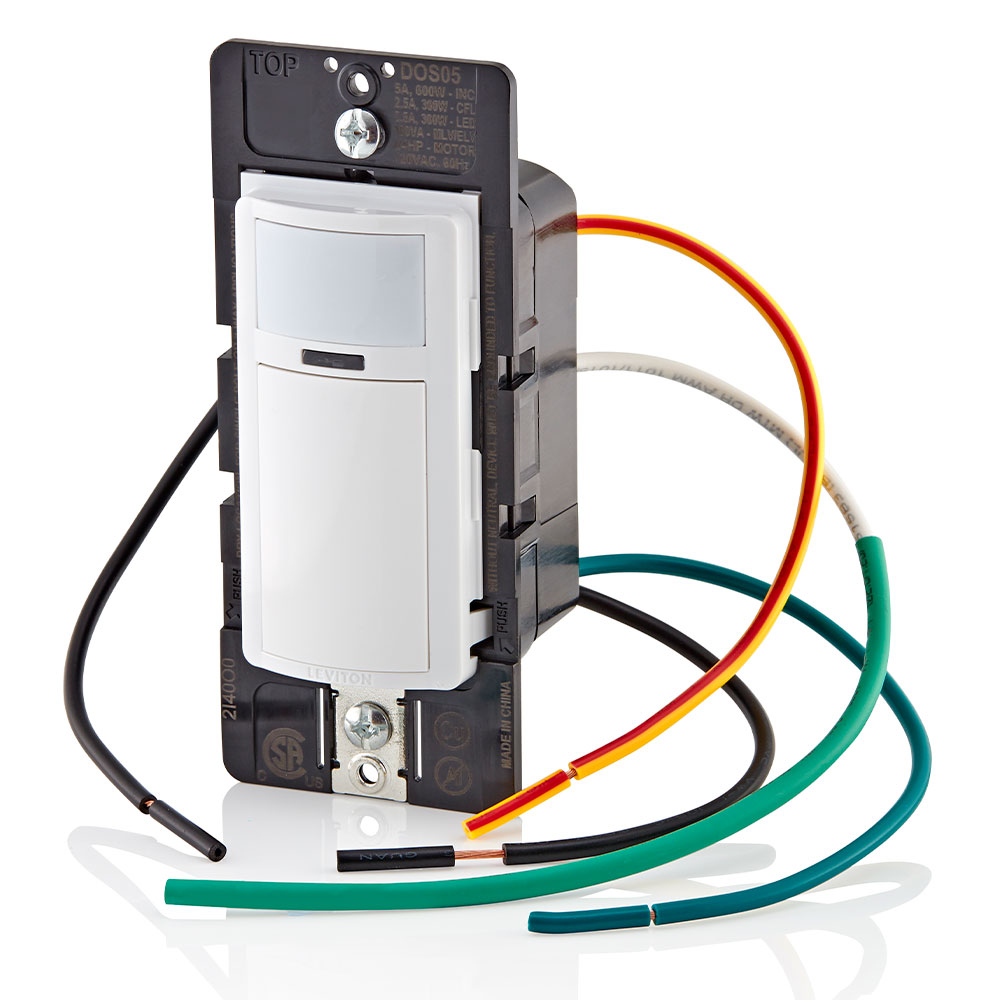

Decora Occupancy Motion Sensor Light Switch, Auto-On, 5A, Residential Grade, Single Pole or 3-Way - Occupancy Sensor Lighting Solutions

This Decora Occupancy Motion Sensor Light Switch is designed for residential electrical applications to provide automatic lighting control through motion detection. Suitable for single pole or 3-way wiring configurations, it supports a range of lighting loads including LED, CFL, incandescent, halogen, and low voltage magnetic or electronic transformers. Ideal for use by electrical distributors and switchgear suppliers focusing on advanced lighting solutions and wire and cable systems, this sensor switch enhances energy efficiency and convenience.

Specifications

• Manufacturer: Leviton
• Manufacturer Part #: DOS05-1LZ
• Product Weight: 0.33 lb
• Color: Ivory (includes ivory and light almond faceplates)
• Grade: Residential
• Mounting Type: Wall Switch
• Number of Poles: 3
• Load Ratings: 300W LED/CFL, 600W Incandescent/Halogen, 400VA Magnetic Low Voltage, 400VA Electronic Low Voltage, ¬º HP Motor, 5A Resistive

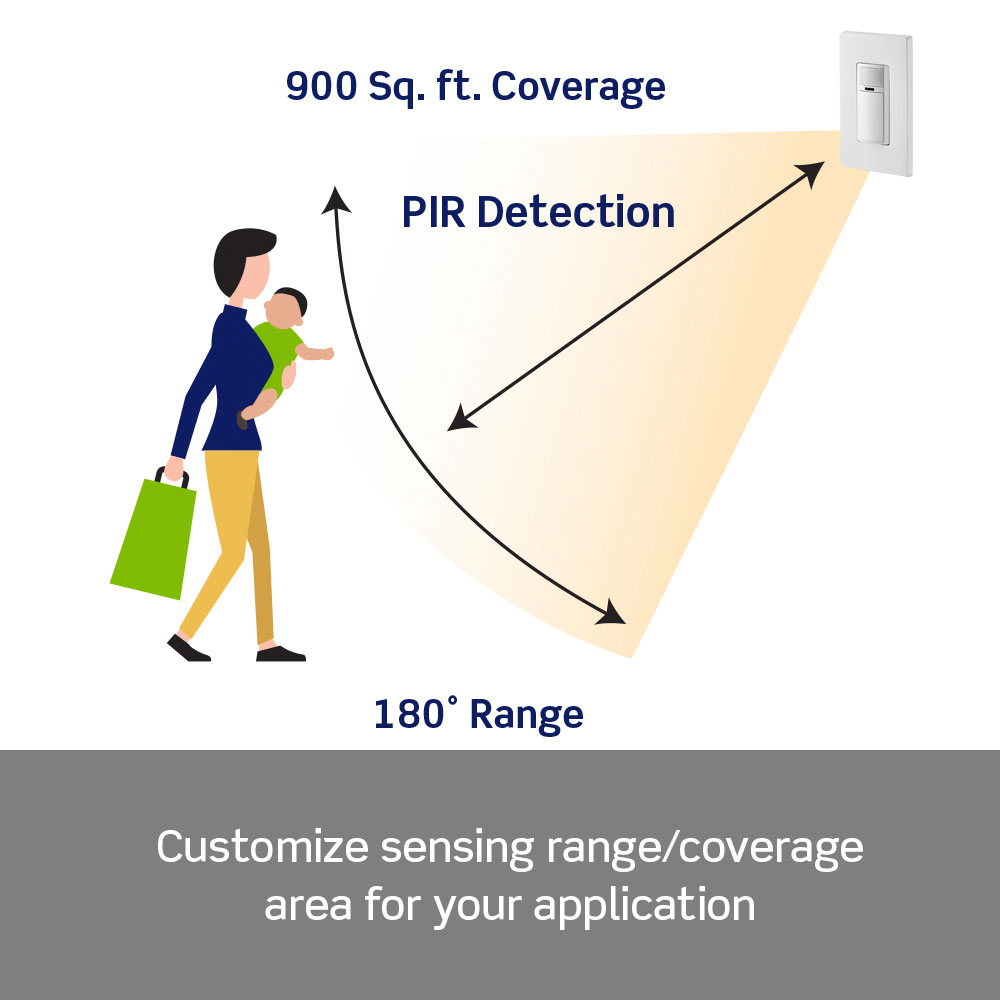

• Detection Angle: 180¬∞ PIR sensor
• Coverage Area: Approximately 900 sq. ft.
• LED Indicator Color: Green
• Country of Origin: China

Features

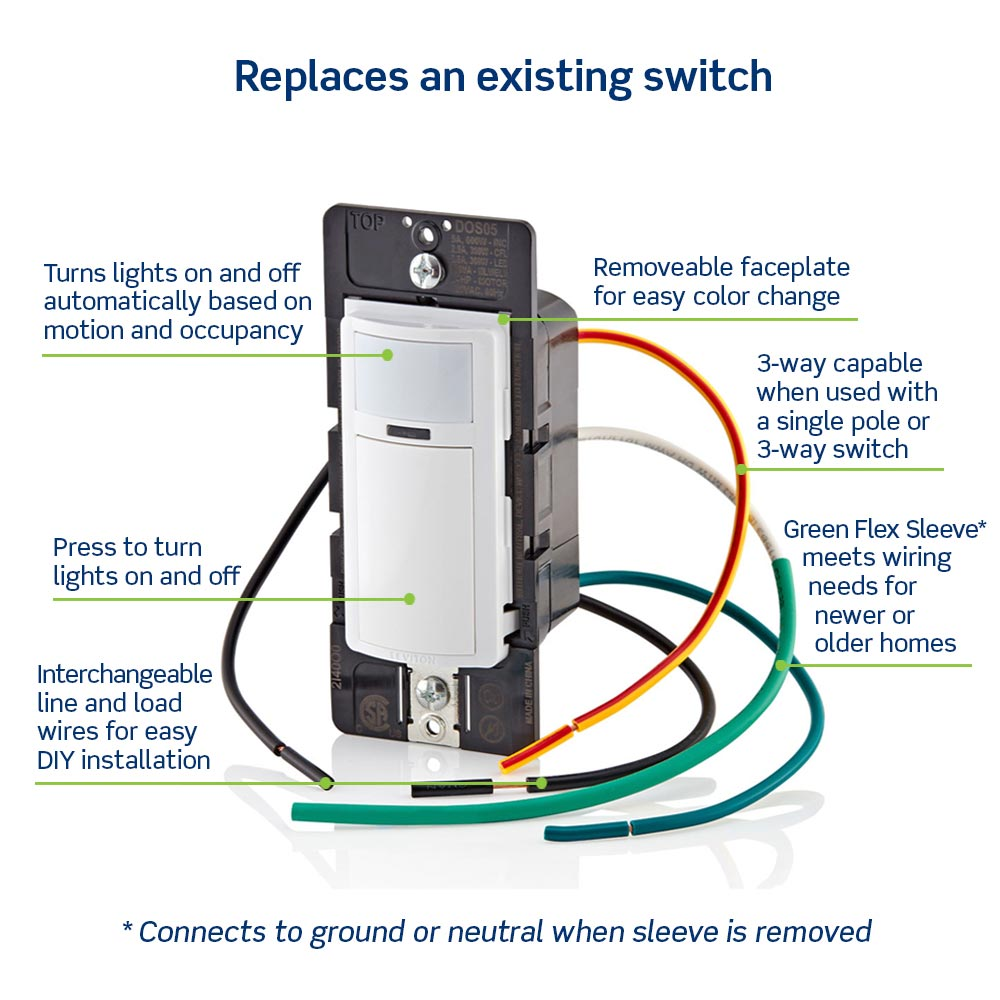

• Automatic-on occupancy sensor with PIR technology for hands-free lighting control

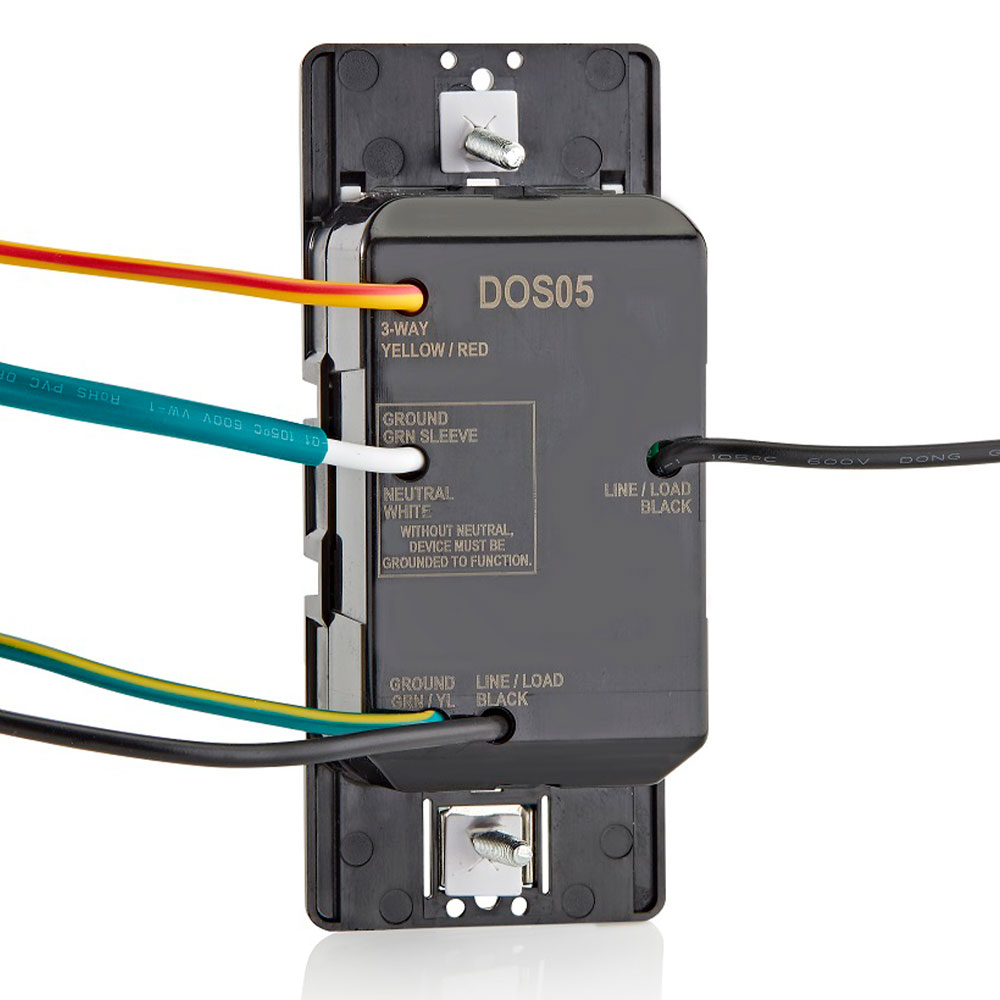

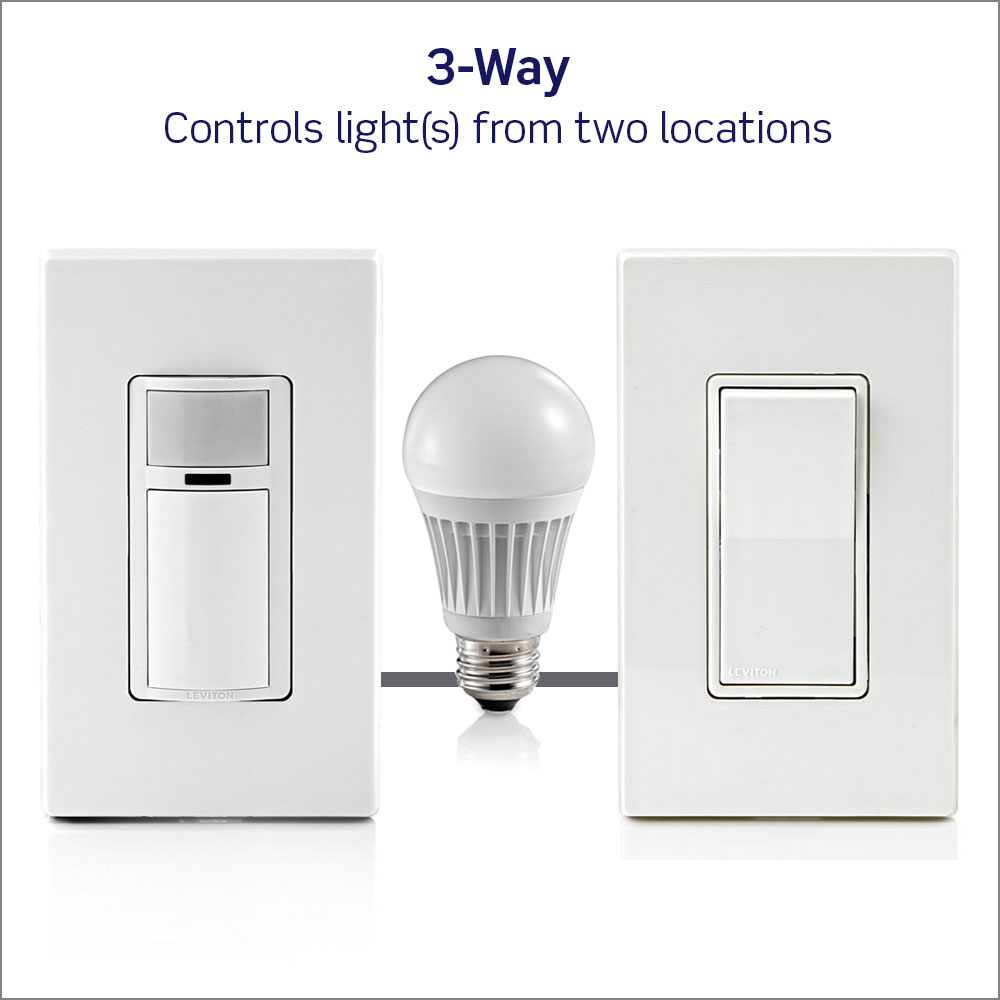

• Compatible with single pole or 3-way switch configurations

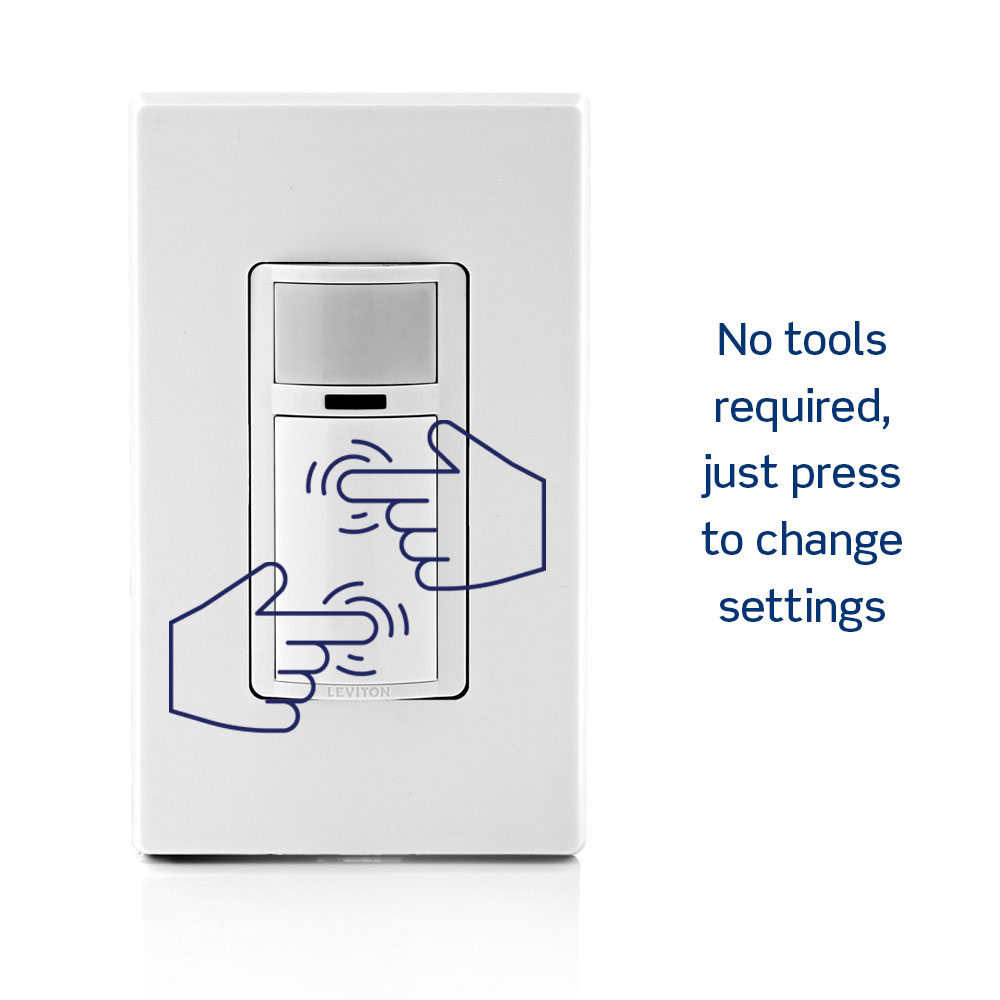

• Adjustable sensing range and time delay settings to customize coverage and operation
• Meets 2019 California Title 24, Part 6 vacancy control device requirements

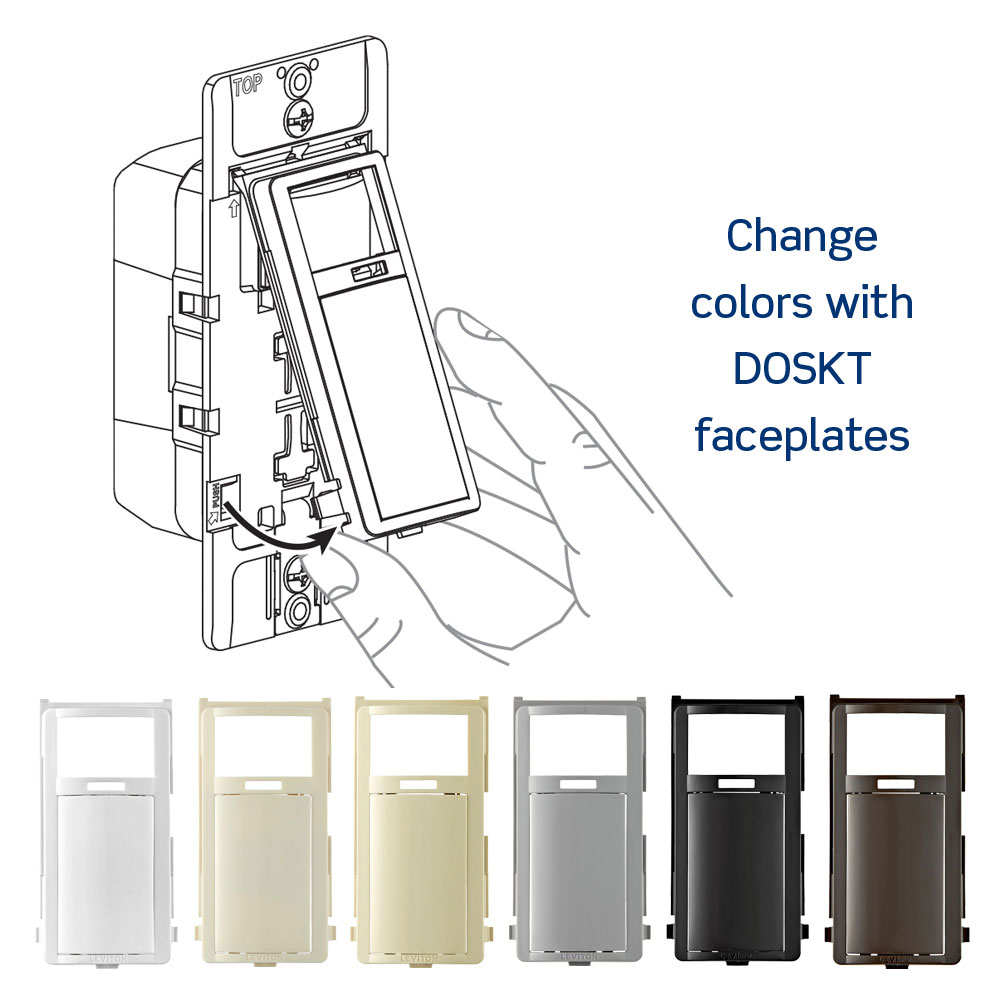

• Includes multiple faceplates for color matching
• Energy-saving and convenience-enhancing solution for residential lighting applications such as mudrooms, closets, and garages
• Green LED indicator confirms sensor status and load condition
• Wallplate sold separately

Downloads & Links

• Levtion DOS05 DVS05 Instruction Sheet Spanish
• product-cleaning-instructions
• Levtion DOS05 DVS05 Instruction Sheet English
• Leviton-Sensors-Solution-Sheet
• JA-120420V3 Revise Sensor Product Bulletin 6pp - vFR (4)
• Leviton-Sensor-Buying-Guide
• Leviton-Decora-Motion-Sensor-Product-Bulletin
• Levtion DOS05 DVS05 Instruction Sheet French
